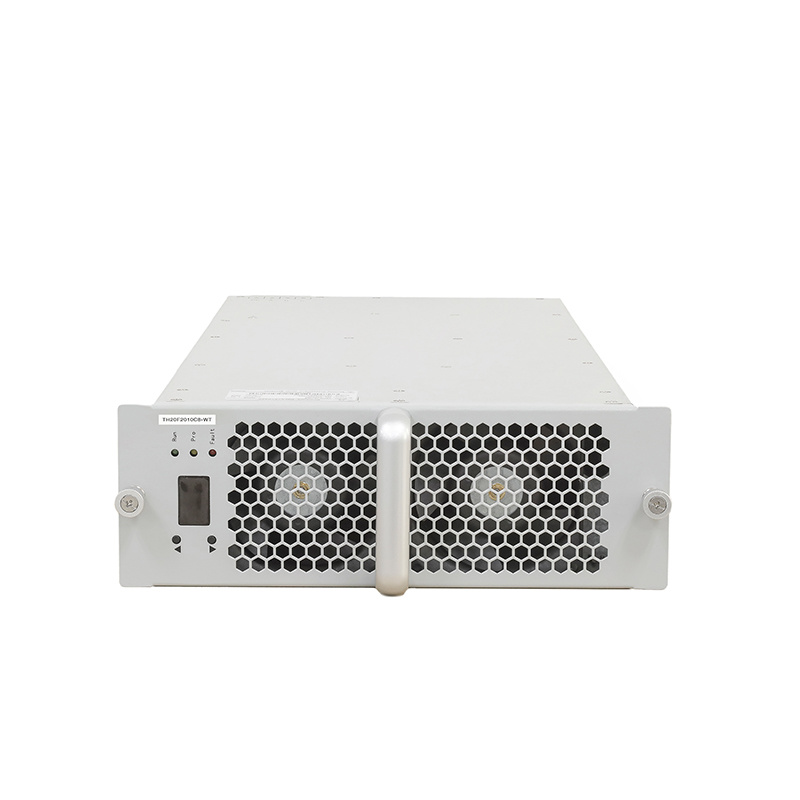

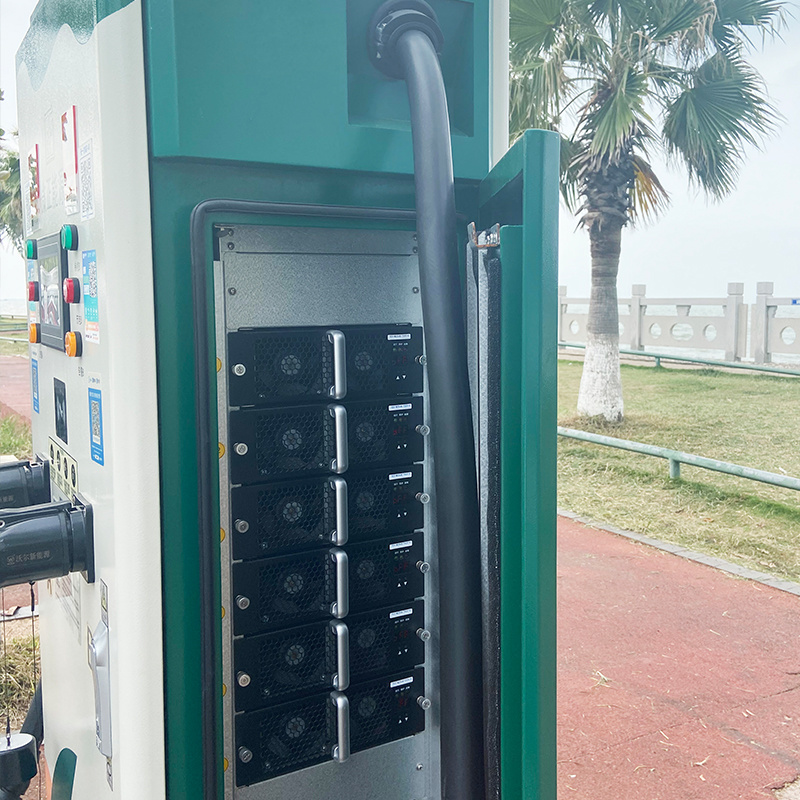

TH20F2010C8-WT is one kind of AC/DC module with high efficiency and high power density specially designed by Tonhe for EV charging station. This product is three-phase four-wire system (three-phase +PE) input, supports 285VAC-475VAC input, and the maximum power is 20KW(constant power range is 100-200VDC).
Constant power range: 100-200VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion:≤5%
Ultra-wide operating temperature: -40℃-75℃
High conversion efficiency: peak efficiency ≥95%
| Model No. | TH20F2010C8-WT | |
| Ac input | Input voltage | Rated voltage 380VAC, 3W+PE, operating voltage range 285-475VAC |
| Input frequency | 50/60Hz±10% | |
| Input power factor | ≥0.99 | |
| Input overvoltage protection | 490±5VAC | |
| Input undervoltage protection | 270±5VAC | |
| Dc output | Output rated power | 20kW |
| Output voltage range | 20~200VDC | |
| Output current range | 0.5~200A | |
| Output Constant Power Range | 100-200VDC | |
| Peak efficiency | ≥95% | |
| Soft startup time | 3~8S | |
| Short circuit protection | Self-rollback protection | |
| Voltage regulation accuracy | ≤±0.5 | |
| THD | ≤5% | |
| Current regulation accuracy | ≤±1% | |
| Current sharing imbalance | ≤±5% | |
| Working environment | Working temperature | -40℃~+75℃ |
| Relative humidity | ≤95%Condensation free | |
| Altitude | ≤2000m, derating above 2000m | |
| Product characteristics | Cooling Method | Fan cooling |
| Standby power consumption | ＜10W | |
| Communication protocol | CAN | |
| Address setting | Digital screen display, button operation | |
| Dimension | 460mm x 218mm x 84mm (D x W x H) | |
| Weight | ≤13kg | |
| MTBF | 500000hour | |
