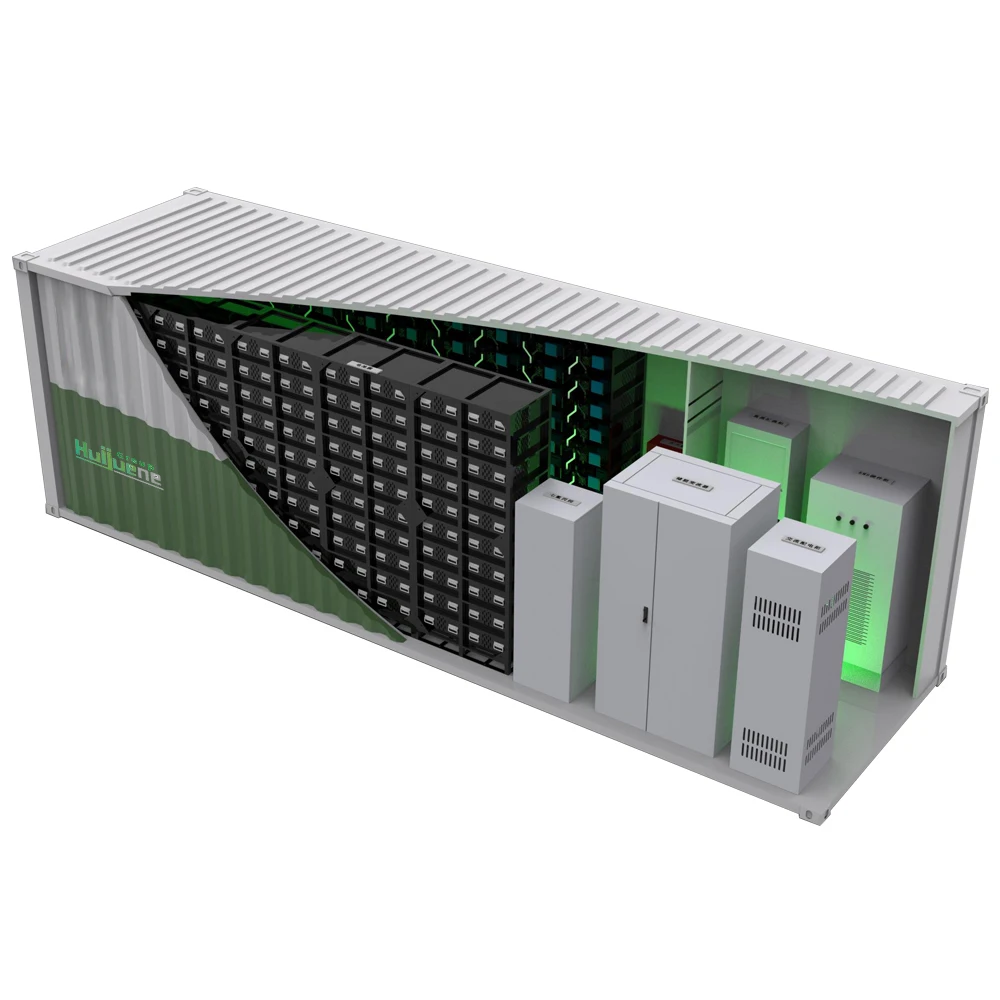

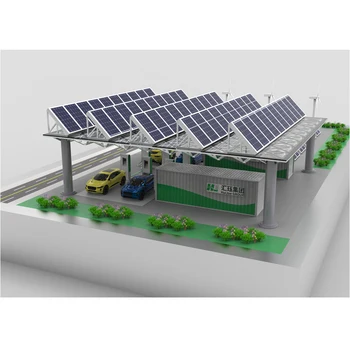

1000KW 1MW Power Conversion System Bidirectional Inverter with Isolation Transformer for Energy Storage Microgrid ess System

Huijue Inc.

ShangHai China

Summary

No.1601039058163

$150000.00

Specifications

Capacity:

2MWh

1MWH

System Voltage Range:

1000~1500 V

System Energy Range:

1-5 MWh

Container Size:

20 ft

40 ft

INQUIRY

Description Download

Key attributes

Place of Origin

Jiangsu, China

Battery Type

LiFePO4

Brand Name

Model Number

HJ-ESS-EPSL2 / HJ-ESS-EPSL4-1

Dimension (L*W*H)

customized

Weight

35t

Communication Interface

CAN/RS485

Communication Port

CAN/RS485

Grid connection

Hybrid grid

Cooling

Liquid Cooling

Product name

energy storage container

Model

HJ-500KWH/1MWH/2MWH

Application

Industrial/Commercial

Energy storage capacity

1-5MWh

Rated voltage

1228.8V

Rated power

500KW/1MW/2MW

OEM

Acceptable OEM Service

Grid connection

Off grid, Hybrid grid, On grid

BMS

Active equalization BMS, 2 level

IP Rating

IP54

Packaging and delivery

Selling Units

Single item

Single package size

50X40X50 cm

Single gross weight

30.000 KG

00:17

01:25

product model	HJ-ESS-EPSL2	HJ-ESS-EPSL4
Battery parameters
Battery type	lithium iron phosphate	lithium iron phosphate
battery capacity	3.2V/280Ah	3.2V/280Ah
System battery configuration	10P384S	20P384S
System rated capacity	3440KWh	6880KWh
System rated voltage	DC 1228.8V	DC 1228.8V
System voltage range	DC1075.2~DC1363.2V	DC1075.2~DC1363.2V
Charge and discharge rate	0.5C	0.5C
Battery cooling method	liquid cooling	liquid cooling
system parameter
size	20 Foot container	40 Foot container
weight	35t	70t
protection level	IP54	IP54
Anti-corrosion grade	C3	C3
Temperature control scheme	liquid cooling	liquid cooling
Fire scheme	Perluorohexone + Water fire protection (optional)	Perluorohexone + Water fire protection (optional)
protocol	CAN/MODBUS/IEC104/IEC61850	CAN/MODBUS/IEC104/IEC61850
communication interface	CAN2.0/RJ45/RS485	CAN2.0/RJ45/RS485

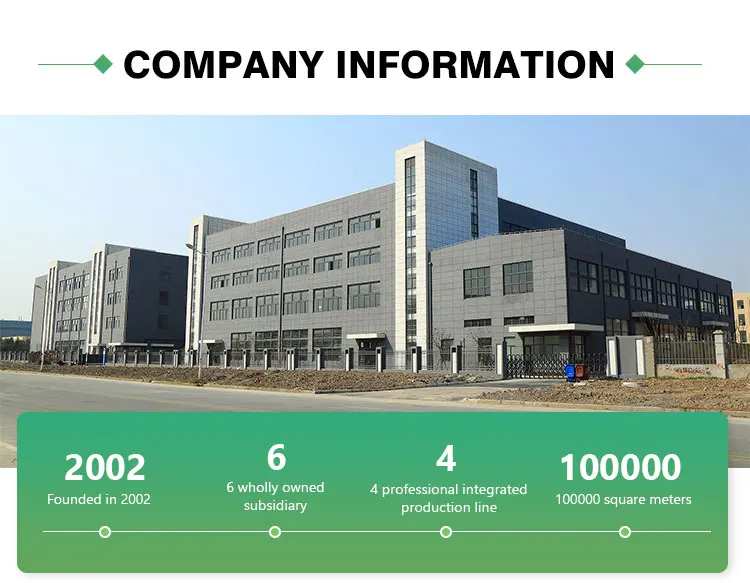

Huijue Group was founded in 2002, is in the field of energy storage system in the leading technology innovation company, to provide customers with the optimal energy storage system solutions and safe and efficient storage full range of products, covering household energy storage system, industrial and commercial energy storage system and site energy storage system.

Huijue Group headquarters is located in Shanghai free trade zone lingang new area, has six wholly owned subsidiary, in Jiangsu Haian and Shanghai Fengpu production base and research and development center, the total area of 100000 square meters, more than one thousand employees, has four professional integrated production line, with senior technical team and efficient supply chain system, capacity and performance ability fully guarantee. Sales and service outlets are all over cities across the country, and the products are exported to many countries and regions around the world. Smart energy solutions have been widely used in government, transportation, education, operators and other industries. Over the years, won the "high-tech enterprise" and "innovative enterprise" and other honorary certification.
