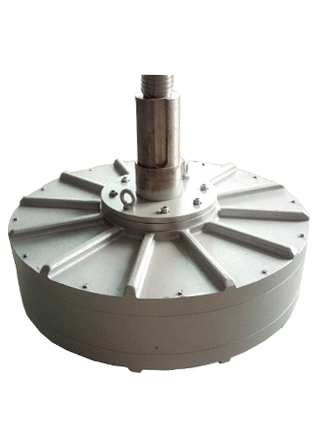

| Model | AMG10KW-770 |
| Rated?power(kw) | 10 |
| Rated?speed(rpm) | 100 |
| Rated?voltage(vdc) | 400 |
| Rated?Current(A) | 14.5 |
| Efficiency | >90% |
| Resistance?(Line-Line) | - |
| Winding?type | Y |
| Insulation?Resistance | 100Mohm?Min(1500V?DC) |
| Leakage?level | <5?ma |
| Start?torque(N*M) | <1 |
| Phase | Three?phase |
| Structure | outer?rotor |
| Stator | coreless |
| Rotor | Permanent?magnet |
| Gen.?Diameter(mm) | 770 |
| Gen.?Length(mm) | 590 |
| Gen.?Weight(kg) | 245 |
| Shaft.?Diameter | 85 |
| Housing?Material | Aluminum?(?Alloy?) |
| Shaft?Material | Steel |
RPM and voltage can be customized, please send us your specific requirement.
