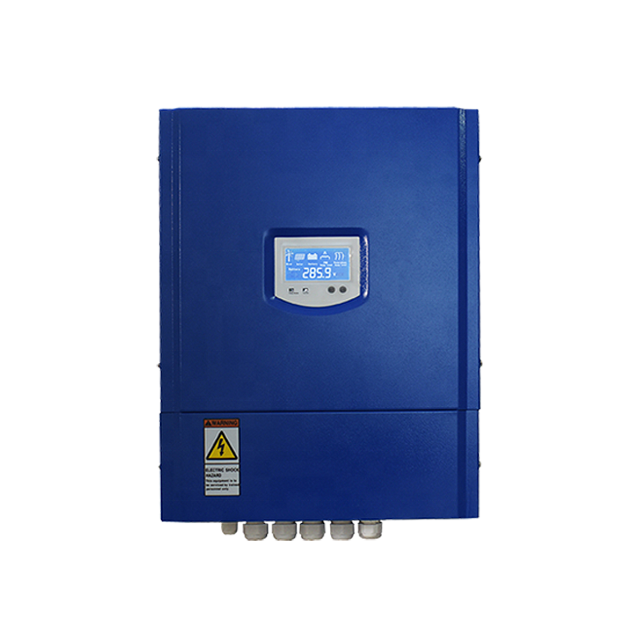

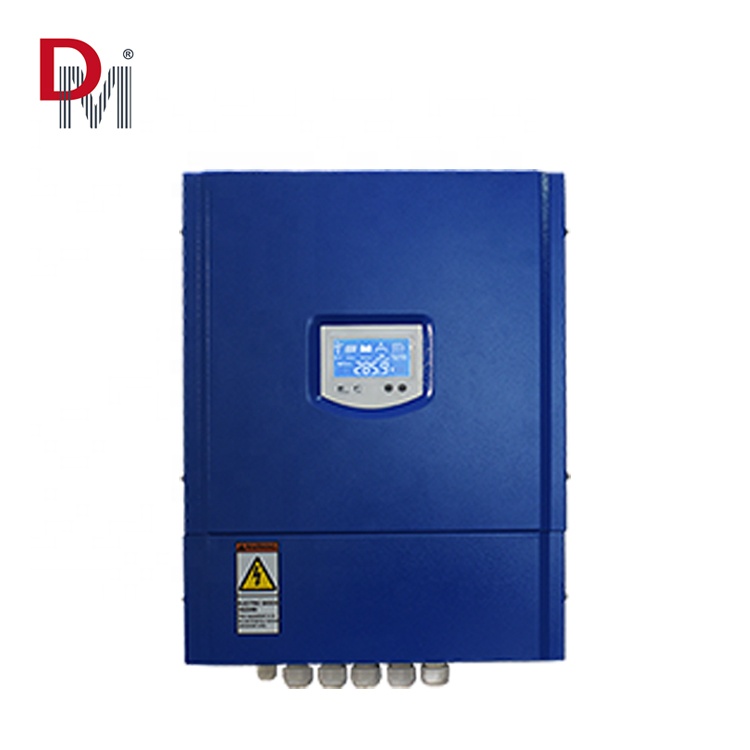

Type | FKJ-GT5KW | FKJ-GT5KW | FKJ-GT20KW | ||||
Wind turbine rated power | 5KW | 5KW | 10KW | ||||
Wind turbine Max. power | 10KW | 10KW | 20KW | ||||
Wind turbine rated voltage | AC220V | AC380-400V | AC380-400V | ||||
Solar panels power(optional) | 1.5KW | 1.5KW | 10KW | ||||
Function | Rectifier,control,DC output | ||||||
Automatic protection function | Over voltage protection, network electric cut off protection, regulated supply output, arrester | ||||||
Manual function | Manual brake, reset, emergency switch | ||||||
Display mode | LCD | ||||||
Display content | Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power. | ||||||
PWM constant voltage | ≥320dc | ≥520dc | ≥520dc | ||||
Wind turbine 3-phase dump load voltage | 350±5Vdc | 540±5Vdc | 540±5Vdc | ||||
Wind turbine 3-phase dump load time-lapse | 12-20 min | 12-20 min | 12-20 min | ||||
Solar panels fuse | 5A | 5A | 20A | ||||
PWM dump load fuse | 25A | 16A | 32A | ||||
Fuse of DC output | 32A | 20A | 40A | ||||
Work environment temperature | -30-60°C | ||||||
Relative humidity | <90% No condensation | ||||||
Noise (1m) | <40dB | ||||||
Degree of protection | IP20(Indoor) IP65 (Outdoors) | ||||||
Cooling method | Forced air cooling | ||||||
Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | ||||||
Temperature compensation(optional) | -4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C | ||||||
Size of the controller (mm) | 510*360*240 | 510*360*240 | 580*400*240 | ||||
Weight of the controller | 18Kg | 18Kg | 23Kg | ||||
Size of the dump load (mm) | 600*450*380 | 600*450*380 | 690*450*530 | ||||
Weight of the dump load | 28Kg | 28Kg | 35Kg | ||||
