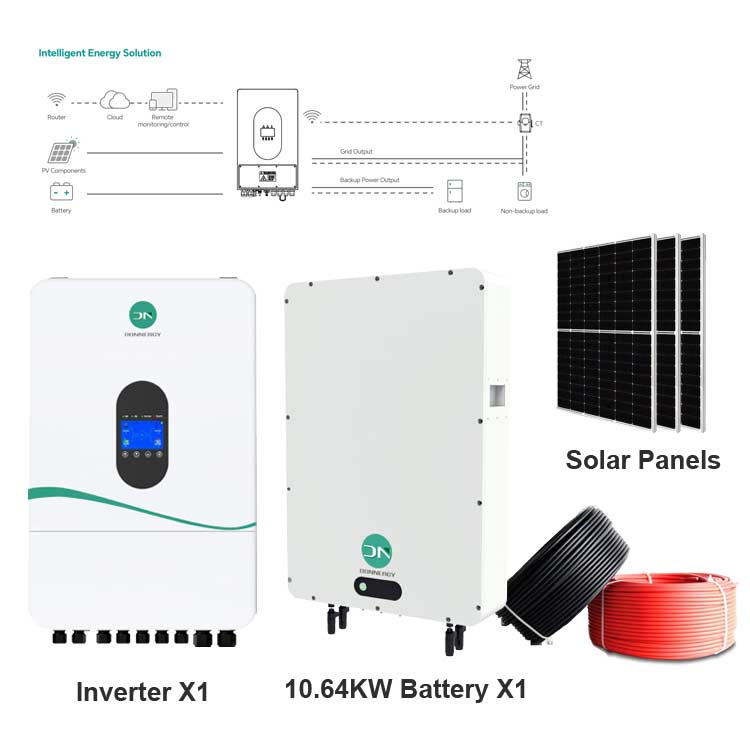

This solar power system include 10KW Inverter Multiple operating modes, on-grid, off-grid, Single Phase, 2 MPPT, 97.60% efficiency. Battery more than 6000 cycles, IP65 protection level, easy install. Solar Panel is 410W, 37.23V length 1722mm，hight 1134mm, 21.5Kgs feature, and stronger resistance to hot spots and overheating, maintaining high reliability.
It supports on grid and off grid hybrid modes, and is very suitable for off-grid power grids. It can provide stable power output for small fishponds, orchards, and breeding bases.
Rated AC output power(W) and Rated output power UPS(W): 10000
Rated PV Input Voltage (V): 370V (125V~500V)
Start-up Voltage(V): 125V
Number of MPPTS: 2
Maximum Efficiency: 97.60%
Grid Type: Single Phase
Maximum Charging Current (A): 220
Maximum Discharge Current (A): 220
Weight (kg): 24
Cabinet size (mm): 330W×580H×232D (Excluding Connectors And Brackets)
Protection Level: IP65
Nominal capacity: 10.64kWh
Standard charge: 90A
Rated Capacity: 104Ah
Nominal Voltage: 3.2V
Standard Charge Cut-off Voltage: 13.65V
Standard Discharge Cut-off Voltage: 2.5V
Dimension: 52.3±0.5(T) 148.4±0.6(W) 119±0.6(H)mm
Weight: 19.3±0.1kg
Class of protection: IP65
Maximum power (Pmax/W): 410W
Dimensions: 1722 x 1134 x 30mm
Efficiency: 21%
Cell Type: Monocrystal 182
No. of Cells: 108(6×18)
Net Weight: 21.5Kgs
Open Circuit Voltage-Voc(V): 37.23
Short Circuit Current-lsc(A): 14.00
Maximum Power Voltage (Vmp/V): 30.95
Maximum Power Current (Imp/A) 13.25
Warranty: 10 Years
Donnergy intelligent energy system support Dynamically adjust the source of energy use, give priority to off-grid mode and economic mode, and maximize economic benefits.
Sure, We provide 300-550W solar panels, fully support customized requirements.
