Summary
No.1601216876294
More
$2266.00
Specifications
Output voltage:
AC 120V / 240V
AC 120V/220V
AC 100/120V
Capacity:
200 AH
Color:
orange
System Voltage:
51.2 V
Energy:
10 kWh
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System
  • 10Kwh Lifepo4 Battery 51.2v 200ah Lithium Ion Battery Home Energy Storage off Grid System

Key attributes

Industry-specific attributes

Output Power Range
5~10 kWh
Grid connection
Off grid

Other attributes

Battery Type
LiFePO4
System Type
Wall-mounted
Model Number
hp-lft-006
Brand Name
YIY
Place of Origin
Zhejiang, China
Type
Split
Communication Port
CAN, rs485
Protection Class
IP21

Product descriptions from the supplier

Advantages of YIY Solar Off Grid Solar Energy Systems
Cost-friendly: Solar energy is free solution, so you won’t have a hefty electricity bill and there’s minimal maintenance required.
Eco-friendly: Solar energy systems rely on solar power, so you’re doing your part for the environment.
Ideal for areas with frequent power outages or no power: If you live in an area that experiences frequent blackouts,off-grid solar system are a great choice as you’re generating your own electricity.
Great for Emergencies: If you experience a sudden blackouts, you can take comfort knowing that you’ve got backup power in case of an emergency.
Easy to Maintain: Off-grid solar systems are sturdy and don’t require much maintenance, all you need to do is occasionally clean the body and change the battery bank.
Specification
 LFP 5.12/10.24kWh LiFePO4 Battery Pack
Specification
Model
LFP12400H
LFP24200H
LFP48100H
LFP24400H
LFP48200H
Rated Voltage
12.8V
25.6V
51.2V
25.6V
51.2V
Rated Capacity
400Ah
200Ah
100Ah
400Ah
200Ah
Rated Energy
5.12KWH
10.24KWH
Cell Configuration
4S4P
8S2P
16S1P
8S4P
16S2P
Battery Cell
3.2V100AH 16PCS
3.2V100AH 32PCS
Life cycles
6000 cycle @ 80%DOD,25°C
Standard Charge
Operation temperature range ©charging
0~60°C
Rated charge voltage
13.8±0.1V
27.6±0.2V
55.2±0.4V
27.6±0.2V
55.2±0.4V
Max charge voltage
14.2±0.1V
28.4±0.2V
56.8±0.4V
28.4±0.2V
56.8±0.4V
Overcharge protection
14.6±0.1V
29.2±0.2V
58.4±0.4V
29.2±0.2V
58.4±0.4V
 Allowed MAX charge current
440A 30s
220A 30s
110A 30s
440A 30s
220A 30s
Peak charge current
480A 5s
240A 5s
120A 5s
480A 5s
240A 5s
Rated charge current
400A
200A
100A
400A
200A
Recommend charge current
<400A
<200A
<100A
<400A
<200A
Standard Discharge
Operation temperature range ©discharging
-35~60°C
Output Voltage Range
10-14Vdc
20~28Vdc
40~56Vdc
20~28Vdc
40~56Vdc
Recommend Working Range
11.5~13.5Vdc
23~27Vdc
46~54Vdc
23~27Vdc
46~54Vdc
Discharge Cut-off voltage
10V
20V
40V
20V
40V
Allowed MAX discharge current
440A 30s
220A 30s
110A 30s
440A 30s
220A 30s
Peak discharge current
480A 5s
240A 5s
120A 5s
480A 5s
240A 5s
Rated discharge current
400A
200A
100A
400A
200A
Recommend discharge current
<400A
<200A
<100A
<400A
<200A
Mechanical Characteristics
Dimension H*W*D
516*550*187mm
850*550* 187mm
Shipping H*W*D
616*614*290mm
1000*670*400mm
Weight(N.W.)
48KG
100KG
Weight(G.W.)
53KG
100KG
Communication
RS485
For LCD remote

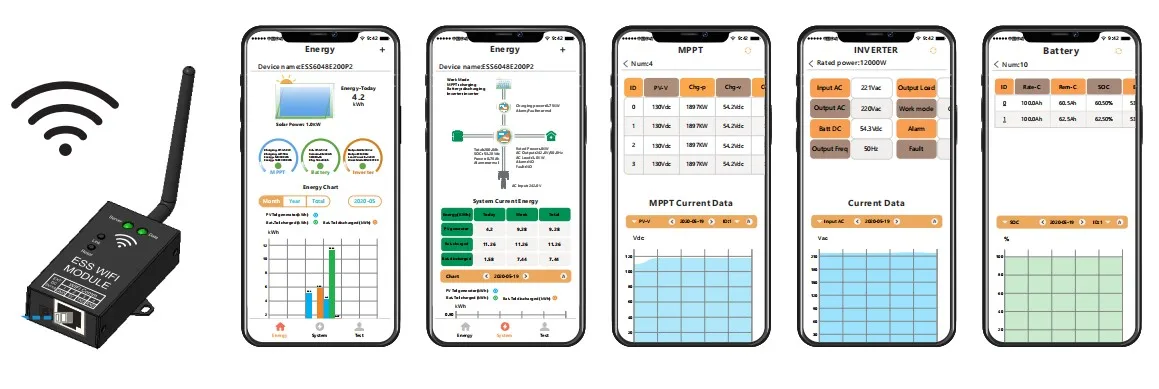

CAN
PC control and monitor
Storage and Transportation Requirements
 Storage Temperature
Less than 1 month
-20~35°C
Less than 6 month
-10-30°C
Storage Humidity
45~75%RH
SOC
Storage
60~75% SOC
Transport
45~55% SOC
Products Description

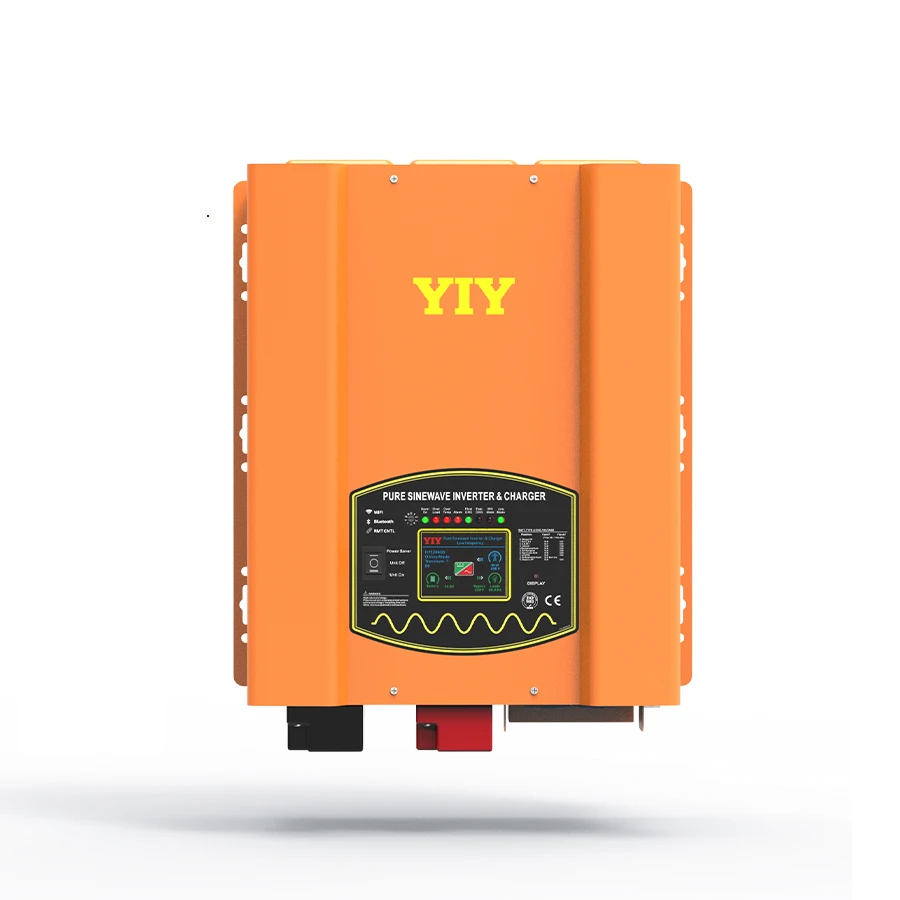

Off Grid Inverter Features
* High Output Capacity up to 18 KW,single
phase.
* Ultra Low THD,Typically 3%Under Full Linear
Load (battery low).
* Battery Temperature Sensing For Increased
Charging Precision.
* Charging current up to 120Amp, 0%-100%
adjustable.
* Auto Gen Start Function.
* MPPT Solar Charger Controller Available.
* BTS Seletable.
* GFCI Seletable

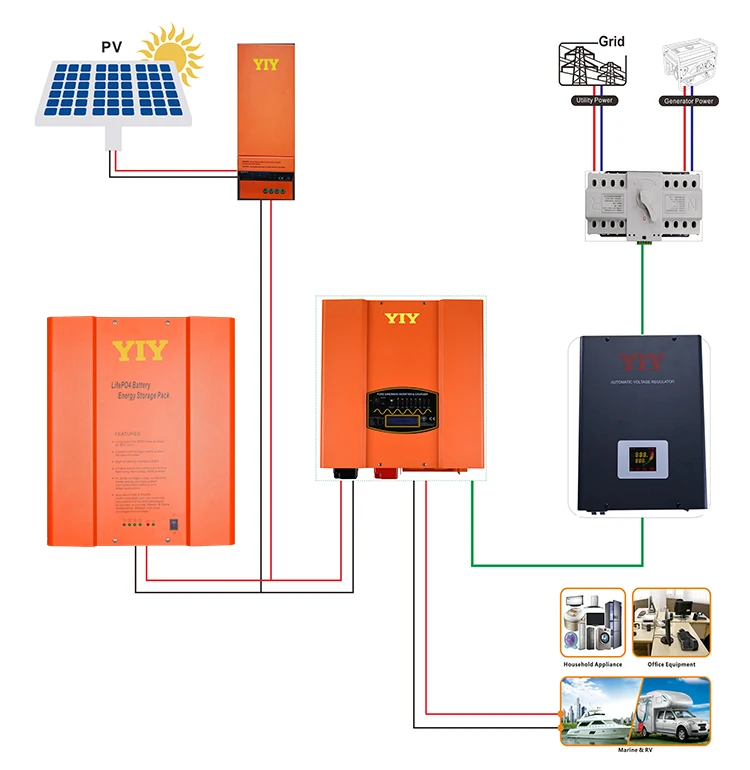

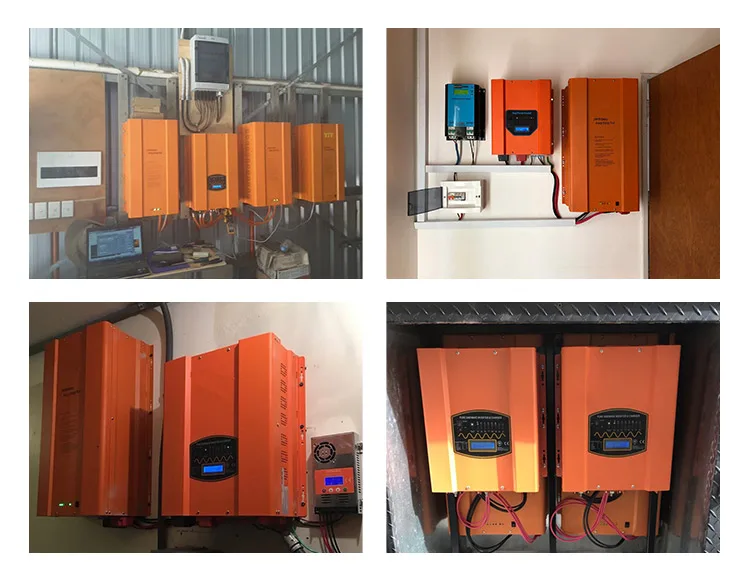

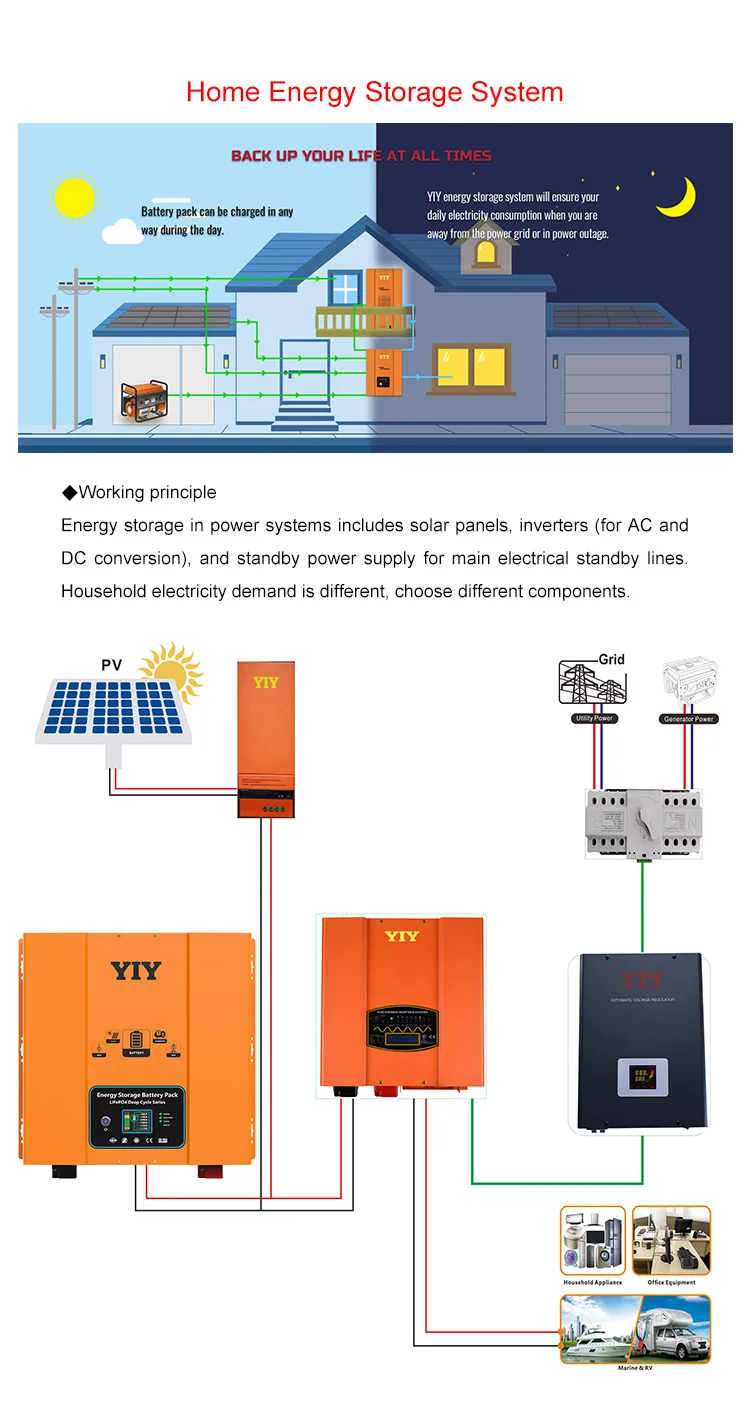

Application

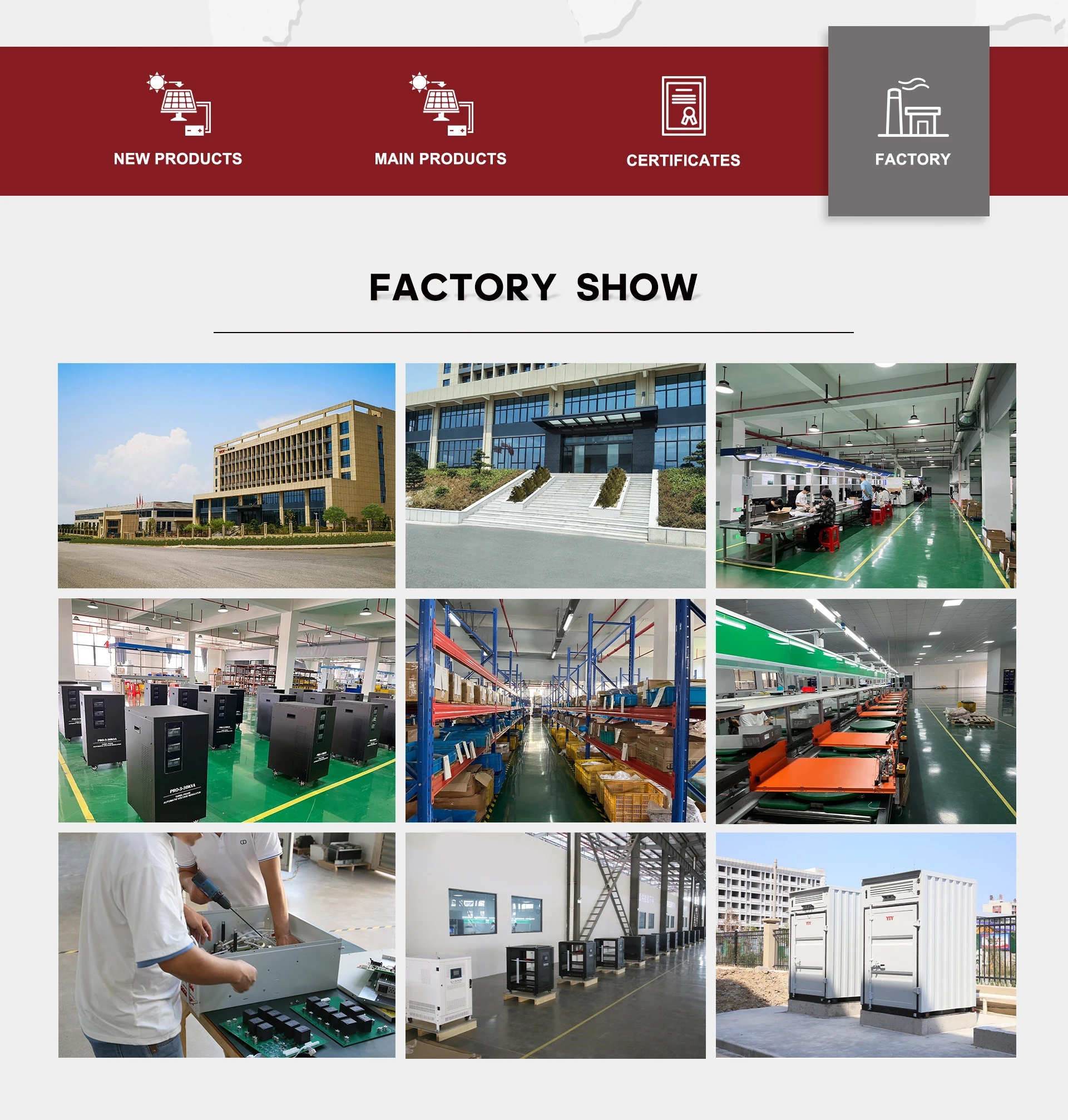

Company Profile
FAQ
Q1: What are there included for a battery or pack, may I buy charger from you? A1: Battery pack with bulit-in BMS , you also can buy customzied AC charger.Q2: What's the sample lead time, and bulk order delivery. How long I can get it? A2: Fast delivery: If small quantity, can be finished in 15-30 days days after payment, bulk in 30-45 days depends on the quantity. Q3. What is your warranty? A3: We offer 3 years warranty for all our battery pack for different situation. We ensure at least 6000 cycle life for the LiFePO4 battery pack, which means, after 6000@80% DOD, there will still around 80% capacityt left at ideal tempreature 25 ℃. Normal 1 time charge and discharge everyday.
