Applications
Solar System (off-grid) and UPS system
Solar Pump
Firefighting equipment standby power supply
Medical treatment equipment, Alarm system
Telecommunication system,, Railway station,
Ship Equipment, Military Equipment
Control systems, Emergency lamp

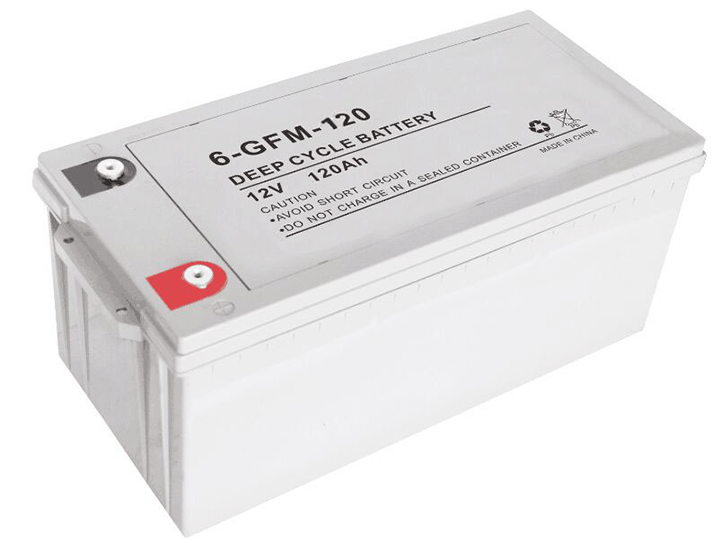

| Battery?Model | 6GFM-120?/?12V120Ah | |||
| Capacity?(25℃） | 10Hr(11.16A,1.80V) | 5Hr（20.4A,1.80V） | 3Hr(30A,1.80V) | 1Hr(66A,1.80V) |
| 120AH | 102AH | 90AH | 66Ah | |
| Dimensions | Length | Width | Height | Total?Height |
| 406mm | 174mm | 210mm | 212mm | |
| Approx?Weight | 35.6.00KG | |||
| Internal?Resistance | 6.8mΩ | |||
| Max?Discharge?Current | 1196A(3?Sec.) | |||
| Self?Discharge | ≤2%?per?month?(25℃） | |||
| Charge?Voltage?25℃ | Cycle?Use | Float?Use | ||
| 13.98V(-21mV/℃）,max?charge?current:20A | 13.38V(-21mV/℃） | |||
