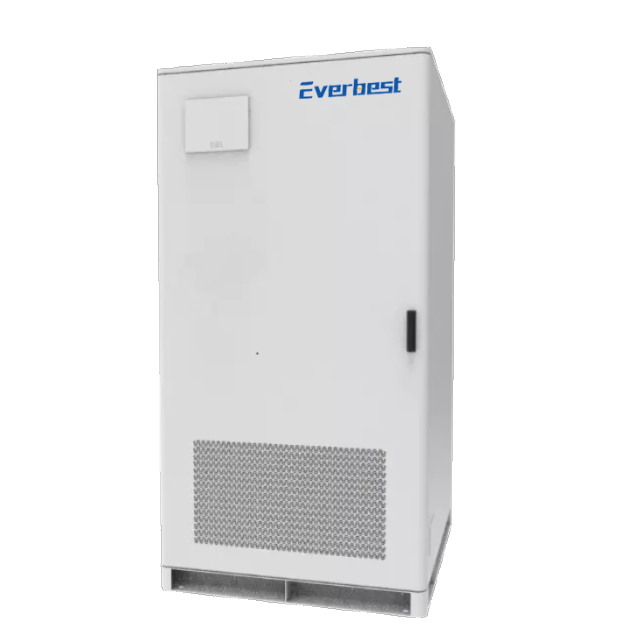

125kw 261Kwh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage

125kw 261Kwh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage

  • 125kw 261Kwh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage
  • 125kw 261Kwh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage
Summary
125kW 261kWh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage. High-efficiency liquid cooling ensures stable performance, 6000-cycle lifespan, 3.2V/314Ah LFP cells, 261kWh/418kWh scalable energy capacity. Ideal for C&I applications, peak shaving, backup power, and renewable integration with UL, IEC, CE, UN38.3 certifications. Robust 2.7T design, 1P260S/1P416S configuration, 400V/690V AC output.More
Specifications
Battery chemical type:
LFP
Cooling method:
Liquid Cooling
Rated Energy:
261kWh/418kWh
  • 125kw 261Kwh Liquid Cooled LFP Battery System for Commercial and Industrial Energy Storage


System parameter:

  • Cell Specification: 3.2V / 314Ah

  • Rated Rate: 0.5P
  • Cycle Life: 6000 times(25℃,80%EOL)
  • Combination Method: 1P260S/1P416S
  • Rated Energy: 261kWh/418kWh
  • Thermal Management Method: Liquid Cooling
  • Dimensions(W*H*D): 1340*2230*1070mm/1500*2560*1300mm
  • Output Voltage: 400V@AC/690V@AC
  • Weight: 2.7T/3.8T

  • Standards&Certifications: GB/T36276-2023, UL1973,UL9540A,IEC62619,IEC63056, IEC61000(CE-EMC), IEC62477-1(CE-LVD), UN38.3
