12V 24V 48V Lithium Lifepo4 Battery Pack

Zhengde Hanyuan (Shenzhen) Technology Co., Ltd.

Shenzhen,China

Summary

No.BP-LB-12100

12V 100Ah LiFePo4 phosphate charging lithium ion battery has the dimensions 13 X 6.73 X 8.7 inches, each unit weight 30 lbs. This is a scalable phosphate lifepo4 guangdong lithium ion battery, connecting up to 8 pieces in parallel if consumers need a large power capacity energy storage system.
With a BMS system to control safety, you no longer have to worry about the battery's abnormal problems. LFP 3.2V cell is an environment-friendly material, not only reduces your carbon footprint but also saves electricity bills.More

INQUIRY

Description Download

Parameter

NO	ITEM	SPEC
1	Rated Capacity	50AH	100AH	150AH	200AH	100AH	200AH
2	Rated Voltage	DC-12.8V				DC-25.6V
3	Rated Energy	640wh	1280wh	1920wh	2560wh	2560wh	5120wh
4	Operating Voltage	10V～14.6V				20V～29.2V
5	Max. Charge Current	50A	100A	100A	100A	100A	100A
6	Max. Discharge Current	70A	100A	100A	100A	100A	100A
7	Peak Current	140A	200A	320A	320A	300A	320A
8	Battery Type	LiFePO4 Battery
9	Discharge Temp	-20℃~60℃
10	Charge Temp	0℃~50℃
11	Dimension	L198mm* W166mm *H169mm	L328mm* W171mm *H215mm	L405mm* W180mm *H215mm	L520mm* W238mm *H220mm	L520mm* W238mm *H225mm	L520mm* W270mm *H220mm
12	Weight	6.5kg	13.6kg	18.5kg	23.8kg	19kg	39kg
13	Internal Resistance	≤30mΩ
14	Cycle Life	≥3000

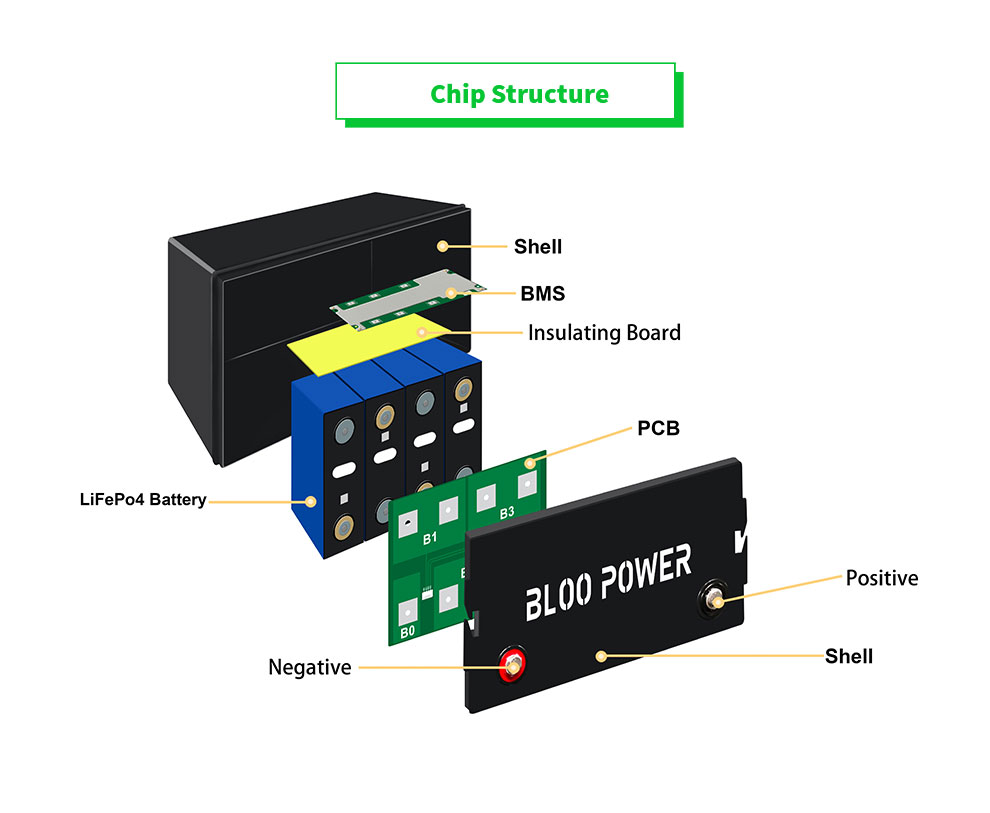

12v Lead Acid Replacement Battery Structure

1、Charing ways: solar panel systems, and generators
2、BMS function: monitoring and managing battery
3. Widely used in solar energy storage, UPS backup, yachts, cars...
4. Plug-and-play, very friendly for consumers
5. Cost a little bit more but offer excellent performance than lead-acid ones
