Offering 12 volt solar panel quotation consultation and free sample, it is one of the professional 12 volt solar panel manufacturers, welcome to wholesale cheap 12 volt solar panel made in China in stock at low price from us.

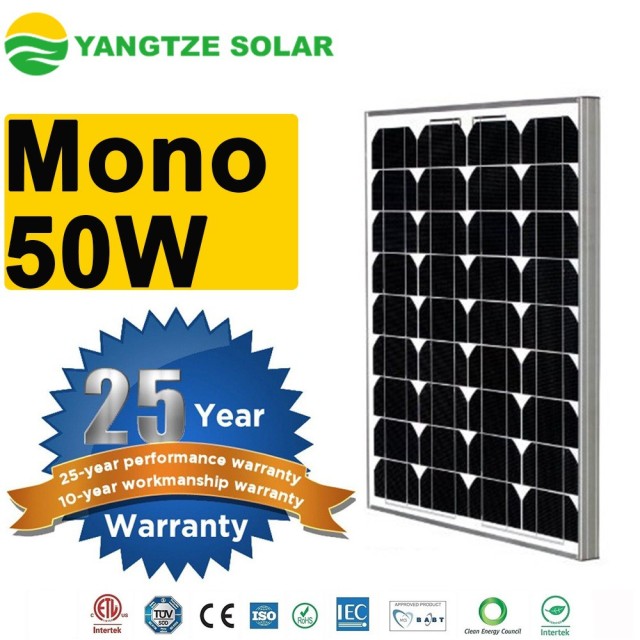

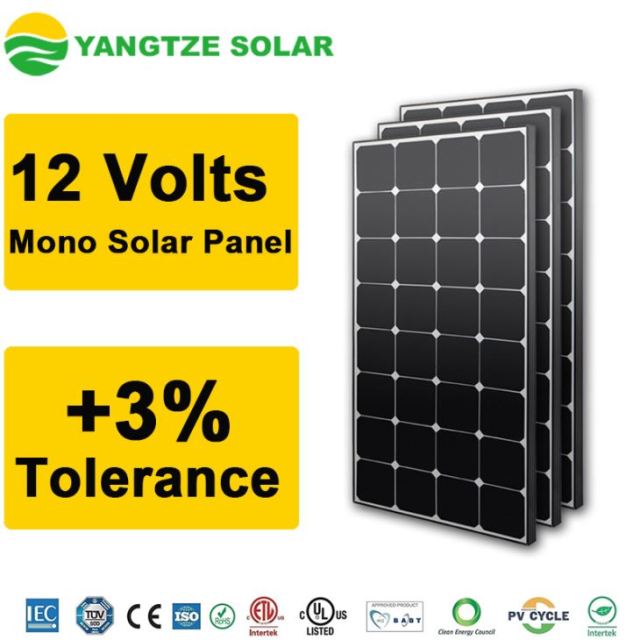

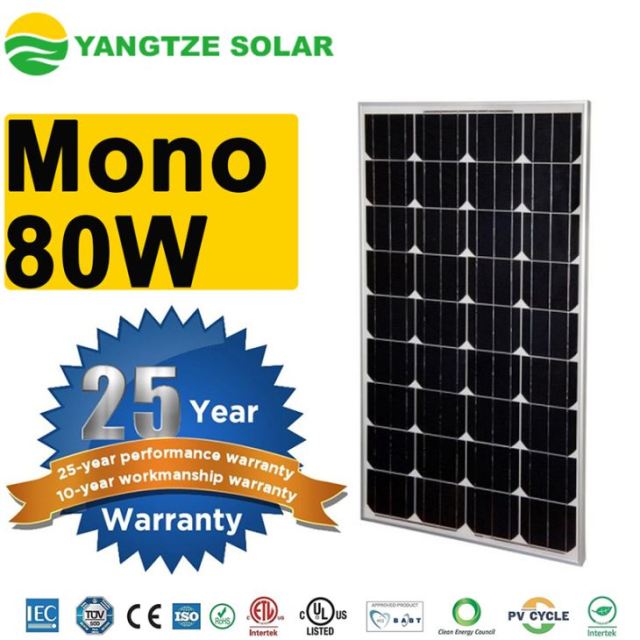

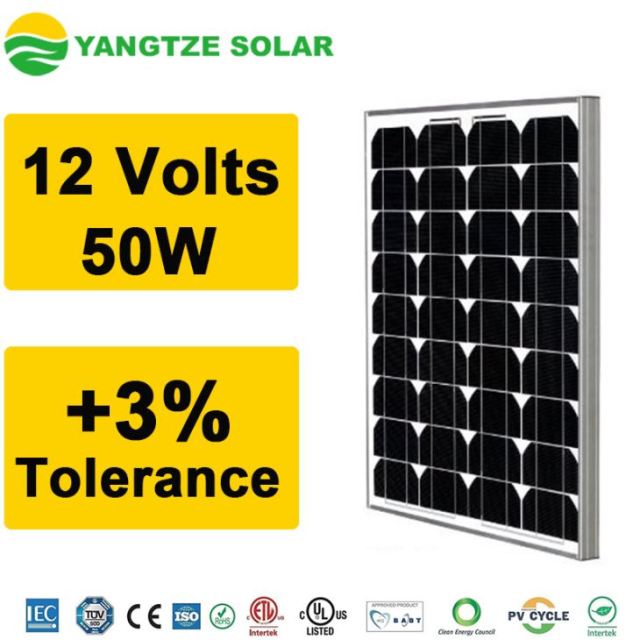

Yangtze monocrystalline 12 volt solar panel is made of high quality materials which have the key features as following:?
●10 years workmanship and material warranty , 25 years linear power output warranty?
●Certified by TUV ,CE , UL?
●High efficiency and reliable crystalline silicon solar cells?
●High endurance to different weather
●High transmission low iron tempered glass, strong resistance
●Anodized aluminum frame improves load resistance capabilities
The mono 12v solar panels maximum working power is from 5w to 80w . The 12 volt solar panel has many different applications as following :?
●RV and Caravan Applications?
●Countryside and remote areas

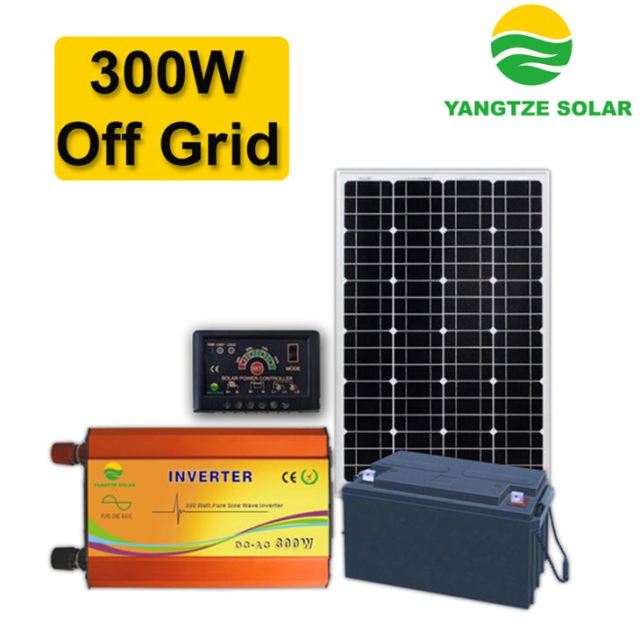

●Off grid power station applications
●Small-scale irrigation pumping pumps
●Street lighting system.
●Emergency communication system
●12V and 24V battery charging system
 | Key Features: ●Long lifespan more than 25 years ●Manufactured according to ISO9001 and ISO14001 ●High efficiency and reliable crystalline silicon solar cells? ●High endurance to different weather ●Anti-ageing EVA and excellent anti-climate back sheet. ●High transmission low iron tempered glass, strong resistance ●Anodized aluminum frame improves load resistance capabilities? Applications: ●Off grid power station applications ●Countryside and remote areas ●Railway signal? ●Small-scale irrigation pumping pumps ●Street lighting system. ●Emergency communication system ●12V and 24V battery charging system |
| Model | Peak ?Power? (Wp) | Maximu mPower Voltage? (Vmp) | Maximum ?Power Current? (Imp) | Open Circuit Voltage? (Voc) | Short ?Circuit Current ?(Isc) | Dimension | Weight? |
| YS5M | 5W | 17.4V | 0.29A | 21.8V | 0.31A | 330*170*20mm | 0.65kg |
| YS10M | 10W | 17.5V | 0.58A | 22.1V | 0.61A | 330*290*20mm | 1.2kg |
| YS15M | 15W | 17.4V | 0.87A | 21.8V | 0.94A | 330*353*20mm | 1.6kg |
| YS20M | 20W | 17.5V | 1.15A | 22.1V | 1.28A | 353*430*20mm | 1.95kg |
| YS25M | 25W | 17.5V | 1.43A | 21.8V | 1.54A | 520*353*20mm | 2.2kg |
| YS30M | 30W | 17.6V | 1.71A | 22.1V | 1.86A | 570*420*20mm | 2.9kg |
| YS35M | 35W | 17.4V | 2.05A | 21.8V | 2.25A? | 430*543*20/25mm | 3.2kg |
| YS40M | 40W | 17.5V | 2.28A | 22.1V | 2.54A | 540*543*20/25mm | 3.9kg |
| YS45M | 45W | 17.4V | 2.59A | 21.8V | 2.84A | 605*543*25/30mm | 4.5kg |
| YS50M | 50W | 17.6V | 2.85A | 22.1V | 3.09A | 605*543*25/30mm | 4.5kg |
| YS55M | 55W | 17.5V | 3.14A | 22.1V | 3.45A | 585*673*25/30mm | 4.7kg |
| YS60M | 60W | 17.8V | 3.37A | 22.4V | 3.68A | 585*673*25/30mm | 4.7kg |
| YS65M | 65W | 17.2V | 3.78A | 21.6V | 4.05A | 680*670*25/30mm | 5.8kg |
| YS70M | 70W | 17.4V? | 4.06A | 21.8V | 4.35A | 680*670*25/30mm | 5.8kg |
| YS75M | 75W | 17.5V | 4.29A | 22.1V | 4.59A | 770*673*25/30mm | 6.4kg |
| YS80M | 80W | 17.8V | 4.55A | 22.4V | 4.86A | 770*673*25/30mm | 6.4kg |
