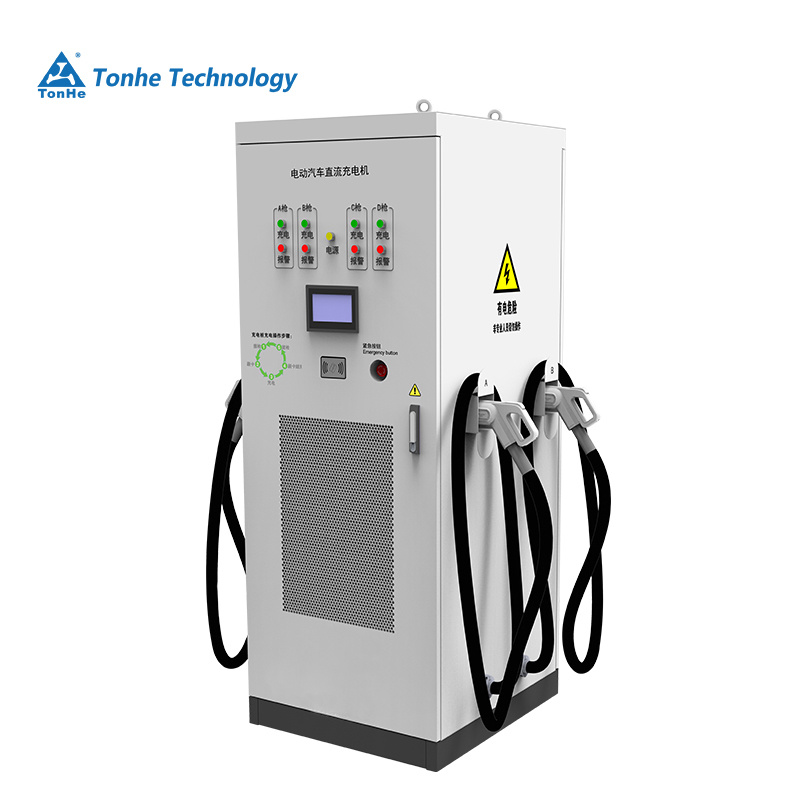

The off-board 160kW-240kW GB/T+CCS2 charger system for electric vehicles produced by Shijiazhuang Tonhe Electronic Technology Co., Ltd. is developed to meet the charging of different types of electric vehicles on the market, and has strong practicability. This product is a three-phase 380VAC input. It adopts the industry-leading resonant voltage type double-loop control resonant switching power supply technology and three-phase three-level power factor correction technology. It has the advantages of small size, light weight, high efficiency and high reliability. This product has strong environmental adaptability and can be used in most areas at home and abroad.
| Techdata sheet | |
Connector | CCS 2 or CHAdeMO or GB/T,Up to 4 charging guns |
Input Voltage | AC 380V±15% |
Input Frequency | 50Hz±10% |
Output Voltage Range | DC 200-750/1000V |
Peak Efficiency | ≥95% |
Power Factor | ≥0.99 |
Working Tempurature | -30℃~55℃ |
Acoustic noise level | ≤65dB |
Ingress Protection | IP54 |
External | Ethernet/4G |
Product Dimension | 800mm*2100mm*850mm（W*H*D） |
Standard | GB/T18487、GB/T20234、GB/T27930、 NB/T33001、NB/T33008 |
