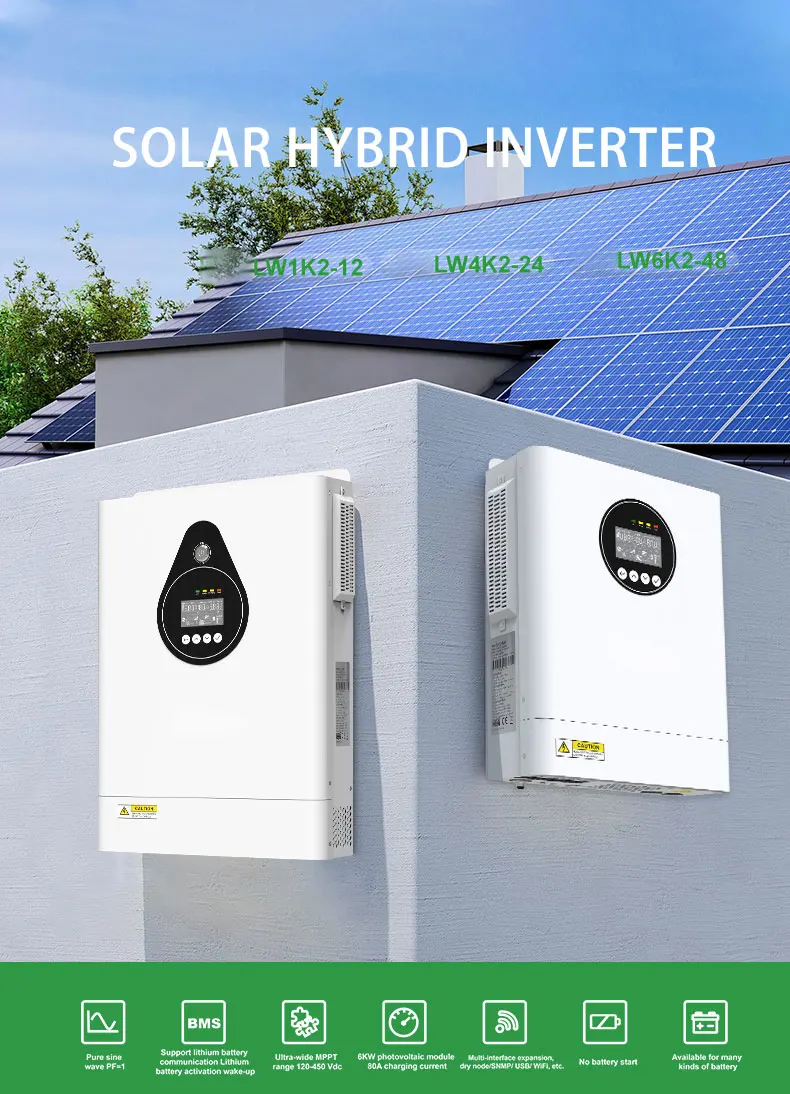

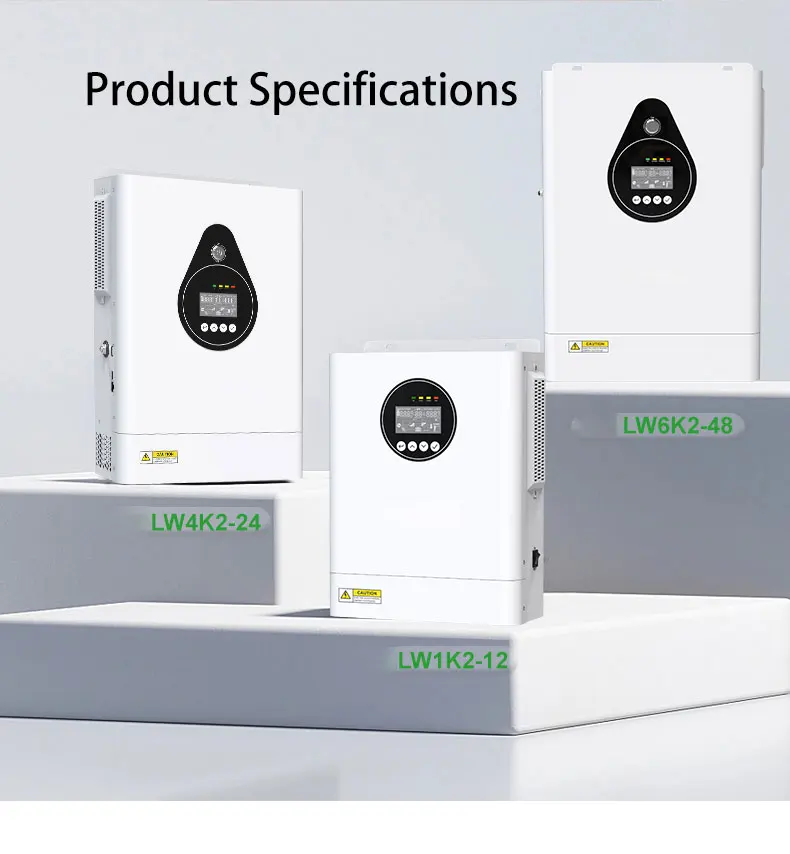

Type | QN-LW1K2-12 | QN-LW3K6-24 | QN-LW5K5-48 | ||
Rated input voltage | 208/220/230/240;L+N+PE | ||||
Voltage range | 90~280±3(normal mode): 170~280±3(UPS mode) | ||||
Frequency | 50/60Hz | ||||
Rated power (KW) | 1.2 | 3.6 | 5.5 | ||
Peak power (KW) | 2.4 | 7.2 | 11 | ||
Power Factor (PF) | 1 | ||||
Conversion time (ms) | 10 (Normal mode) 10 (UPS mode) | ||||
Waveform | Pure sine wave | ||||
Overload capacity (battery mode) | 60s@102%~110% load; 10s@110%~130% load; 3s@130%~150% load; 0.2s@>150% load | ||||
Maximum capacity (battery mode) | 90%@12VDC | ||||

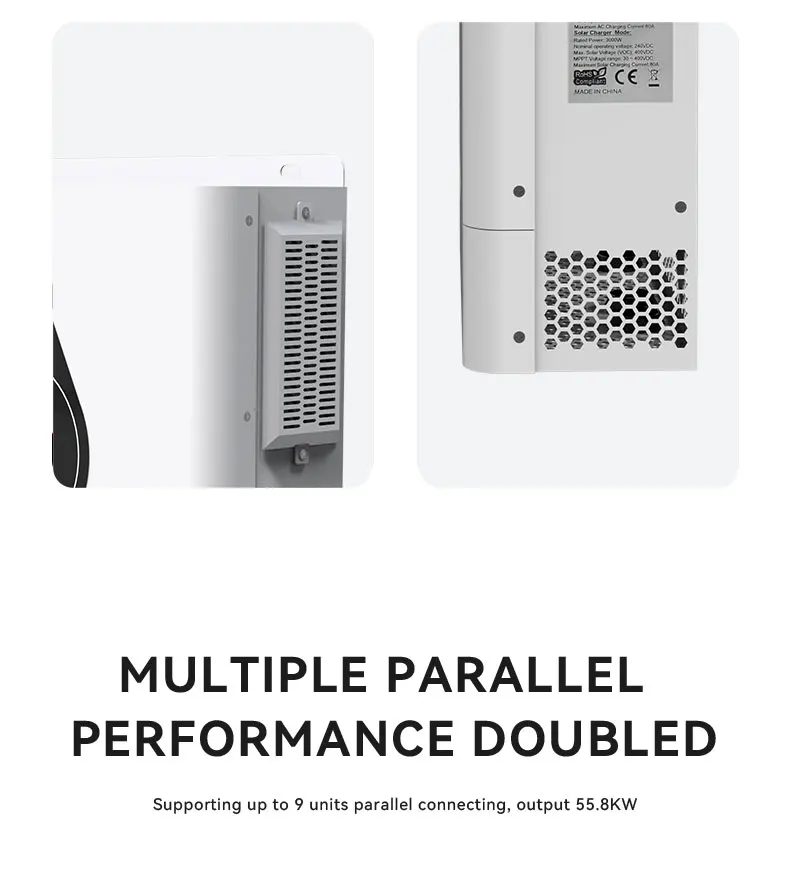

Parallel quantity | NA | ||||
Photovoltaic charging type | MPPT | ||||
Maximum photovoltaic input current/power | 14A/1000W | 18A/5000W | |||
MPPT operating voltage range (VDC) | 20~100 | 40~450 | |||
Maximum photovoltaic open circuit voltage (VDC) | 125 | 500 | |||
Maximum photovoltaic charging current (A) | 60 | 100 | |||
Maximum AC charging current | 40 | 100 | |||
Float charge voltage (VDC) | 13.8 | 27 | 54 | ||
Overcharge protection voltage (VDC) | 14.1 | 30.5 | 61 | ||
Battery Type | Lithium battery / Lead-acid battery | ||||
Interface | RS485/USB | RS485/RS232/USB/Dry Contact | |||
IP protection rating | IP20 | IP20 | IP20 | ||
Operating Temperature | -10°C~ 50°C | ||||
Relative humidity | 5%~95%(Non-condensing) | ||||
Storage temperature | -15 °C~ 60 °C | ||||
Operating altitude | 4000m | ||||

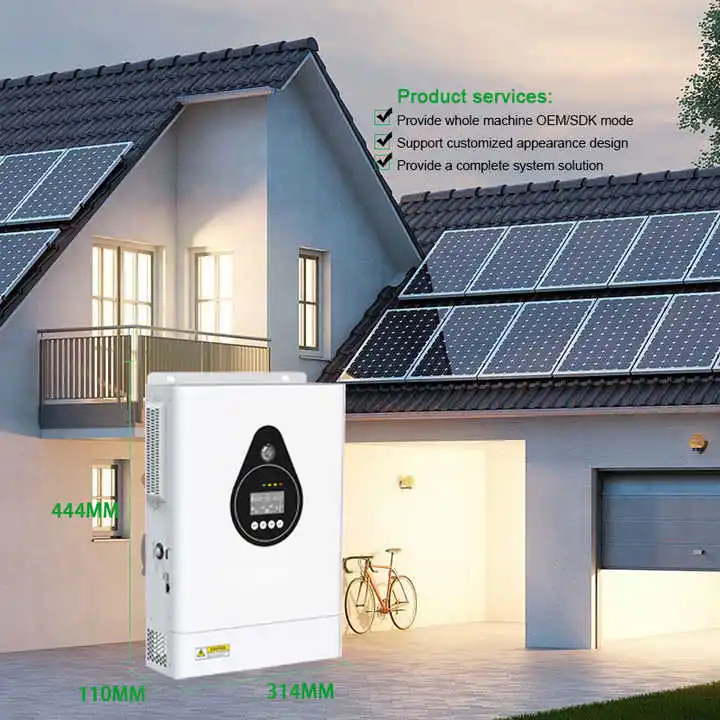

Size | 358*266*107mm | 444*314*110mm | 477*337*121mm | ||
