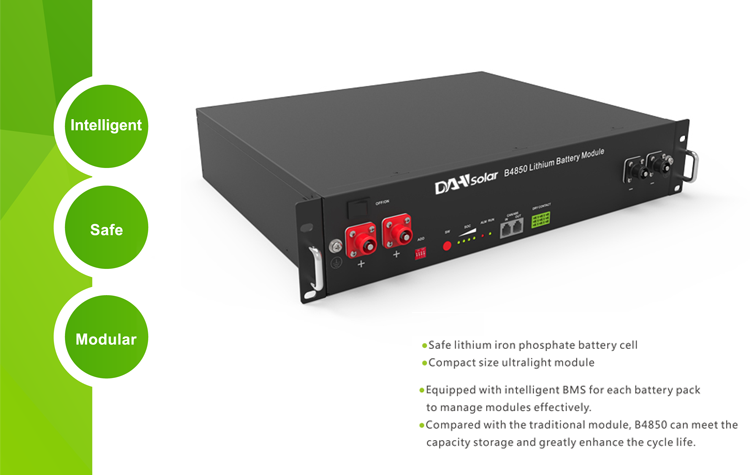

*Safe lithium iron pgosphate battery cell
*Equipped with intelligent BMS for each battery pack to manage modules effectively*Compared with the traditional module, it can meet the capacity storage and greatly enhance the cycle life
An Hui China

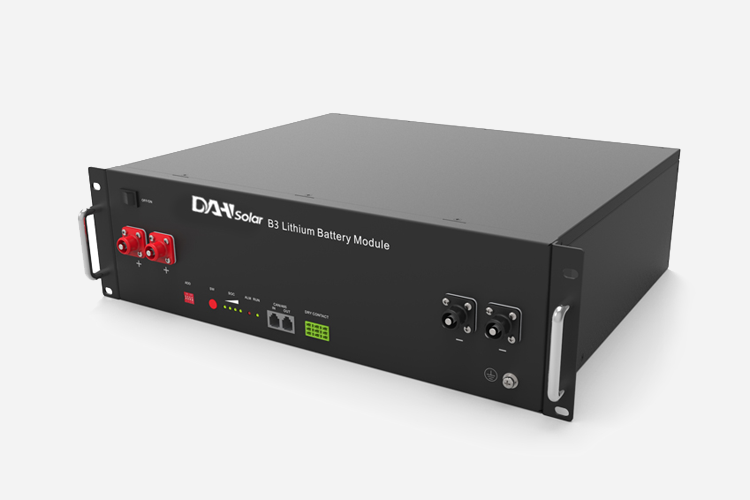

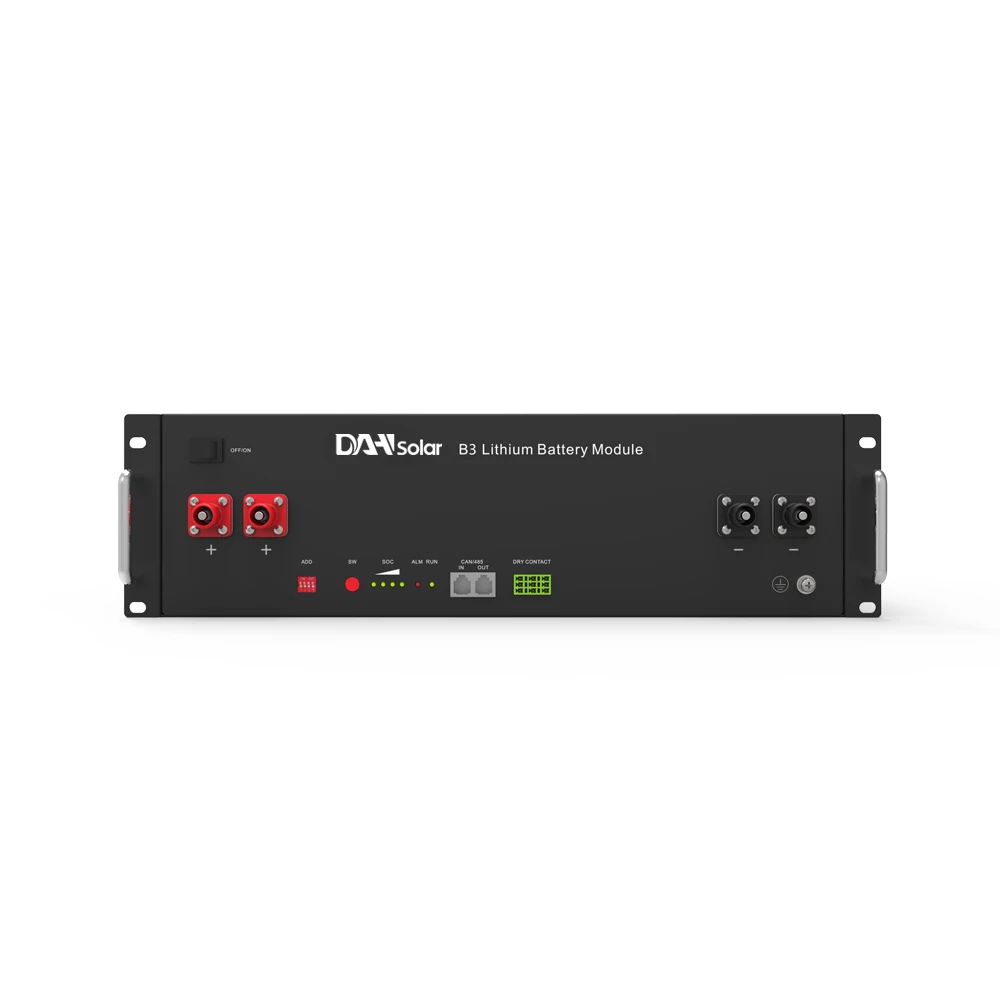

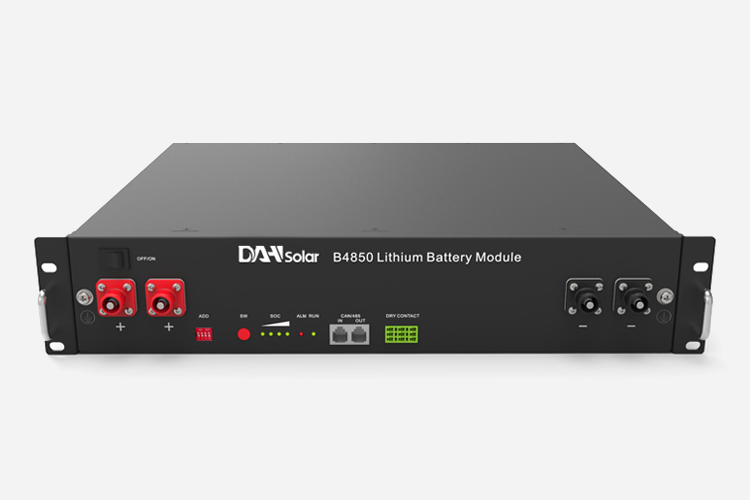

Model | B3 | 330W | 360W | B4850 | 400W | 445W | ||||
Battery Type | 3.6kWh | 40.6V | 47.2V | LiFePO4 | 47.4V | 54.2V | ||||
Nominal Battery Energy | 75Ah | 33.7V | 38.9V | 2.4kWh | 40.6V | 45.8V | ||||
Nominal Capacity | 48V | 10.33A | 9.76A | 50Ah | 10.32A | 10.29A | ||||
Nominal Voltage | 50A | 9.80A | 9.26A | 48V | 9.86A | 9.72A | ||||
Charging Cut-off vol. | 54V | 19.56% | 18.57% | 54V | 19.88% | 20.45% | ||||
Discharging End-off vol. | 40.5V | 40.5V | ||||||||
Recommed C Rate | / | 0.5C | ||||||||
Continuous Mac C Rate | / | 1C | ||||||||
Net Weight | 30Kg | 22Kg | ||||||||
Dimension [W*D*H] | 400*360*133.5mm | 480*360*90mm | ||||||||
Charging Temp. Range | 0~50℃ | 0~50℃ | ||||||||
Discharging Temp. Range | -20~50℃ | -20~50℃ | ||||||||
Calendar Life | 6000 Cycles | 6000 Cycles | ||||||||
Protection Level | IP20 | IP20 | ||||||||
Communication | CAN / RS485 | CAN / RS485 / DRY CONTACT | ||||||||
Warranty | 10 years | 10 years | ||||||||

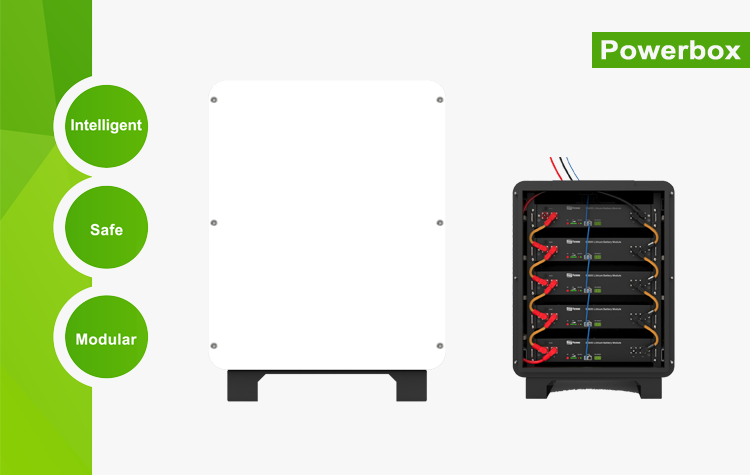

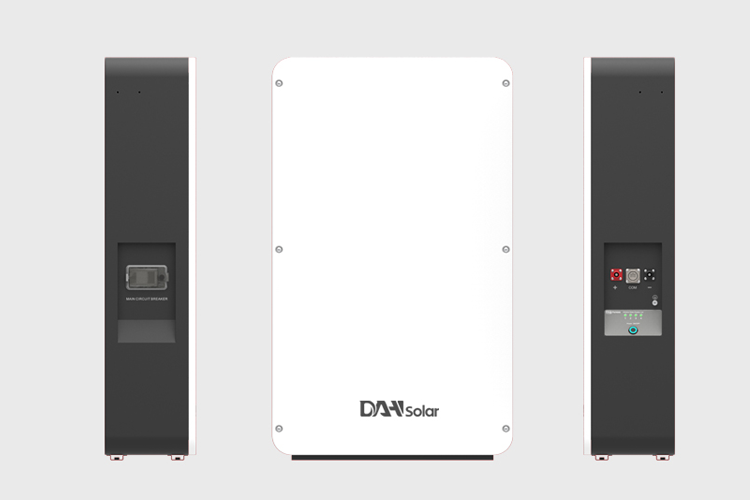

Model | PowerBox | ||||||
Battery Type | LiFePO4 | ||||||
Battery Module | 1 Moudle | 2 Moudles | 3 Moudles | 4 Moudles | |||
Battery Capacity [Ah] | 50 | 100 | 150 | 200 | |||
Nominal Battery Energy [kWh] | 2.4 | 4.8 | 7.2 | 9.6 | |||
Max Output Power [kWh] | 2.4 | 4.8 | 4.8 | 4.8 | |||
Peak output Current [Amp] | 100, 1s | 200, 1s | 200, 3s | 200, 3s | |||
Net Weight [Kg] | 47 | 69 | 91 | 113 | |||
Dimension [H*W*D, mm] | 928*555*10 | 0.5C | |||||
Working Voltage [V] | 40.5~54 | 1C | |||||
Operating Temp. Range [℃] | -20~50℃ | 22Kg | |||||
Calendar Life | 6000 Cycles | 480*360*90mm | |||||
Nominal Voltage | 48 V | 0~50℃ | |||||
Protection Level | IP 65 | -20~50℃ | |||||
Communication | CAN / RS485 / DRY CONTACT | 6000 Cycles | |||||
Certification & Safetly Standard | TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited | IP20 | |||||
Scalability [kWh] | Up to n limit | CAN / RS485 / DRY CONTACT | |||||
Warranty | 10 Years | ||||||
Warranty Document Supplied | Yes | ||||||
Color | White | ||||||
Alarms | Overcharge Overdischarge Overcurrent Vovertemperature Short Circuit | ||||||
Pros | Can be used in both off-grid and hybrid setups, campact design, modular expansion | ||||||
Monitoring & Protection | Each mudule has BMS, breaker embedde in system | ||||||
