1.Flexible capacity and power selection with phased expansion capability.

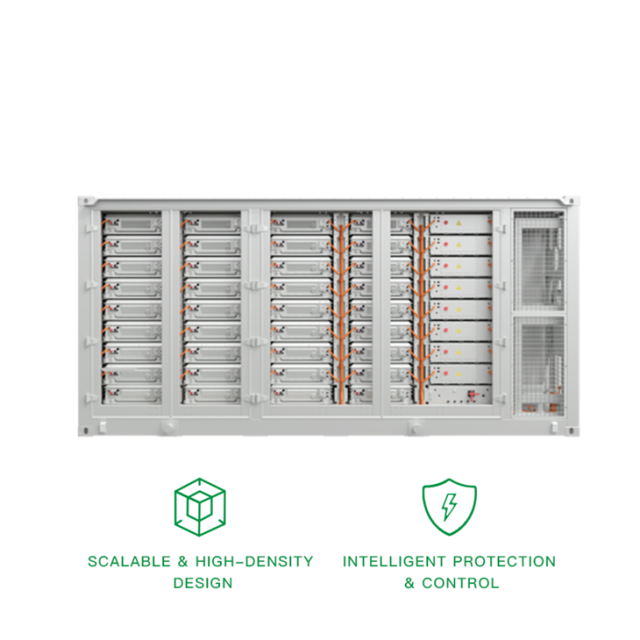

2.Standard 20ft container with independent liquid cooling for superior heat dissipation, optimized space
utilization, and high en ergy density.
3.Efficient variable-frequency liquid cooling and heating system with intelligent temperature control for extended
system lifespan.
4.Dual protection with C3HF7 gas fire extinguisher and water-based fire extinguisher dedicated tolithium battery
packs.
5.Three-level BMS protection design with intelligent linkage to PCS/EMS.
6.Three-level control circuit topology for higher conversion efficiency.
7.Three-level topology for high efficiency
8.String-based solution to effectively manage battery circulation issues.
9.Supports VSG, PQ, and VF operating modes.
10.Grid-friendly design with LVRT & HVRT functions, enabling four-quadrant active and reactive power regulation
11.Supports on-grid, off-grid, and seamless on/off-grid switching.
12.Capable of handling 100% three-phase unbalanced loads in off-grid mode.
13.Supports high-low penetration, islanding, and black start functionality.
14.Cloud-based intelligent monitoring platform for real-time remote operation and status tracking.
15.Customized energy management with remote diagnostics and software updates.
16.Supports reactive power compensation, harmonic control, and full three-phase unbalance compensation.
