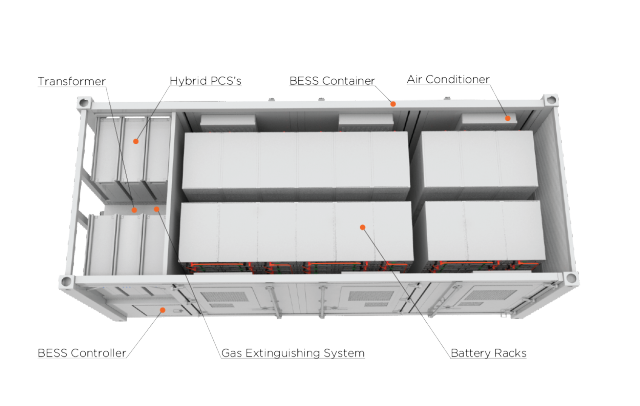

The 1MW BESS systems utilize a 280Ah LFP cell and air cooling system which offers a better price to power ratio. Each BESS is on-grid ready making it an ideal solution for AC coupled commercial/industrial customers. The 20′ systems are designed and shipped with the batteries pre installed utilizing UN 3536 shipping standards which can dramatically lower installation costs. Each BESS container is rated at 1000kW AC inverter allowing for easy AC coupling of your renewable energy project (690V).
Utilizing string architecture topology vs traditional centralized PCS design, the MEG 1600 allows for better system availability and lower maintenance downtimes. The 8 PCS by 8 battery string configuration ensures better charging efficiency and the potential for less circulating current found in some centralized BESS designs. Many PV system designers will see the similarity of PV string inverter system design vs centralized PV inverter design here.
Each commercial and industrial battery energy storage system includes Lithium Iron Phosphate (LiFePO4) battery packs connected in high voltage DC configurations (1,075.2V~1,363.2V). Battery Systems come with 5000 cycle warranty and up to 80% DOD (Depth of Discharge) @ 0.5C x 25℃.
Offered with a 24 x 7 cloud-based monitoring and operation platform supports Mysql database and multiple mobile and PC devices. The battery pack, string and ESS are certified by TUV to align with IEC/UL standards of UL 9540A, UL 1973, IEC 62619 etc.
