200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container

Shanghai Elecnova Energy Storage Co., Ltd. ShangHai China
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
Summary
No.1600996827298
More
$56386.00
Specifications
Color:
Wihte
System Energy Range:
200-500 kWh
Capacity:
280AH
System Voltage Range:
500~1000 V
INQUIRY
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
  • 200 kwh 500 kwh 1Mwh Energy Storage System PV Utility Scale Battery Storage Off Grid Solar Power BESS Container
Description Download

Key attributes

Industry-specific attributes

Battery Type
LiFePO4
Grid connection
Hybrid grid

Other attributes

Model Number
ECO-ESS-116kW/232kWh-L-CH
Brand Name
Elecnova
Place of Origin
Jiangsu, China
Dimension (L*W*H)
1100*1,300*2,350 (mm)
Weight
2,800kg
Communication Port
rs485, Ethernet
Protection Class
ip55
Cooling
Liquid Cooling
Energy Conversion Efficiency
≥91%
Charge/Discharge Rate
≤0.5P
Discharge Depth
95%DOD
OEM/ODM
Accepatable
Application
Industrial
Keywords
Cabinet Energy Storage
Capacity
232KWH
Cycle life
8000 Times
Usage
Industrial Commercial
BMS
Built-in BMS Protection

Packaging and delivery

Selling units
Single item
Single package size
130X135X300 cm
Single gross weight
2500.000 kg
Show more
Basic Info.

ECO-E233LS

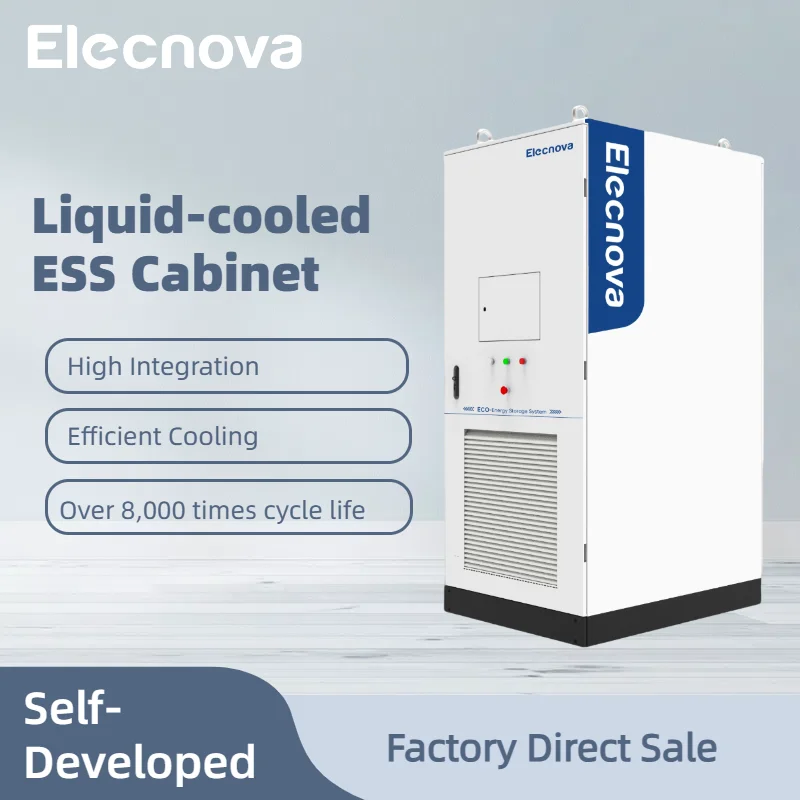

Elecnova 233KWH commercial & industrial energy storage system adopts adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.Key Features:
* All-in-one design for easy integration
* Modular design for flexible expansion
* Capacity of up to 233kWh and power up to 100kW
* Black start capability for independent power restoration
Benefits:
* Efficient energy storage for industrial & commercial applications
* Reliable power supply during outages or emergencies
* Cost-effective solution for solar panel battery storage
Products Description

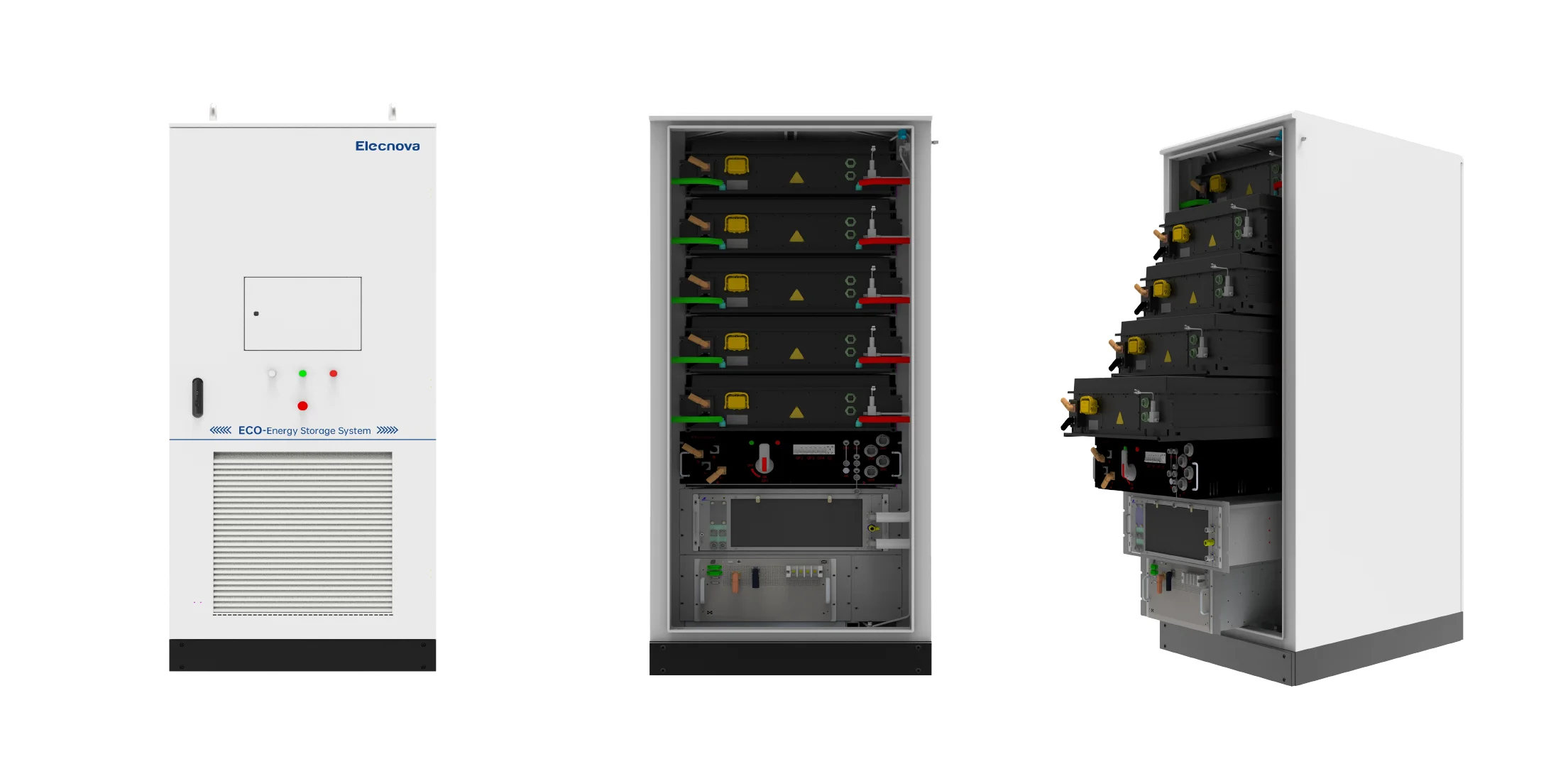

The 3D structure diagram

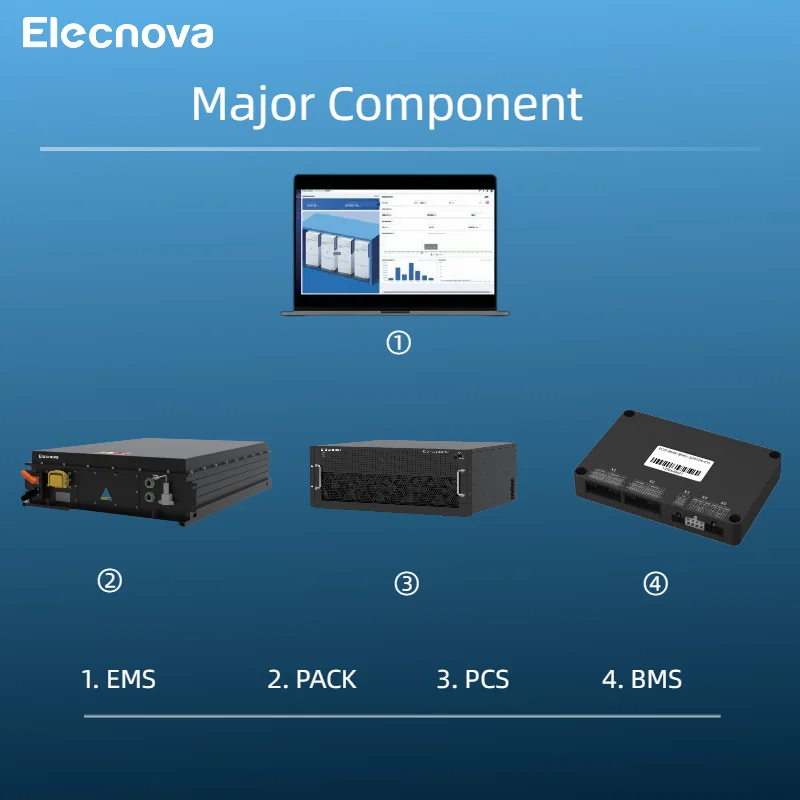

Key Components (Self-developed)

Liquid-Cooled PACK

The liquid-cooled PACK consists of LFP cells, grouping in 1P52S. With built-in BMU, HV connectors, liquid cooling plate module, fixed structural components , these accessories enable the PACK module to have protection functions such as overvoltage, undervoltage, overcurrent, insulation, short circuit, and overheat. Combined with PCS, it achieves energy charge and discharge.

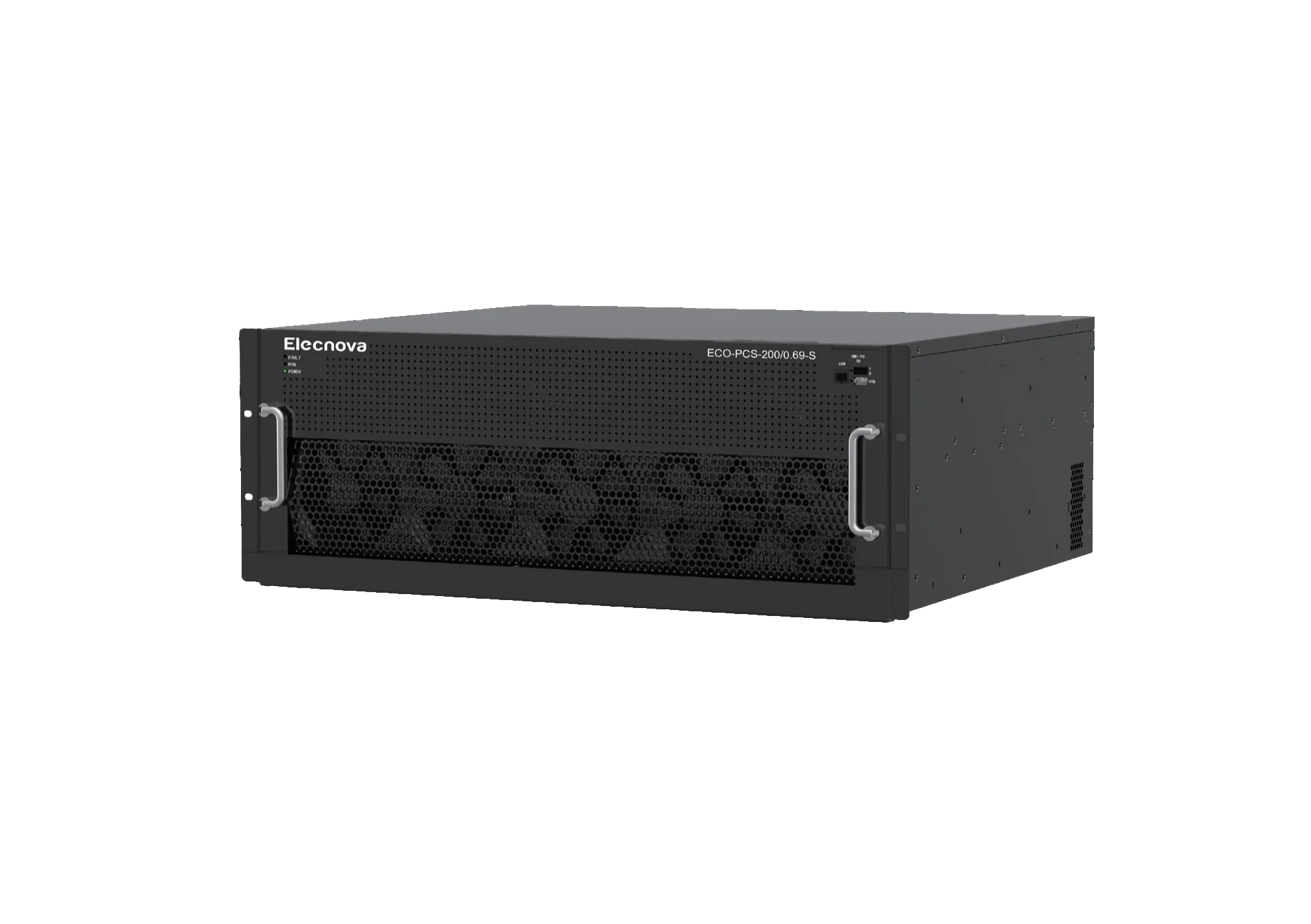

PCS

The PCS is a modular inverter specifically designed for small-scale energy storage systems. It achieves bidirectional energ conversion in ESS and can meet the requirements of various scenarios such as C&I ESS, substation energy storage, PV-plus microgrid
with ESS.

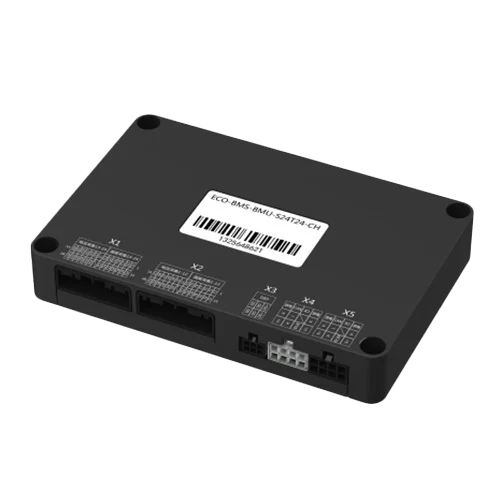

BMS

BMS supports two architectures: three-level architecture (BMU+BCU+BAU) and two-level architecture (BMU+BCU). BMU, BCU and BAU
respectively other PACK-level, cluster-level and array-level protection against overcharging, over-discharging, overcurrent, overheat and short circuit for battery clusters. Real-time monitoring of battery safety status, fault diagnosis, and warnings are
provided.

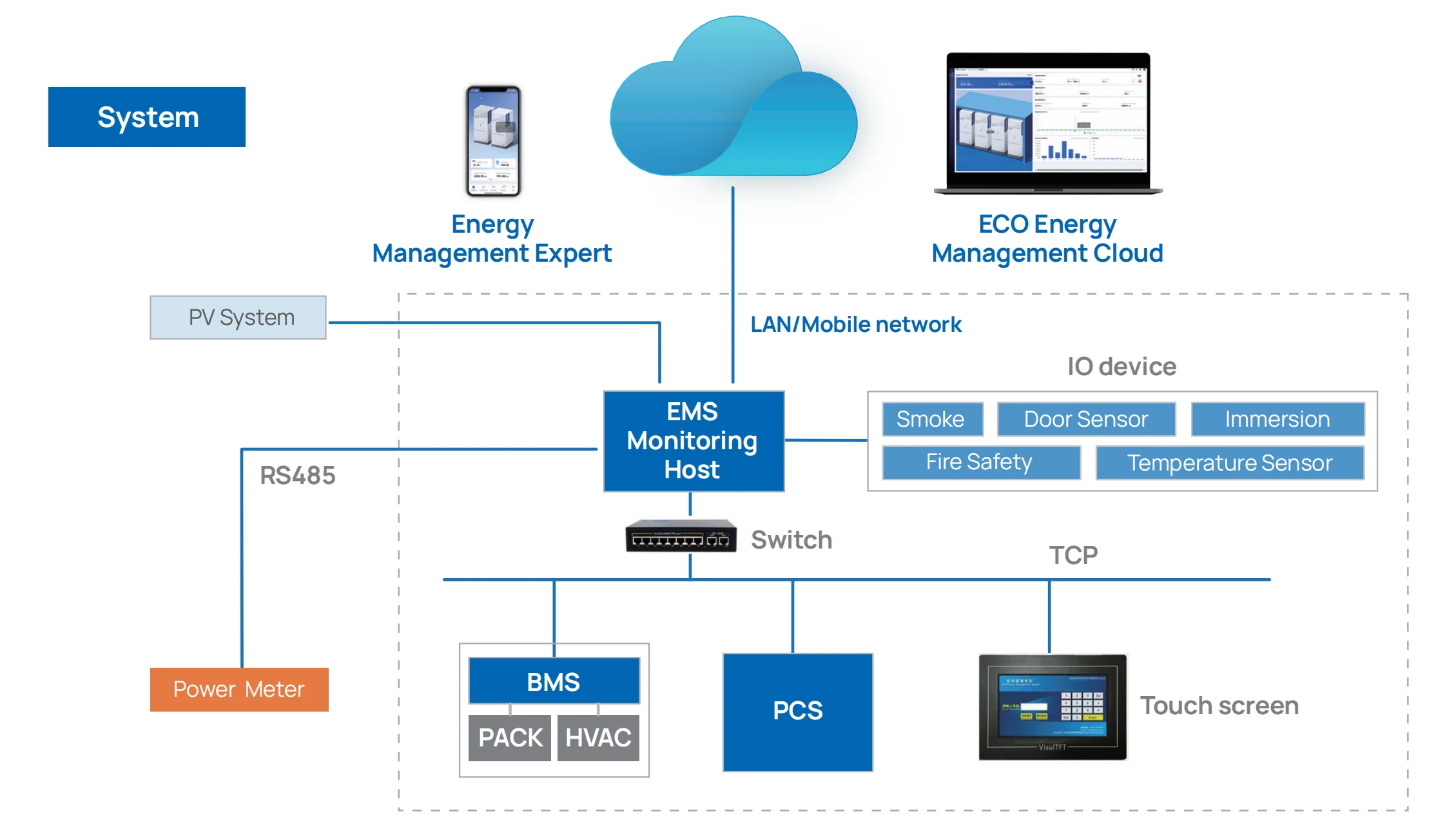

EMS

ECO-EMS series products adopting an integrated architecture design, the system is suitable for user-side ESS, microgrid and PV-plus ESS and more. It ensures that the system operates optimally at all times, maximizing overall benefits and shortening ROI.
DC Side
Cell Type
LFP280Ah
PACK
46.592kWh/1P52S
Battery System
233.96kWh/1P260S
Voltage Range
728~936Vdc
PACK Ingress Rating
IP65
AC Side
Rated Power
100kW
Max. Power
110kW
THDi
≤3%
Nominal Voltage
400Vac/3P+N+PE
Power Factor
-1 lagging~1 leading
Nominal Frequency
50Hz/60Hz
General
System Efficiency
≥90%
Charge/Discharge Rate
0.5P
DoD
95%（25±2℃）
SOC Accuracy
＜3%
Cycle Life
≥8,000 times
Switching Time
＜100ms
Connectivity
Ethernet /RS485
Ingress Rating
IP55
Cooling
Active liquid cooling
Operating Temperature
-25℃~55℃
Humidity
5~95%RH, non-condensing
Noise
≤75dB
Altitude
≤2,000m (derating above 2,000m)
Fire Safety
NOVEC1230/aerosol
Dimensions (W*D*H)
1,050*1,350*2,400 (mm)
Weight
2500kg
Compliance
UN38.3, IEC62619, UL1973, UL9540 and CE-EMC

Main Features

Compact : 1.4m² footprint only, easy transportation & fast installation.
High Integration: 233kWh energy in one cabinet and ensure long-term endurance.
Efficient Cooling: Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Long Cycle Life: Over 8,000 times cycle life, excellent performance of battery system.
Flexible Expansion : Modular design, simplified parallel expansion.
Ultimate Safety: In-PACK fire warning and protection with NOVEC1230/aerosol, prevent heat diffusion and runaway
Application
Elecnova ESS solutions can be widely used in these scenarios: Industrial Park,Factory ,Microgrid,EV Charging station,Commercial complexes,Data Center and so on.
Product Packing

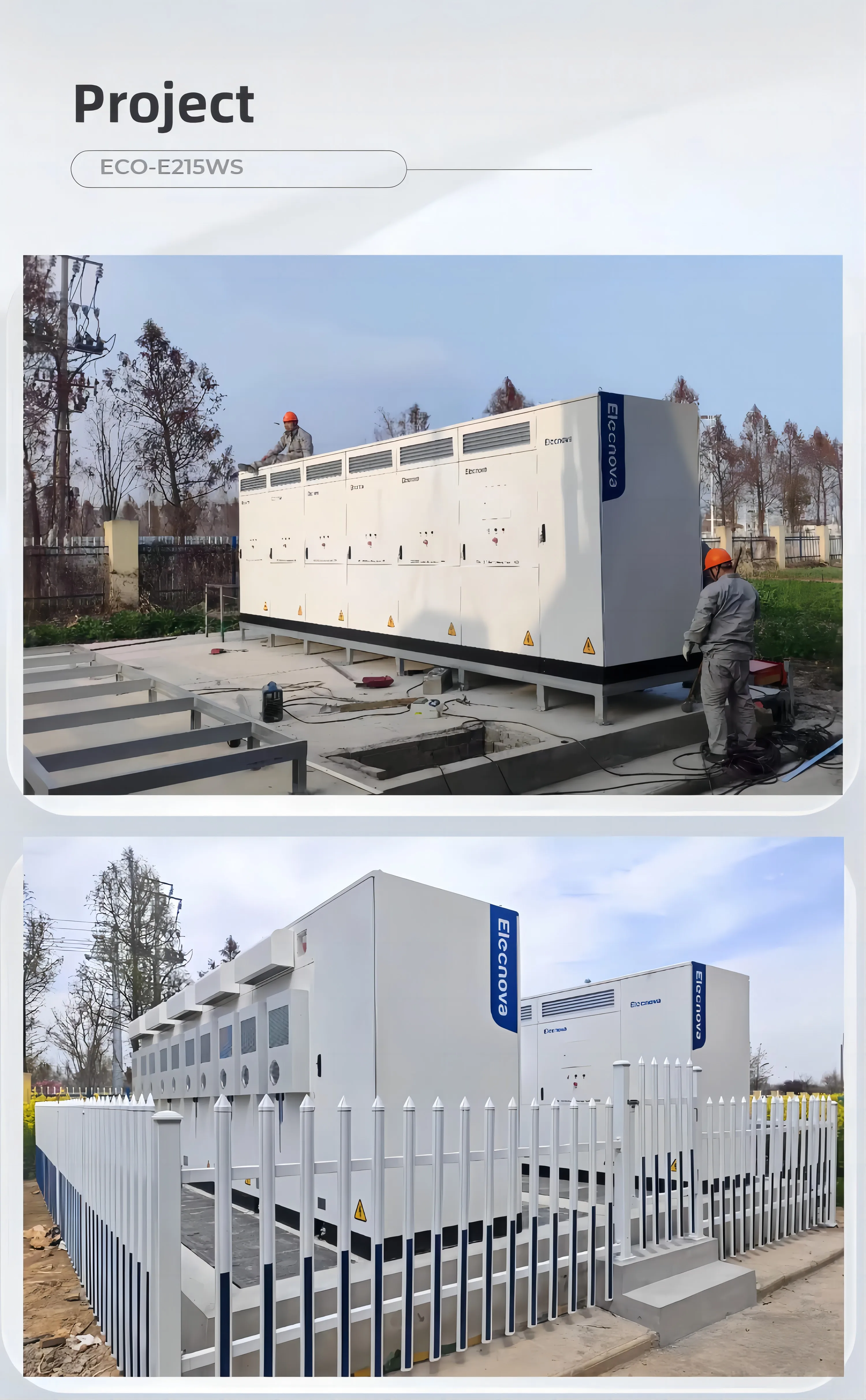

Elecnova Energy storage 2.4MWh energy storage project successfully connected to the grid! The project adopts advanced energy storage technology and equipment, which has the characteristics of high efficiency, stability and safety.

Shanghai Elecnova Energy Storage Co., Ltd. is a technology-based enterprise who focus on overall solutions for erstorage systems. Our company have the overall supporting capability for the system integration of PACK, PCS, BMElecnova aims to meet the diversified energy requirements of segmented markets and customers, with products athe core and quality as the cornerstone. We are committed to providing high-quality customized products and seivarious energy consumption scenarios on the power generation side, grid side, and user side.
FAQ

Q:Who are we? Are you trading company or manufacturer?
We are manufacturer.We are based in Shanghai, China, start from 1998. There are total about 600+ people in our company.

Q:Can you supply OEM &ODM service?
A:Yes, but there is a minimum order quantity required.

Q:Can you ship your battery products by sea or by air?
A:We have long-term cooperated forwarders who are professional at battery shipment.

Q:How long is the warranty?
A:Our warranty is from 5~10 years.

Q:Why should you buy from us not from other suppliers?
Elecnova is a professional manufacturer of energy storage system .Our company specializes in the production of PCS,Battery
PACK,BMS,EMS and all in one cabinet.

Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.

Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
