首頁 > 所有系列 > 20kw Lithium Ion Battery 10kwh 48V 100Ah Lithium Battery Pack 150Ah 200Ah 300Ah 400Ah 500Ah Solar Lifepo4 Battery

20kw Lithium Ion Battery 10kwh 48V 100Ah Lithium Battery Pack 150Ah 200Ah 300Ah 400Ah 500Ah Solar Lifepo4 Battery

TTN New Energy Technology (Wenzhou) Co., Ltd.

Wenzhou China

Summary

No.1600605144339

$671.00

Specifications

Output voltage:

Other

Capacity:

200 AH

150 AH

100 Ah

75 Ah

50 AH

Color:

Black

System Voltage:

Other

Energy:

Other

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Output Power Range

5~10 kWh

Grid connection

Off grid, Hybrid grid

Other attributes

Battery Type

LiFePO4

System Type

Rack-mounted

Model Number

48V50Ah~300Ah

Brand Name

TTN

Place of Origin

Zhejiang, China

Dimension (L*W*H)

590*484*178mm

Weight

72.5kg

Type

Split

Communication Port

CAN, rs232, rs485

Type

LiFePO4, Li-Ion

Voltage

48V

Capacity

50Ah, 75Ah,100ah,200ah

Application

UPS,Solar, Home, Solar Energy Storage Systems,Power Supplies

Cycles

6000 times

Communication

CAN/RS485/DRY CONTACT

Protection Level

IP20

Warranty

10 Years, 5years

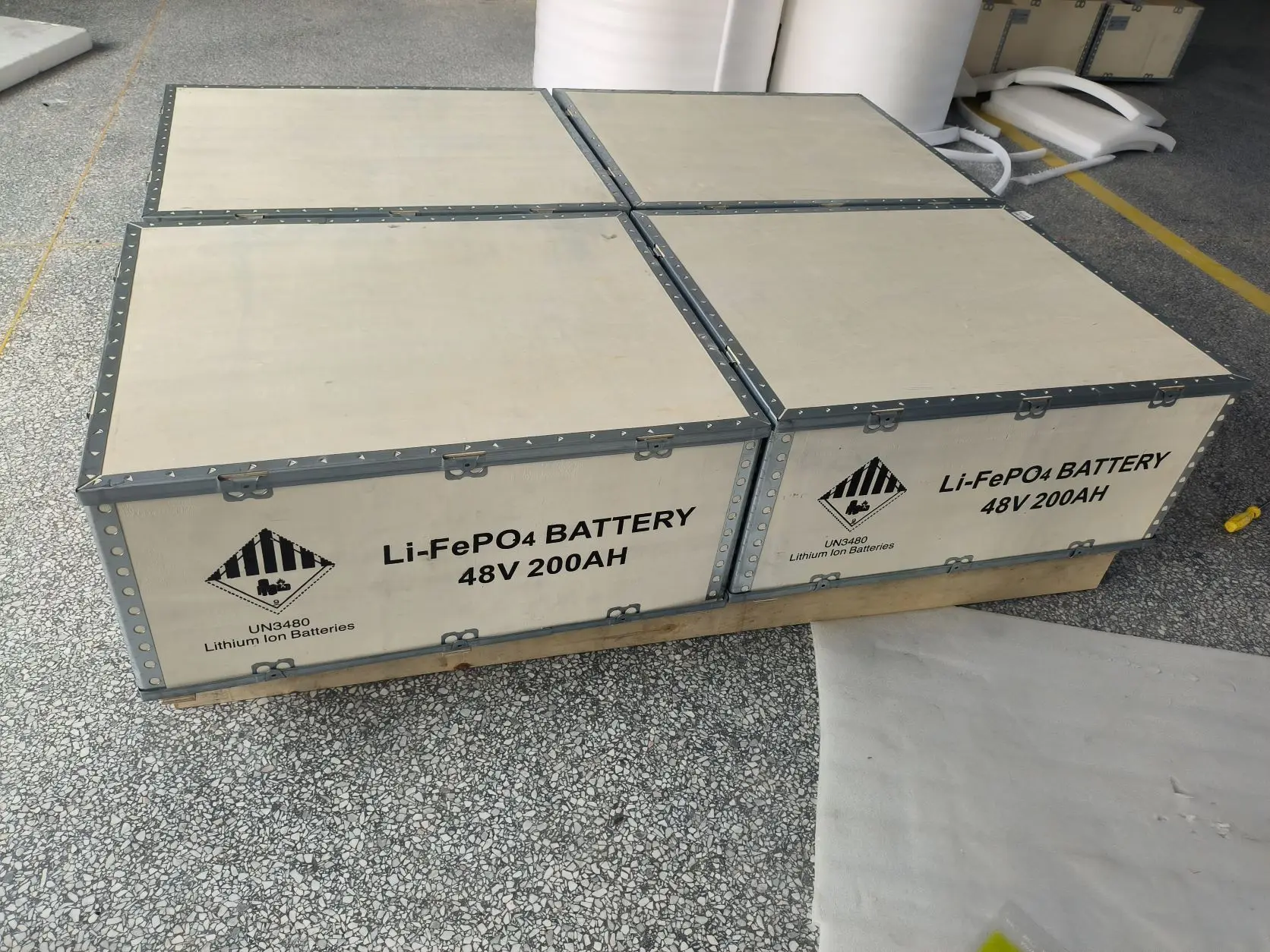

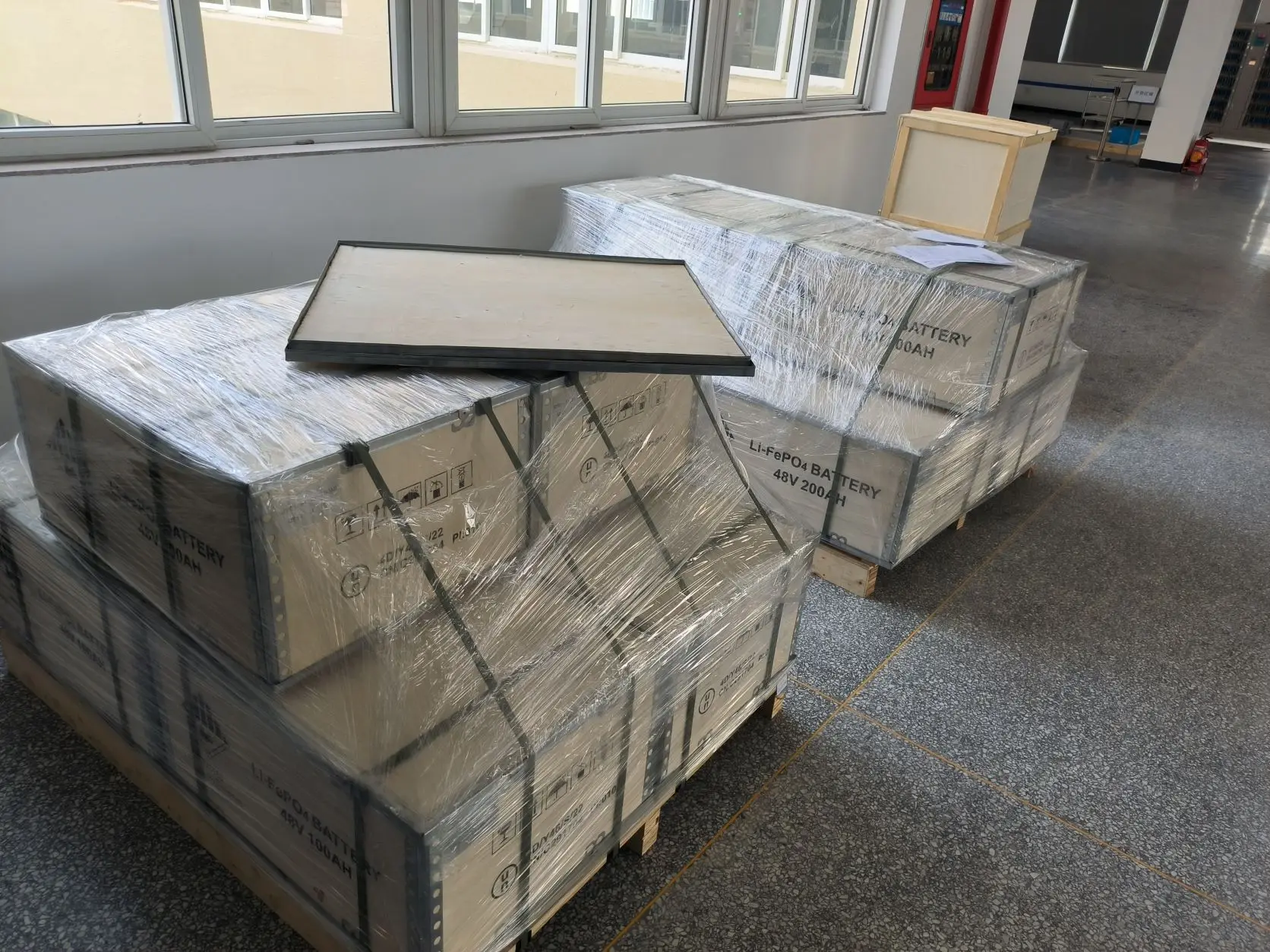

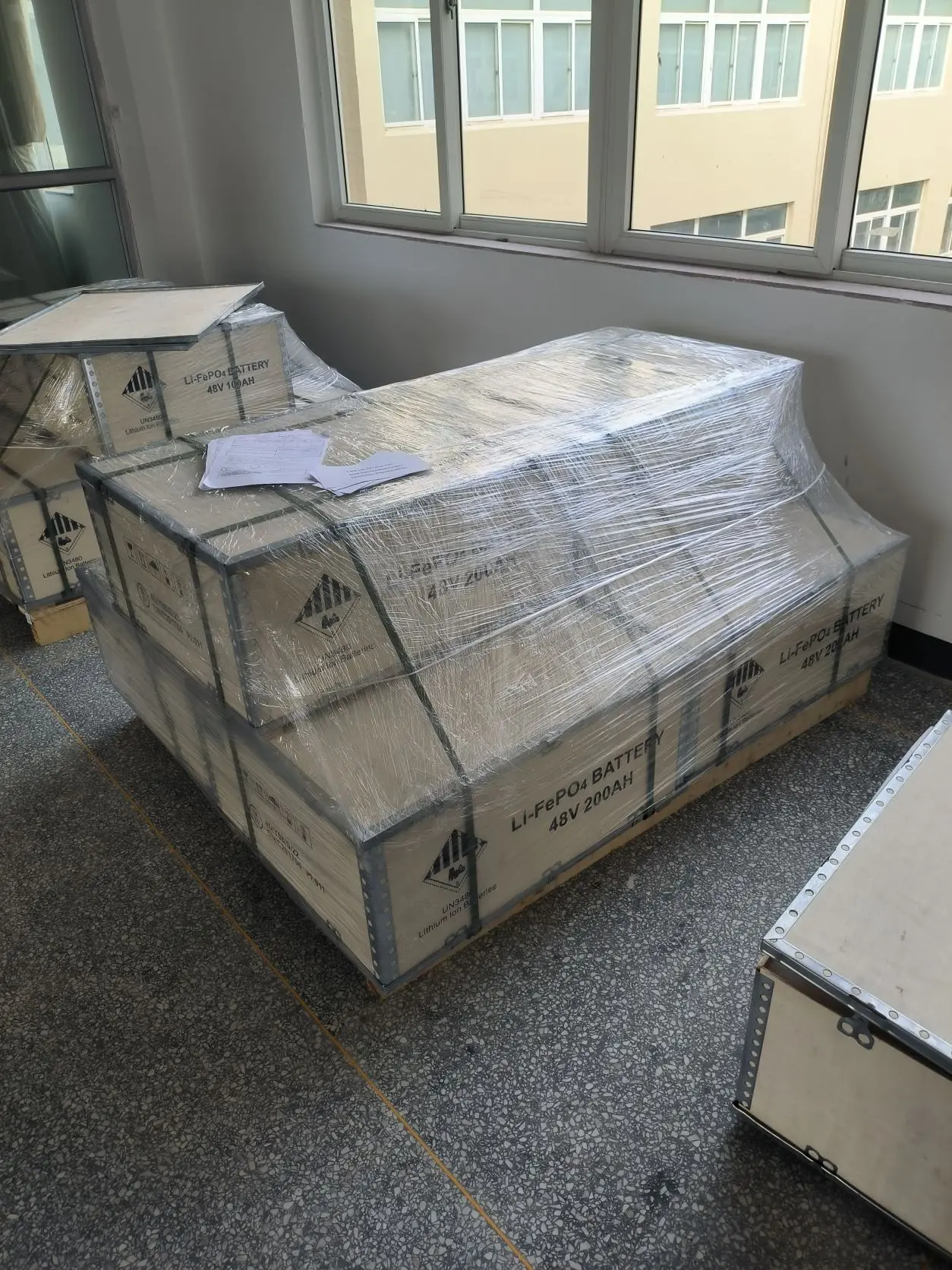

Packaging and delivery

Selling units

Single item

Single package size

73X55X27 cm

Single gross weight

81.000 kg

Products Description

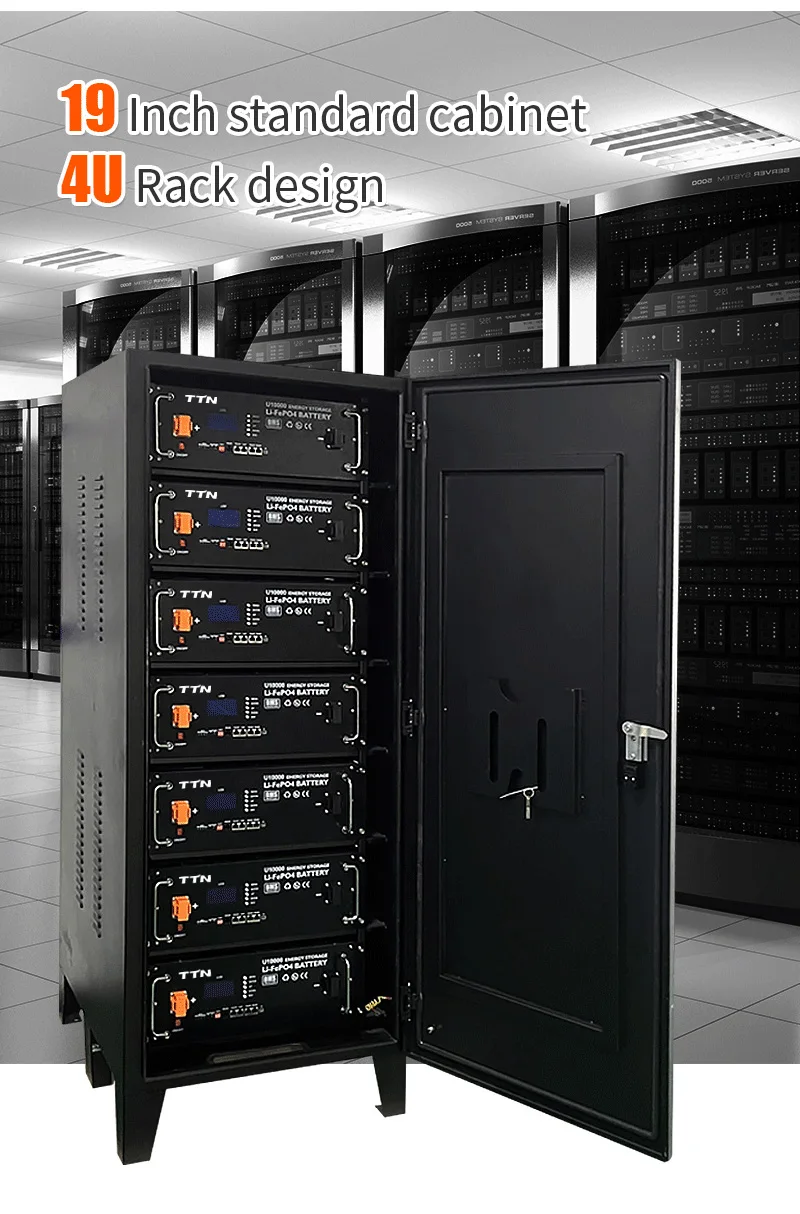

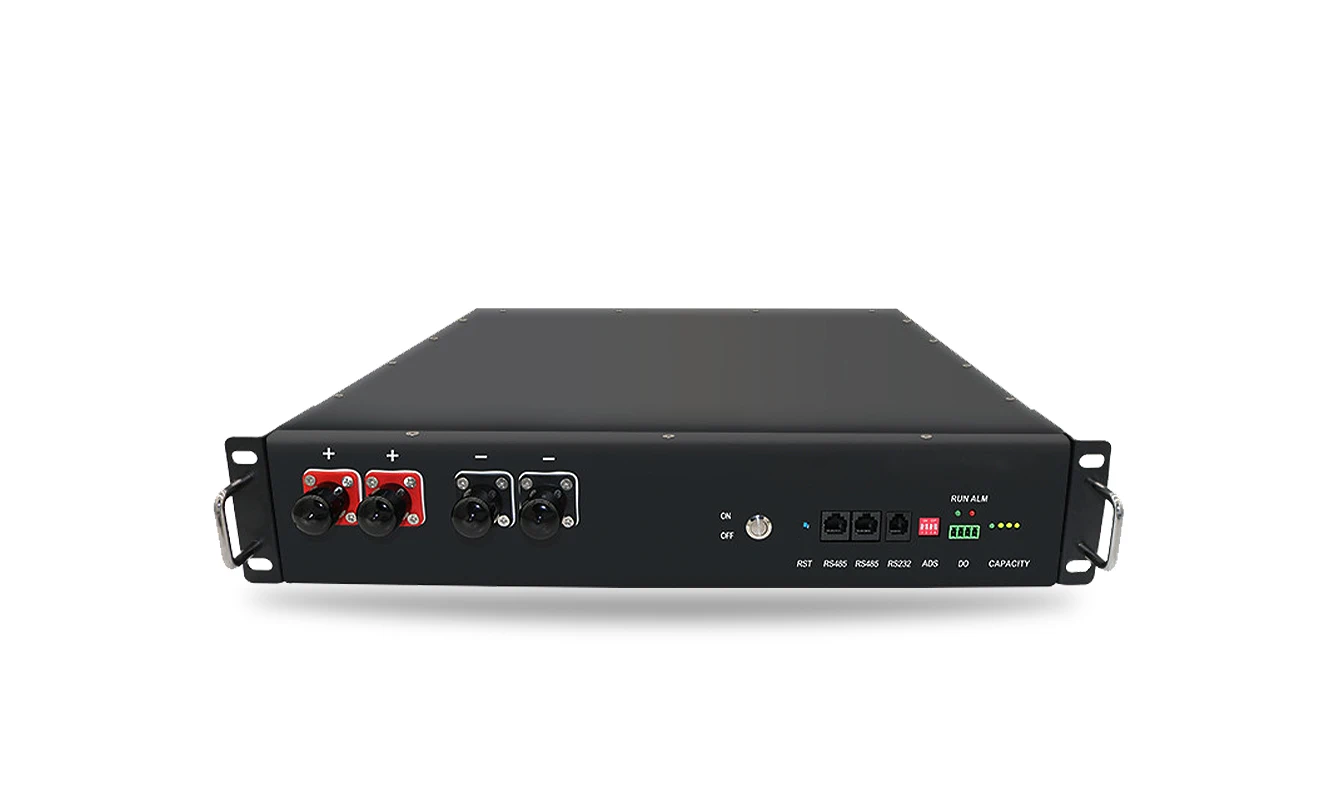

TTN Rack Mode Lithium Energy Storage Battery

TTN lithium energy storage battery use long working life LiFePO4 battery, and high performance BMS to protect and manage the battery system, it has wider usage and longer life than traditional battery.

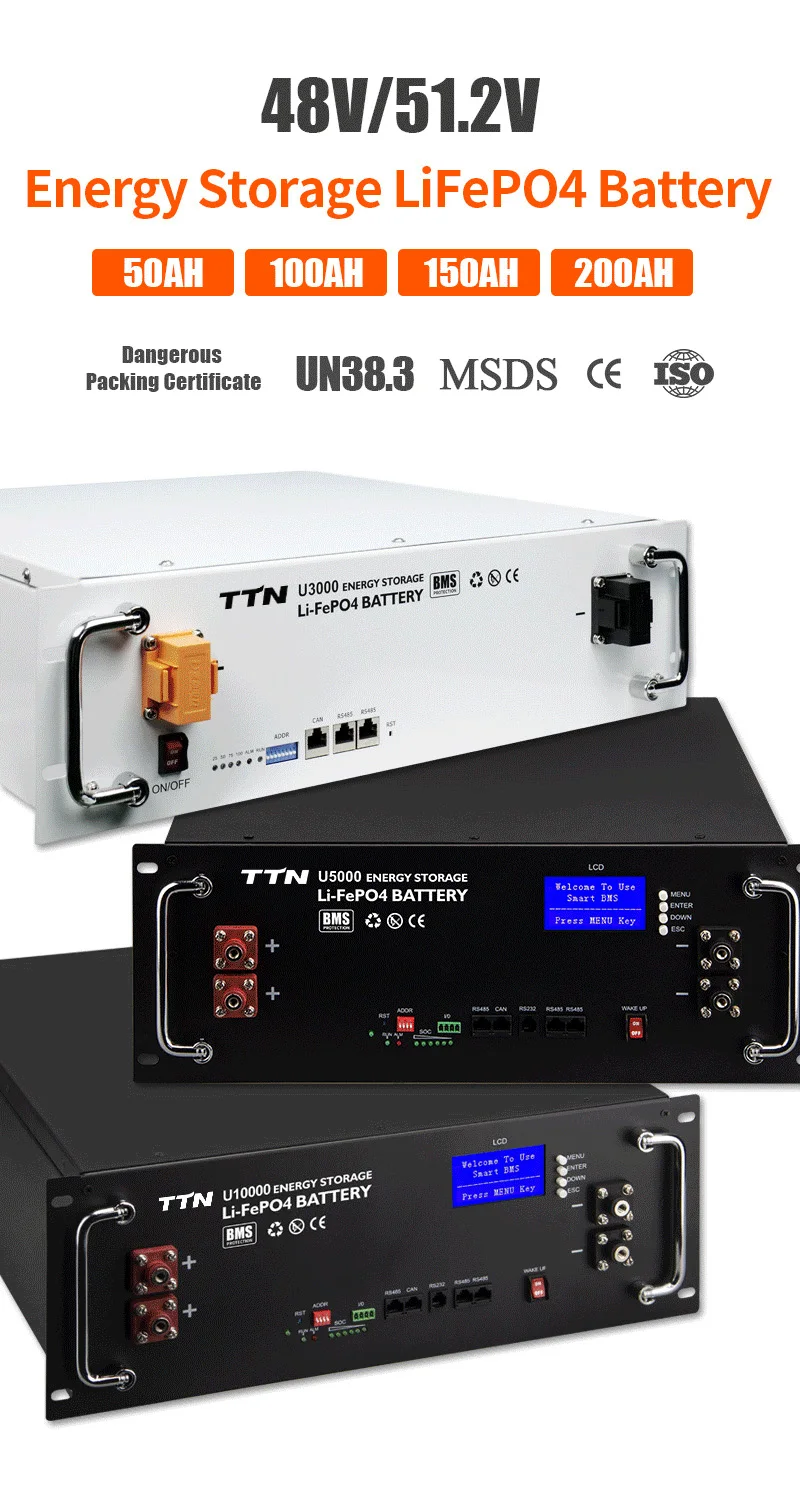

TTN-U3000/5000/10000

features:

※ High power, friendly interface, free combination

※ High quality battery cell, precise combination

※ CAN/RS485/WIFI/4G/Blue tooth communication

※ BMS customization supported

※ Thick shell, well protection for inside cells

Application area:

※Energy storage system, control system, alarm system, power system, database

※Emergency lighting system, emergency power supply, UPS

※ Telecommunication, communication, firefighting system

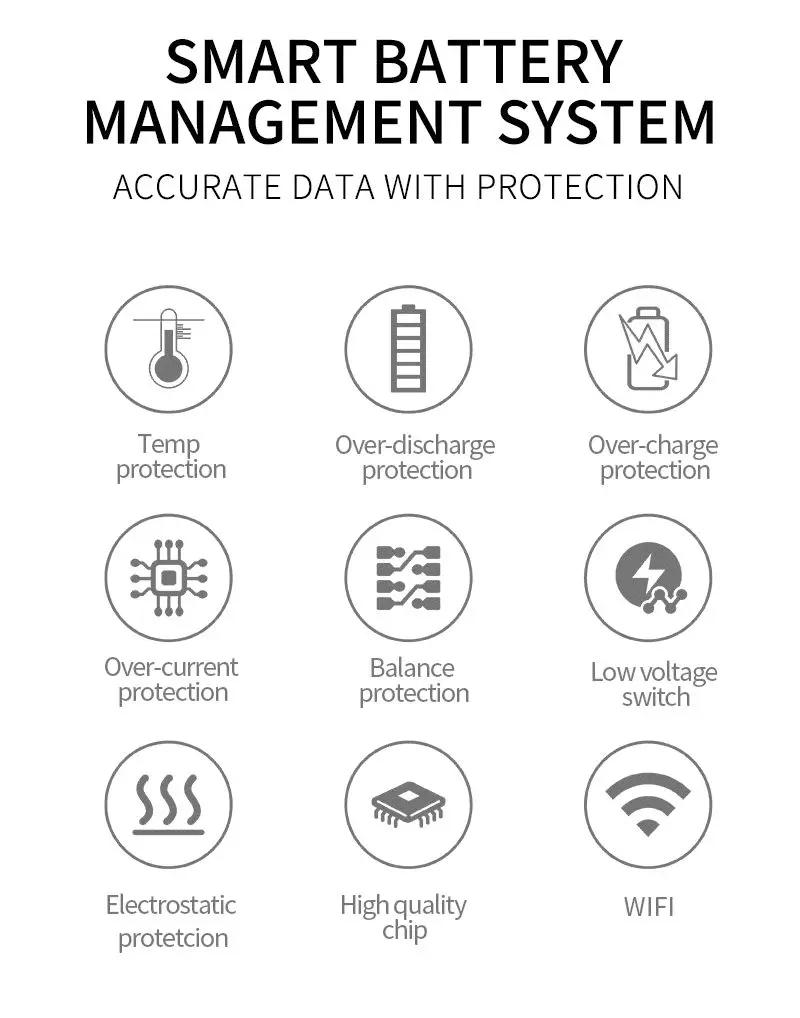

BMS Protection:

※Over Current

※Short Circuit

※Over Voltage

※High Temperature

※Low Voltage

Model	U3000 48V/51.2V	U5000 48V/51.2V	U8000 48V/51.2V	U10000 48V/51.2V
Capacity	2.4KWH/2.56KWH	4.8KWH/5.12KWH	7.2KWH/7.68KWH	9.6KWH/10.24KWH
Standard Discharging Current	25A	50A	50A	50A
Max Discharging Current	50A	100A	100A	100A
Working Voltage	40.5-54VDC/43.2-57.6VDC	40.5-54VDC/43.2-57.6VDC	40.5-54VDC/43.2-57.6VDC	40.5-54VDC/43.2-57.6VDC
Standard Voltage	48VDC/51.2VDC	48VDC/51.2VDC	48VDC/51.2VDC	48VDC/51.2VDC
Max Charging Current	25A	50A	75A	100A
Max Charging Voltage	54V/57.6V	54V/57.6V	54V/57.6V	54V/57.6V
Suggested DOD Model	90%
Humidity	20-60%
Installation	Rack mounted or cabinet
IP Rating	IP20

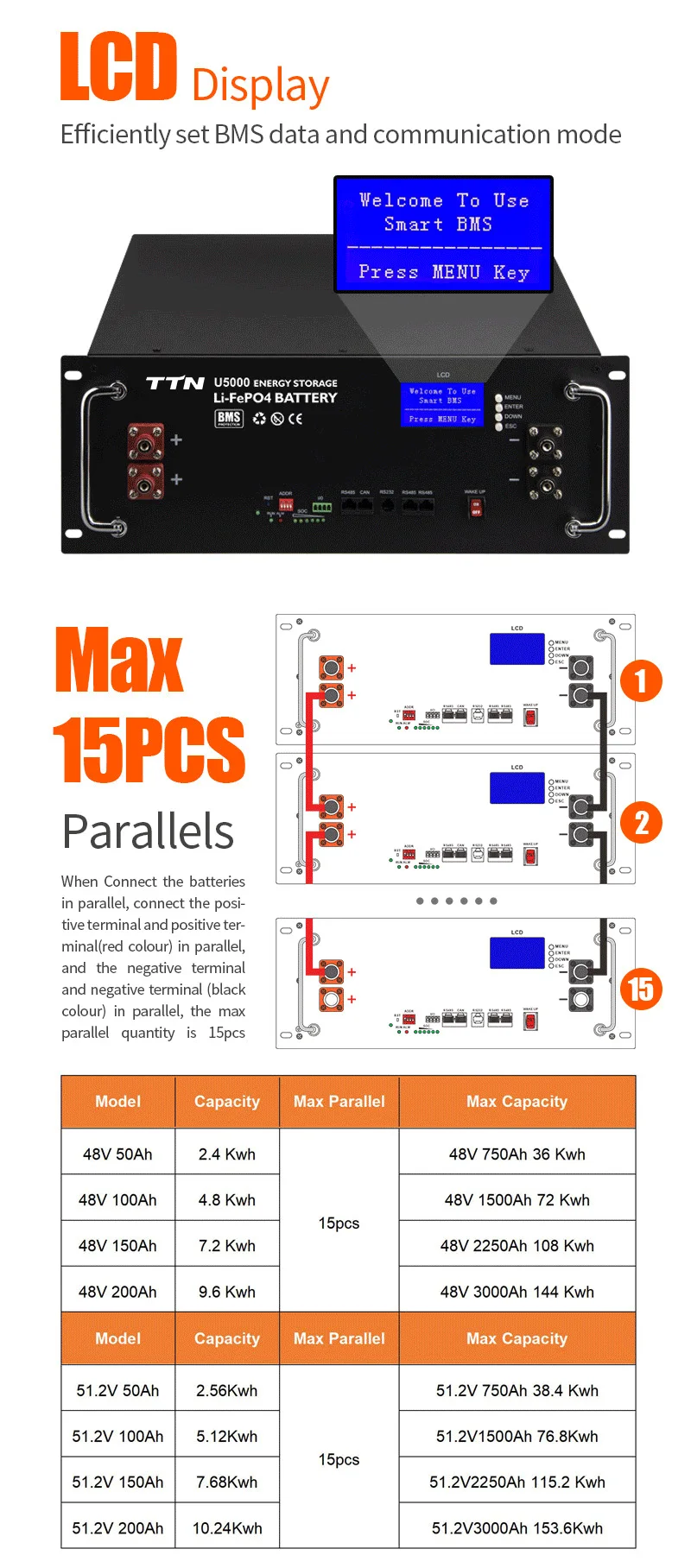

Max Number Of Parrallel	16
Warranty	5 Years
Communication	CAN/RS485/RS232(WiFi/bluetooth/4G optional)
Product Size	410484122mm	410484178mm	590484178mm	590484178mm
Packing Size	510567165mm	540510270mm	730544270mm	730544270mm
Net Weight	24.5kg/26.5kg	39.5kg/41.5kg	55kg/58kg	70.5kg/72.5kg
Gross Weight	27.05kg/29.05kg	45.5kg/47.5kg	62kg/65kg	78.5kg/80.5kg
