China
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah@25oC,C10 |
| Nominal Energy | 2560Wh@25oC,C10 |
| Operation Voltage | 20~29.2V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life @ 100%DOD | >3000 cycles (2560Wh@25oC,C10) |
| Cycle Life @ 80%DOD | >4000 cycles (2048Wh@25oC,C10) |
| Cycle Life @ 50%DOD | >6000 cycles (1280Wh@25oC,C10) |
| Dimension | 532*207*215mm (W x D x H) |
| Terminal Type | M8 |
| Weight | 24 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 25.6V |
| Discharge Cut-off Voltage | 20V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues |
| 200A burst (10 seconds) | |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection |
| Over-discharge protection | |
| Over current protection | |
| Cell balancing function | |
| Over temperature protection | |
Customised Lithium LiFePO4 Battery One-stop Service for You:
1. All battery capacities of 12V 24V 36V 48V 60V 72V 10Ah 20Ah 30Ah 40Ah 50Ah 60Ah 70Ah 80Ah 90Ah 100Ah 150Ah 200Ah can be customised. 2. All models of case material, battery dimension, colour and label can be customized.
3. BMS functions (such as intelligent Bluetooth function and LCD display function) can be customised.
4. The professional battery solutions are provided according to customers' requirements.

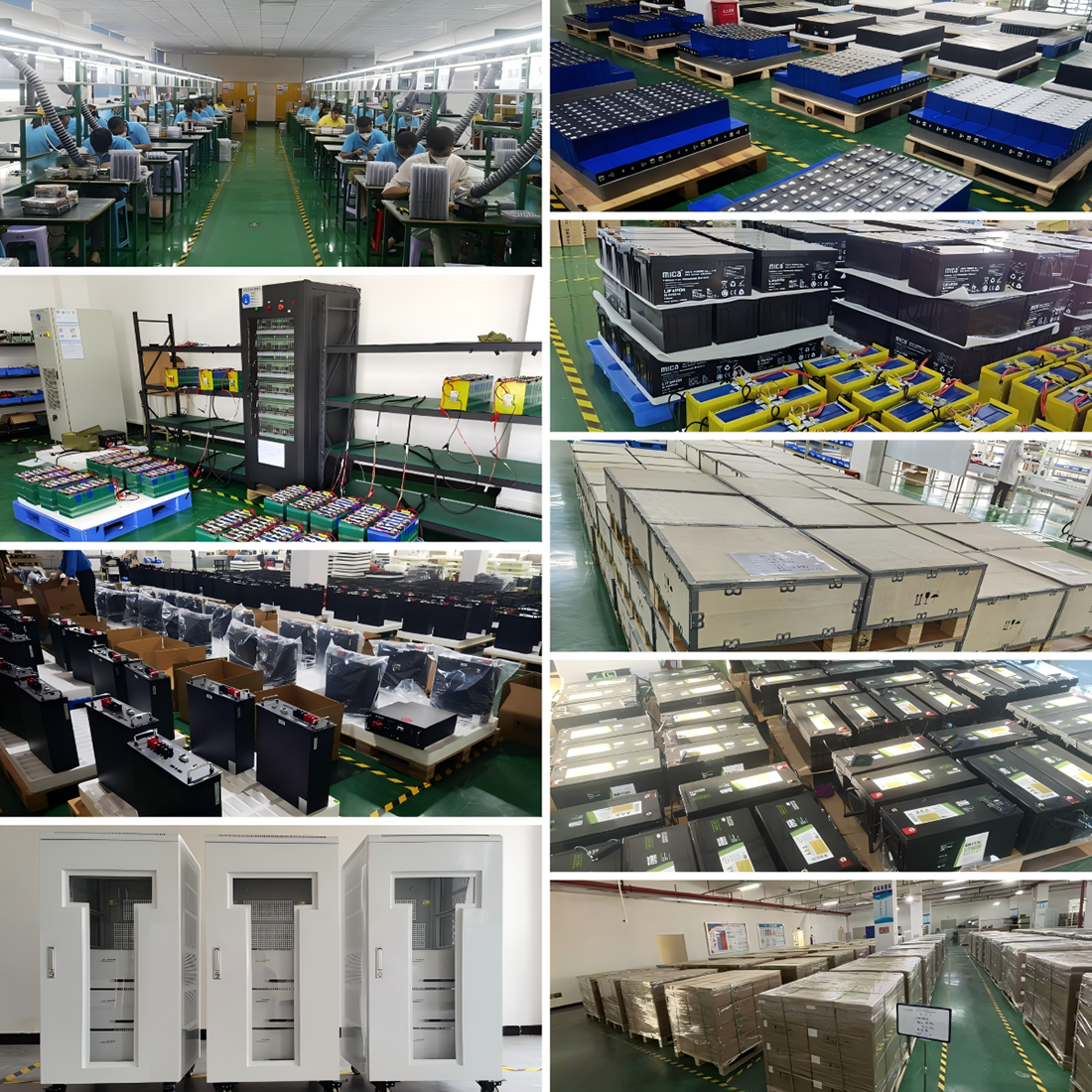

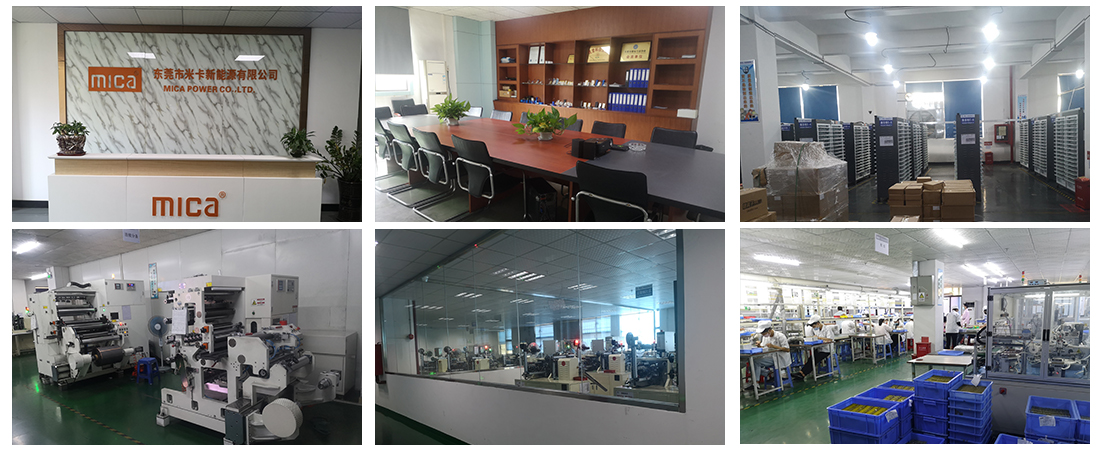

Our Factory
