215kwh Lithium Ion Solar Energy Storage System Rechargeable Charging Outdoor Cabinet Batteries

Shanghai Elecnova Energy Storage Co., Ltd.

ShangHai China

Summary

No.1601110490468

$51170.00

Specifications

System Energy Range:

200-500 kWh

Capacity:

280

System Voltage Range:

500~1000 V

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Battery Type

LiFePO4

Grid connection

Off grid, Hybrid grid, On grid

Other attributes

Model Number

ECO-E215WS

Brand Name

Elecnova

Place of Origin

Jiangsu, China

Dimension (L*W*H)

1,250*1,300*2,400 (mm)

Weight

2,500kg

Communication Port

rs485, Ethernet

Protection Class

ip55

Cooling

Air Cooling

Application

industrial commercial factory

Cooling

Air-cooled

OEM/ODM

Yes(Accepted)

Communication Port

RS485

Type

energy storage system

Battery capacity

215KWH

Usage

Storage System

Keywords

Cabinet Energy Storage

Grid Type

On grid

BMS

Built-in BMS Protection

Packaging and delivery

Selling units

Single item

Single package size

130X135X300 cm

Single gross weight

2500.000 kg

Product Overview

ECO-E215WS

Elecnova 215KWH commercial & industrial energy storage system adopts the all in one design concept.The cabinet is integrated with battery management system (BMS),energy management system (EMS),modular power conversion system (PCS),and fire protection system.The system‘s capacity is up to 215 kwh and the power is up to 100 kw.The modular design allows for flexible expansion,adapting to various scenarios such as power expansion,backup power supply,and black start(The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).

Key Features:
* All-in-one design for easy integration
* Modular design for flexible expansion
* Capacity of up to 215kWh and power up to 100kW
* Black start capability for independent power restoration
Benefits:
* Efficient energy storage for industrial & commercial applications
* Reliable power supply during outages or emergencies
* Cost-effective solution for solar panel battery storage

energy storage system solar with battery storage cost solar battery storage systems solar battery storage

Production details

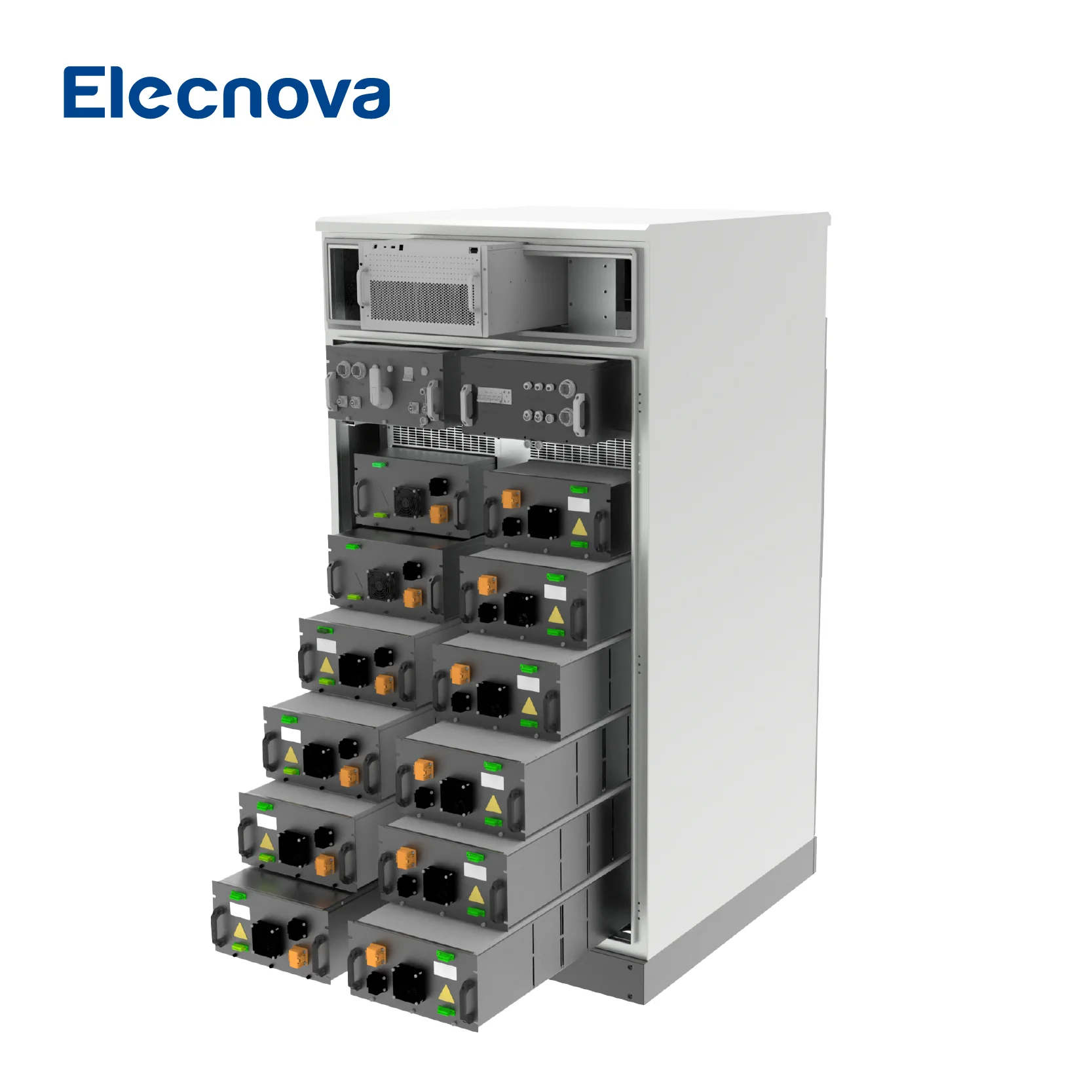

The 3D structure diagram

Key Components (Self-developed)

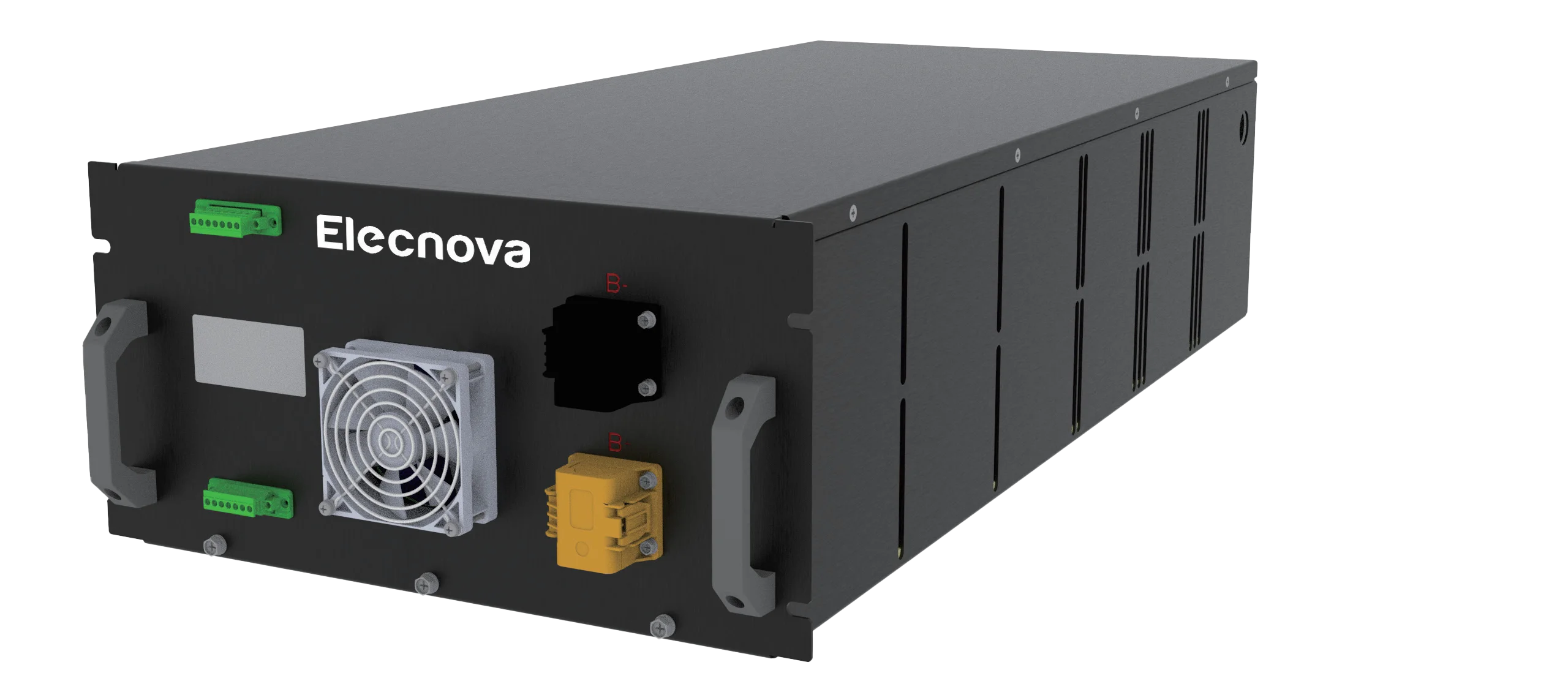

Air-Cooled PACK

The air-cooled PACK consists of standard 280Ah LFP cells, grouping in 1P20S. With built-in BMU, HV connectors, fans, and fixed structural components, these accessories enable the PACK module to have protection functions such as overvoltage, undervoltage, overcurrent, insulation, short circuit, and overheat.

PCS

The PCS is a modular inverter specifically designed for small-scale energy storage systems. It achieves bidirectional energy conversion in ESS and can meet the requirements of various scenarios such as C&I ESS, substation energy storage, PV-plus microgrid with ESS.

BMS

BMS supports two architectures: three-level architecture (BMU+BCU+BAU) and two-level architecture (BMU+BCU). BMU, BCU and BAU respectively other PACK-level, cluster-level and array-level protection against overcharging, over-discharging, overcurrent, overheat and short circuit for battery clusters. Real-time monitoring of battery safety status, fault diagnosis, and warnings are provided.

EMS

ECO-EMS series products adopting an integrated architecture design, the system is suitable for user-side ESS, microgrid and PV-plus ESS and more. It ensures that the system operates optimally at all times, maximizing overall benefits and shortening ROI.

PRODUCT SPECIFICATIONS

DC Part
Cell Type	LFP 3.2V/280Ah
PACK	17.92kWh/1P20S
Battery System	215kWh/1P240S
Voltage Range	672~864Vdc
Rated Voltage	768Vdc
AC Part
Rated Power	100kW
Max. Power	110kW (60s)
THDi	＜3%
DC Ratio	＜0.5%Ipn
Nominal Voltage	400Vac
Power Factor	-1 lagging~1 leading
Nominal Frequency	50/60 Hz
General
Efficiency	≥90%
Charge/Discharge Rate	≤0.5P
DoD	95%
Cycle Life	≥8,000 times
Switching Time	＜100ms
Connectivity	Ethernet /RS485
Ingress Rating	IP55
Cooling	Forced Air Cooling
Operating Temperature	-25℃~55℃
Humidity	0-95%RH, non-condensing
Noise	≤75dB
Altitude	≤2,000m (derating above 2,000m)
Fire Safety	Aerosol + Active Warning
Dimensions (WDH)	1,2501,3002,400 (mm)
Weight	2,500kg
Compliance	UN38.3, IEC61619, UL1973, UL9540 and CE-EMC

Main Features

Economical and Efficient : Conversion efficiency over 90%, DOD over 95%
Safe & Reliable: IP55 protection level, optimized ventilation design, cells temperature difference within 5ºC.
Compact: 1.6m² footprint only, easy transportation & fast installation.
Flexible Expansion: Modular design, simplified parallel expansion, fast expansion.
Self-developed: Self-developed PACK, PCS, BMS and EMS with good product compatibility.
Smart O&M : Diversified O&M access, both on APP & Cloud.

Application

Elecnova ESS solutions can be widely used in these scenarios: Industrial Park,Factory ,Microgrid,EV Charging station,Commercial complexes,Data Center and so on.

Click here to send an inquiry to get quotation and have a chance to get a $100 coupon, look forward to working with you!

Product Packing

Elecnova Energy storage 2.4MWh energy storage project successfully connected to the grid! The project adopts advanced energy storage technology and equipment, which has the characteristics of high efficiency, stability and safety.

Company Profile

Shanghai Elecnova Energy Storage Co., Ltd. is a technology-based enterprise who focus on overall solutions for erstorage systems. Our company have the overall supporting capability for the system integration of PACK, PCS, BMElecnova aims to meet the diversified energy requirements of segmented markets and customers, with products athe core and quality as the cornerstone. We are committed to providing high-quality customized products and seivarious energy consumption scenarios on the power generation side, grid side, and user side.

Exhibition

FAQ

Q:Who are we? Are you trading company or manufacturer ?
We are manufacturer.We are based in Shanghai, China, start from 1998. There are total about 600+ people in our company.

Q:Can you supply OEM &ODM service?
A:Yes, but there is a minimum order quantity required.

Q:Can you ship your battery products by sea or by air?
A:We have long-term cooperated forwarders who are professional at battery shipment.

Q:How long is the warranty?
A:Our warranty is from 5~10 years.

Q:Why should you buy from us not from other suppliers?
Elecnova is a professional manufacturer of energy storage system .Our company specializes in the production of PCS,Battery PACK,BMS,EMS and all in one cabinet.

Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.

Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
