100% EL TESTING, 100% IV TESTING, 100% DIGITAL WORKSHOP
In strict accordance with the German 5S technical standard, our production workshop has marked the production time, model, quantity, and other information for each raw material. Successfully ensure the high quality and efficiency of finished products.
PVMARS solar products have passed TUV, IEC, ISO, CE, and RoHS quality certifications.
Before leaving the factory, our testers will perform no less than 120 extreme impact tests, and all kinds of inspections in order to get your approval.
With PVMARS solar IoT, through your phone or computer view real-time performance data of your solar system, such as solar panel power generation, battery capacity, etc., and receive timely maintenance and safety alerts to extend the life of your solar system.
At the same time, your dedicated engineers will help you adjust the data through IOT. Double protection!
As the name implies, 3 phase AC voltage has at least three fire lines, and in these three fire lines in physics, we simply give different characters (there may be some differences between different countries, but generally defined as R, S, T).
R+ S + T = 380V or 400V (±5%-10% floating, can be customized for special voltages 180Vac/200Vac, etc.)
If you also have a 220v device, it is usually achieved by a zero line, and in logistics, we assign the character N
R+ N = 220v, S + N = 220v, T + N = 220v
We can use both three-phase and single-phase devices together in one Three-phase solar power system
For most 220VAC appliances, the voltage is single-phase. Such as air conditioners, fan, light, TV, and so on.
For most 380VAC-450VAC appliances, the voltage is three-phase. Such as motors, power pumps, central air conditioning, industrial equipment, and so on.
Your dedicated engineers are ready to start customizing your solar clean energy system!
Shingled/HJT solar panel, USA TR Technology panel, higher efficiency, longer life
Vmp:39V – Voc:47.13V – Imp 12.3A – Isc:12.91A
25 years guarantee (CE TUV).
Strong anti-cracking, heat spot protection

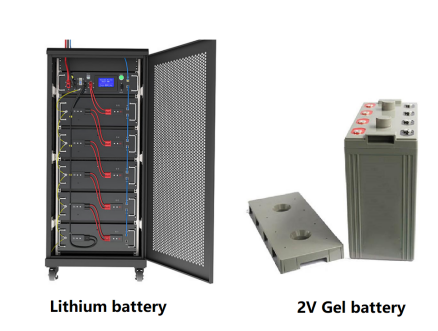

Solar batteryCapacity: 2V800Ah-2000Ah gel battery or Lithium battery or flow battery optional
The latest in through-wall welding and full-sealing technology.
More suitable for motor loads.
Service life: 8-10-15 years

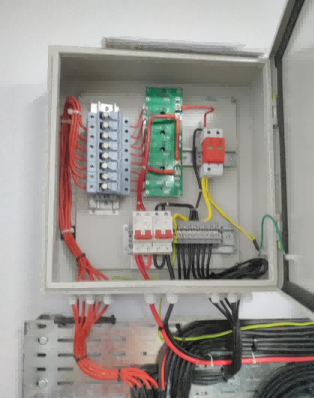

PV combiner boxH4T-H10T 360VDC-384VDC optional
Multiple solar panel string inputs
PV array wiring simplified, controller protection,
Wide range of DC input voltages, max circuit voltage: 1000V
Reliable thunderstorm & surge protection

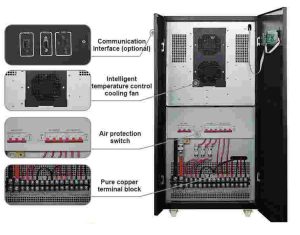

250kW Solar inverterThree Phase Solar Inverter power:
250kW/360VDC-384VDC optional
AC charger 10-30A
100% Mitsubishi brand IGBT materials
Bypass function with AC charger, against short-circuit and over-load protection, high-voltage and low-voltage stable protection
Inverter appearance color can be selected

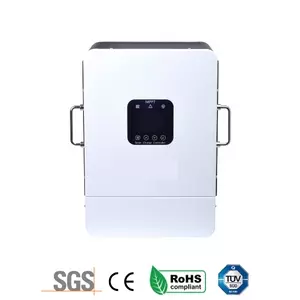

MPPT solar controllerReal MPPT solar controller
MPPT efficiency >99.9%, Max input voltage:800V various protection functions

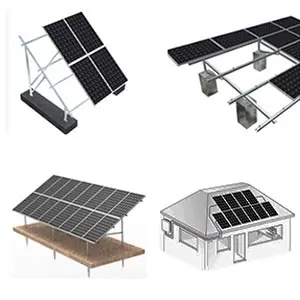

Solar Panel Rack/BracketFull set for Slope, Flat or Ground roof optional
Including complete fittings
Wind load: 55m/s, snow load:1.5kn/m2
Structure: Anodized aluminum + stainless steel
Can be customized as per user’s requirement

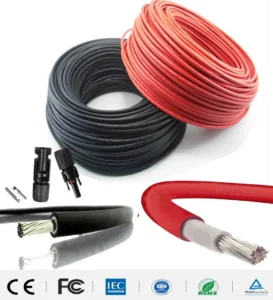

Solar Cables and Accessory1) Copper row for connection to battery
2) 4mm2 PV cable 800M, 25mm2 cable 100M
3) full set of install tools, terminals and MC4 and 2P200A switch box

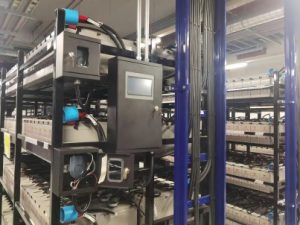

BMS System For BatteryReal-time monitoring 1 set UPS Built-in web server for data logging and reporting for battery cell voltage, internal temperature (Negative pole), Impedance (Omic Value), SOC, and SOH Auto-balancing Batteries.
– Support SNMP, Modbus TCP protocol – Support RESTful API, JSON, XML format – Support SMS/Email alarm – Support 4G data upload to a 3rd party
