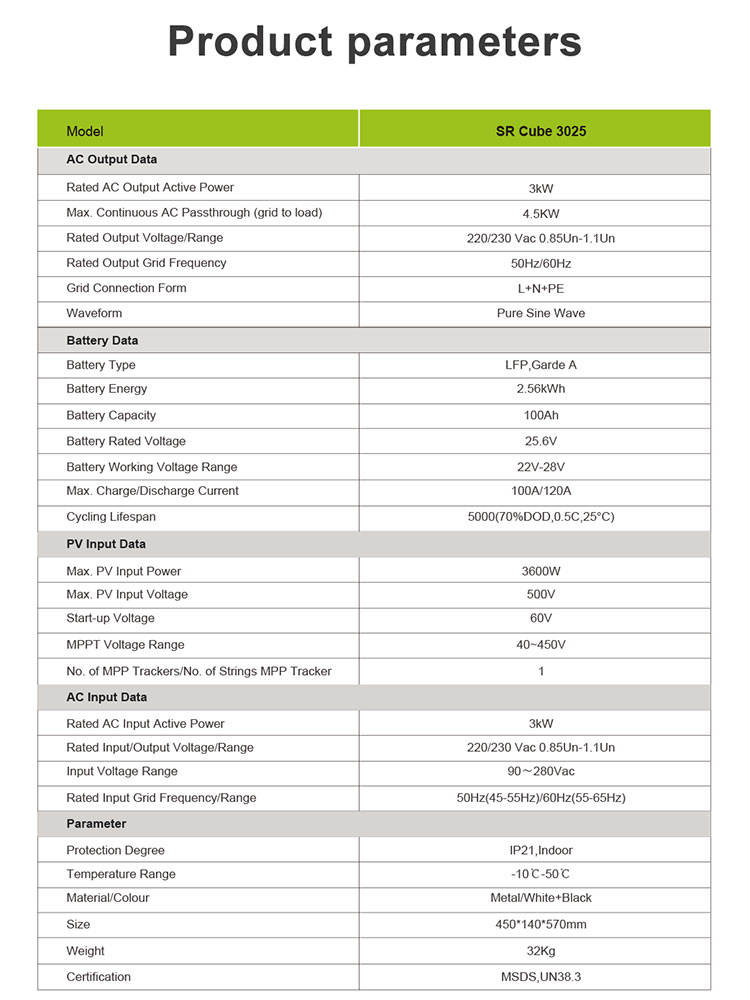

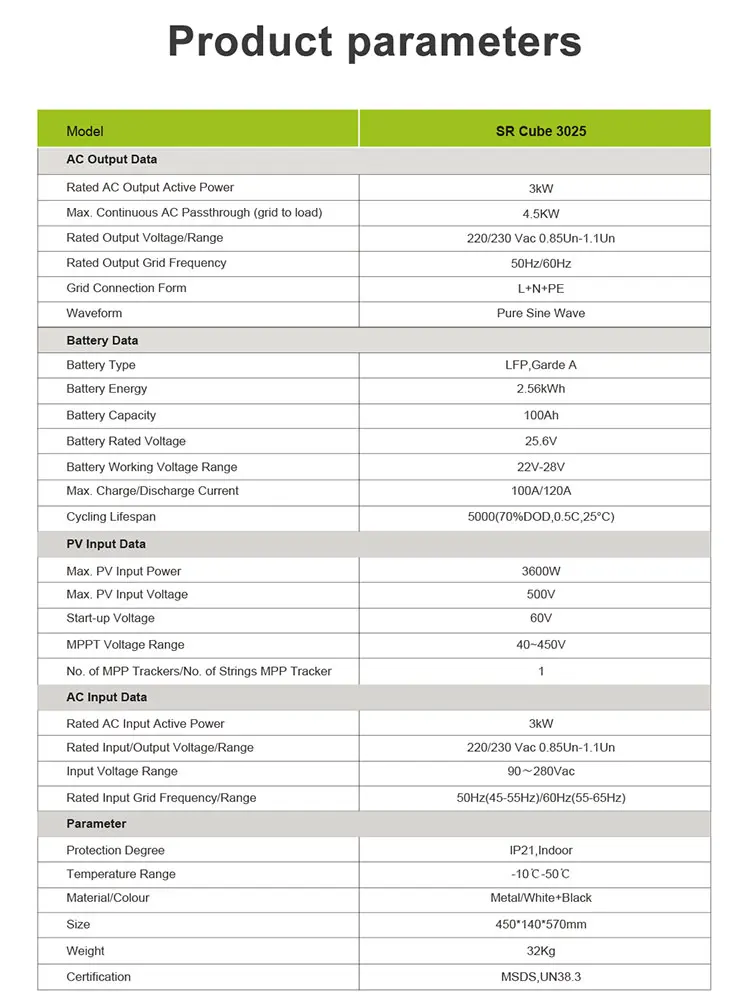

Model
|

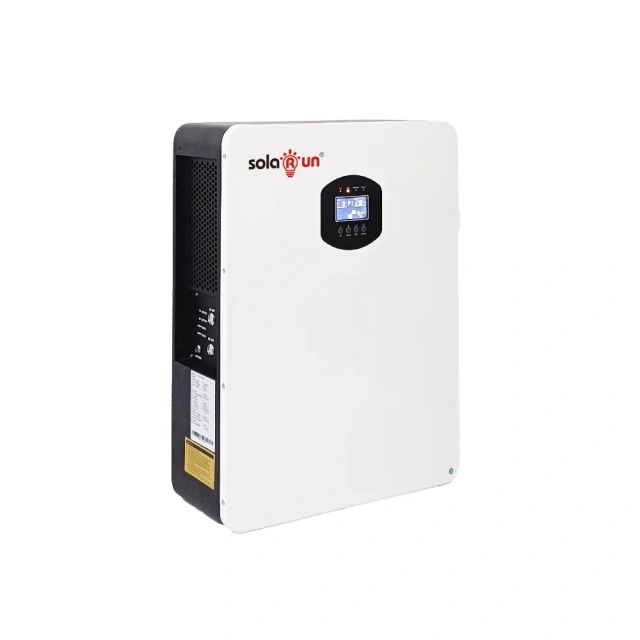

SR Cube 3025
|
|
|
AC Output Data
|
||
|
Rated AC Power Active Power
|
3KW
|
|
|
Max Continuous AC Passthrough(Grid to load)
|
4.5KW
|
|
|
Rated Output Voltage/Range
|
220/230 Vac 0.85Un-1.1Un
|
|
|
Rated Output Gird Frequency
|
50Hz/60Hz
|
|
|
Grid Connection Form
|
L+N+PE
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Battery Data
|
||
|
Battery Type
|
LFP,Grade A
|
|
|
Battery Energy
|
2.56kWh
|
|
|
Battery Capacity
|
100Ah
|
|
|
Battery Rated Voltage
|
25.6V
|
|
|
Battery Working Voltage Range
|
22V-28V
|
|
|
Max. Charge/Discharge Current
|
100A/120A
|
|
|
Cycling Lifespan
|
5000(70%DOD,0.5C,25degree)
|
|
|
PV Input Data
|
||
|
Max. PV Input Power
|
3600W
|
|
|
Max. PV Input Voltage
|
500V
|
|
|
Start-up Voltage
|
40-450V
|
|
|
No. of MPP trackers/No. of String MPP Tacker
|
1
|
|
|
Max. DC Short Circuit Current
|
20A
|
|
|
Number of independent MPPT trackers
|
1
|
|
|
No. of PV Strings per MPPT trackers
|
1/1
|
|
|
AC Input Data
|
||
|
Rated AC Input Active Power
|
3kW
|
|
|
Rated Input/Output Voltage Range
|
220/230 Vac 0.85Un-1.1Un
|
|
|
Input Voltage Range
|
90-280Vac
|
|
|
Rated Input Grid Frequency/Range
|
50Hz(45-55Hz)/60Hz(55-65Hz)
|
|
|
Parameter
|
||
|
Protection Degree
|
IP21, Indoor
|
|
|
Temperature Range
|
-10 dgree-50 degree
|
|
|
Material/Colour
|
Metal/White +Black
|
|
|
Size
|
450*140*570mm
|
|
|
Weight
|
32Kg
|
|
|
Certification
|
MSDS, UN38.3
|
|
