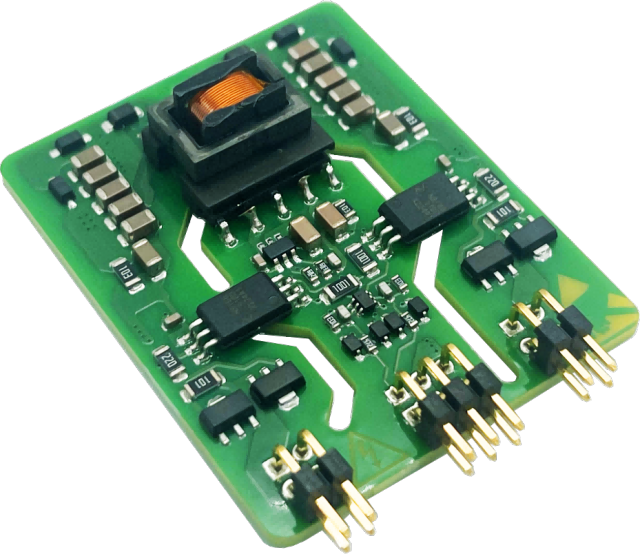

The compact 2FSC0110 gate driver core is designed especially for small and medium power inverter without protection. It supports the operation of up to 1700V IGBT power modules with 15V gate voltage in on-state. The 2FSC0110 features dual-channel with electrical interfaces, and supports 2-level, T-type 3-level, NPC I-type 3-level topologies.
Compact and Highly Integrated
Gate driver solution for 1200V IGBT
Dual-channel
15V gate voltage in on-state
1.2W output power per channel at maximum ambient temperature
10A gate peak current
Electrical interface
-40°C to 85°C operating ambient temperature
Protection
No
Safety Segregation Standard
EN100015
IEC61800-5-1-2007
