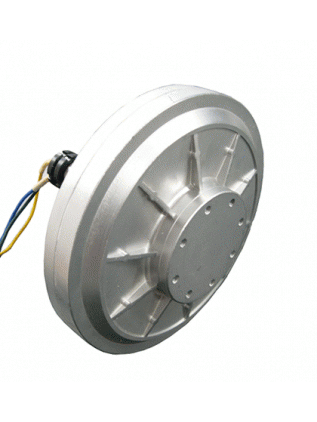

300w Permanent Magnet Generator
250rpm/250rpm/400rpm available
or customization accepted
| Model | AMG0.35KW-320 |
| Rated?power(w) | 0.35 |
| Rated?speed(rpm) | 150 |
| Rated?voltage)(vac) | 24 |
| Rated?Current(A) | 8.4 |
| Efficiency | >80% |
| Resistance?(Line-Line) | - |
| Winding?type | Y |
| Insulation?Resistance | Min(1000V?DC) |
| Leakage?level | <2?ma |
| Start?torque(N*M) | <0.1 |
| Phase | Three?phase |
| Structure | outer?rotor |
| Stator | coreless |
| Rotor | Permanent?magnet?type?(outer?rotor) |
| Gen.?Diameter(mm) | 320 |
| Gen.?Length(mm) | 232 |
| Gen.?Weight(kg) | 20 |
| Shaft.?Diameter(mm) | 45 |
| Housing?Material | Aluminum?(?Alloy?) |
| Shaft?Material | Steel |
