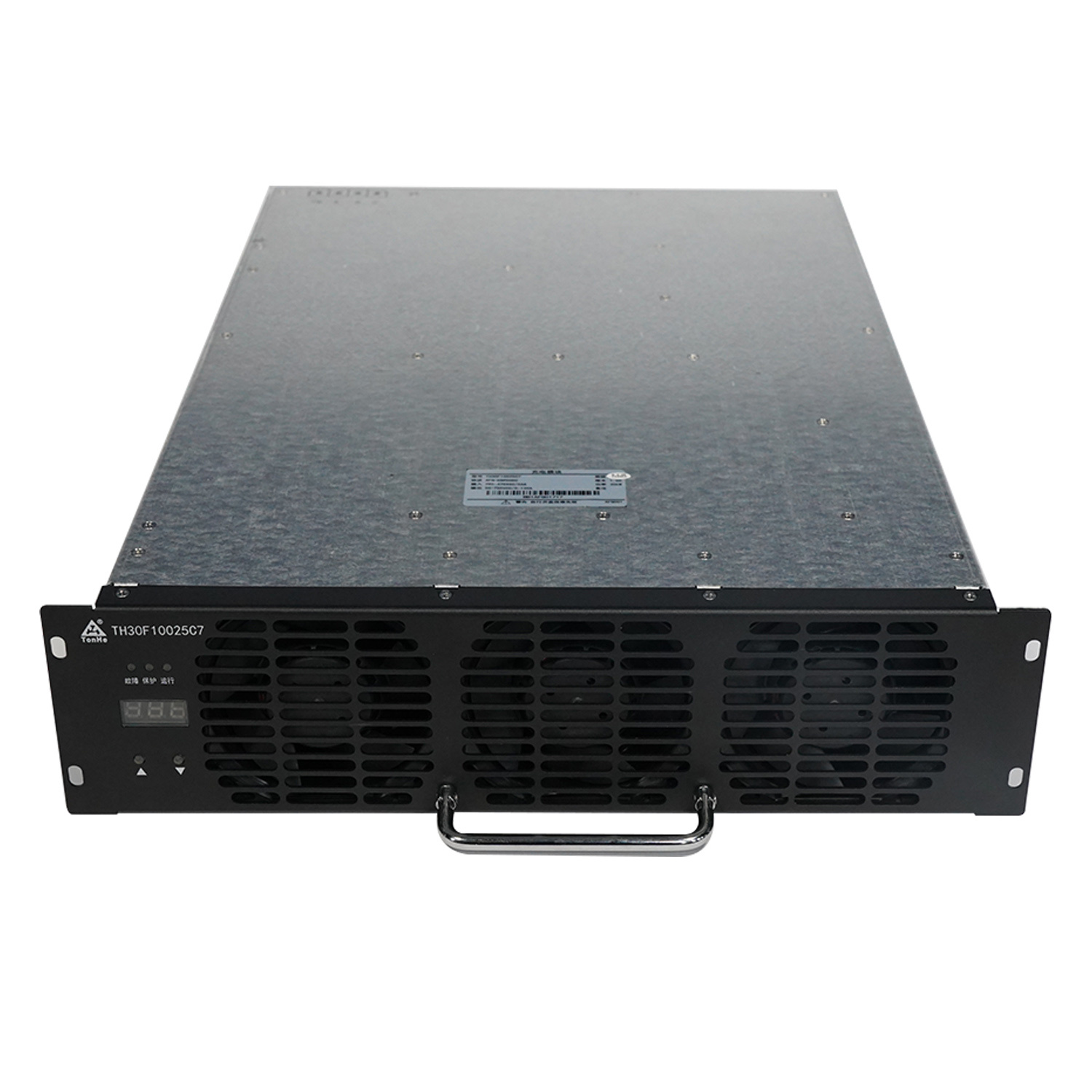

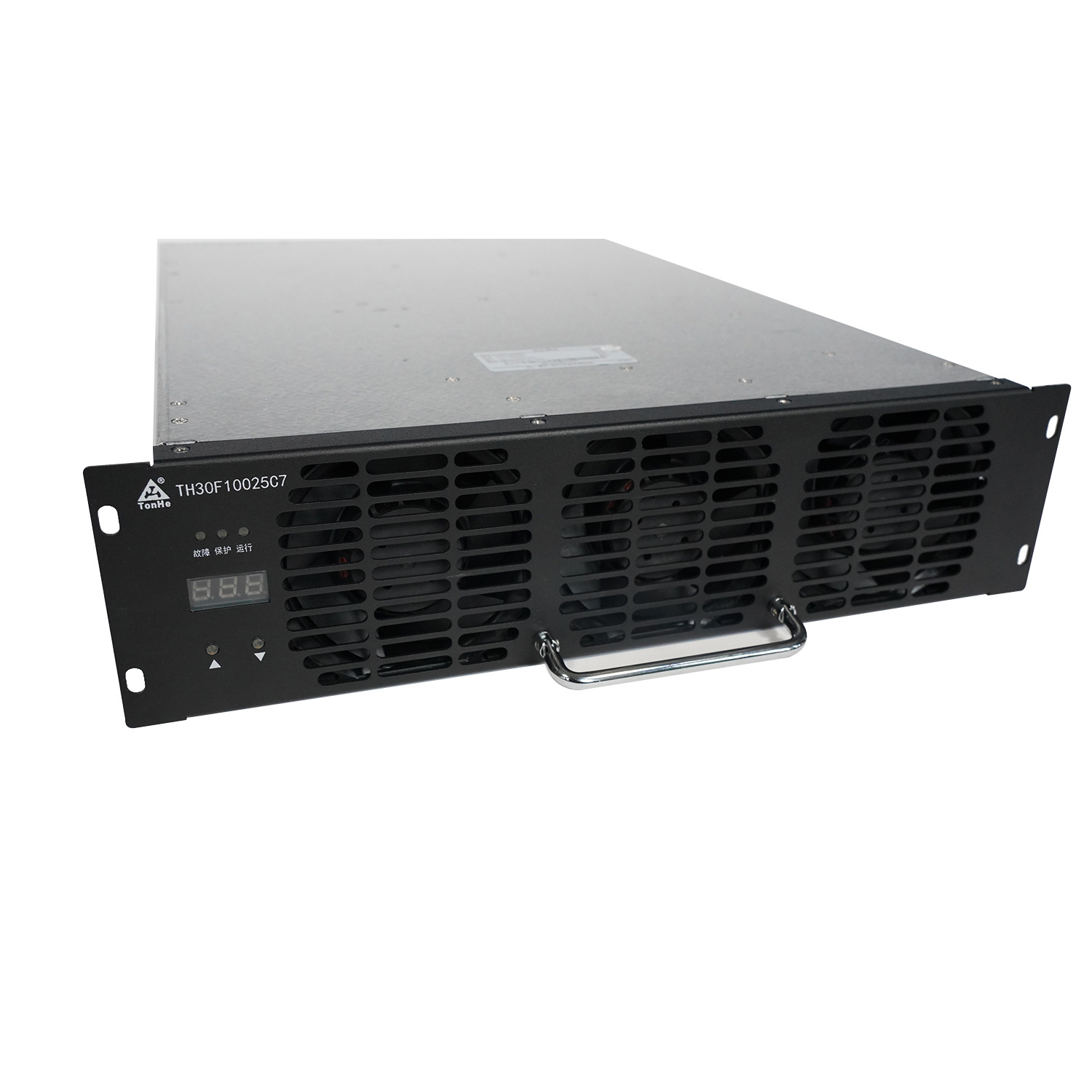

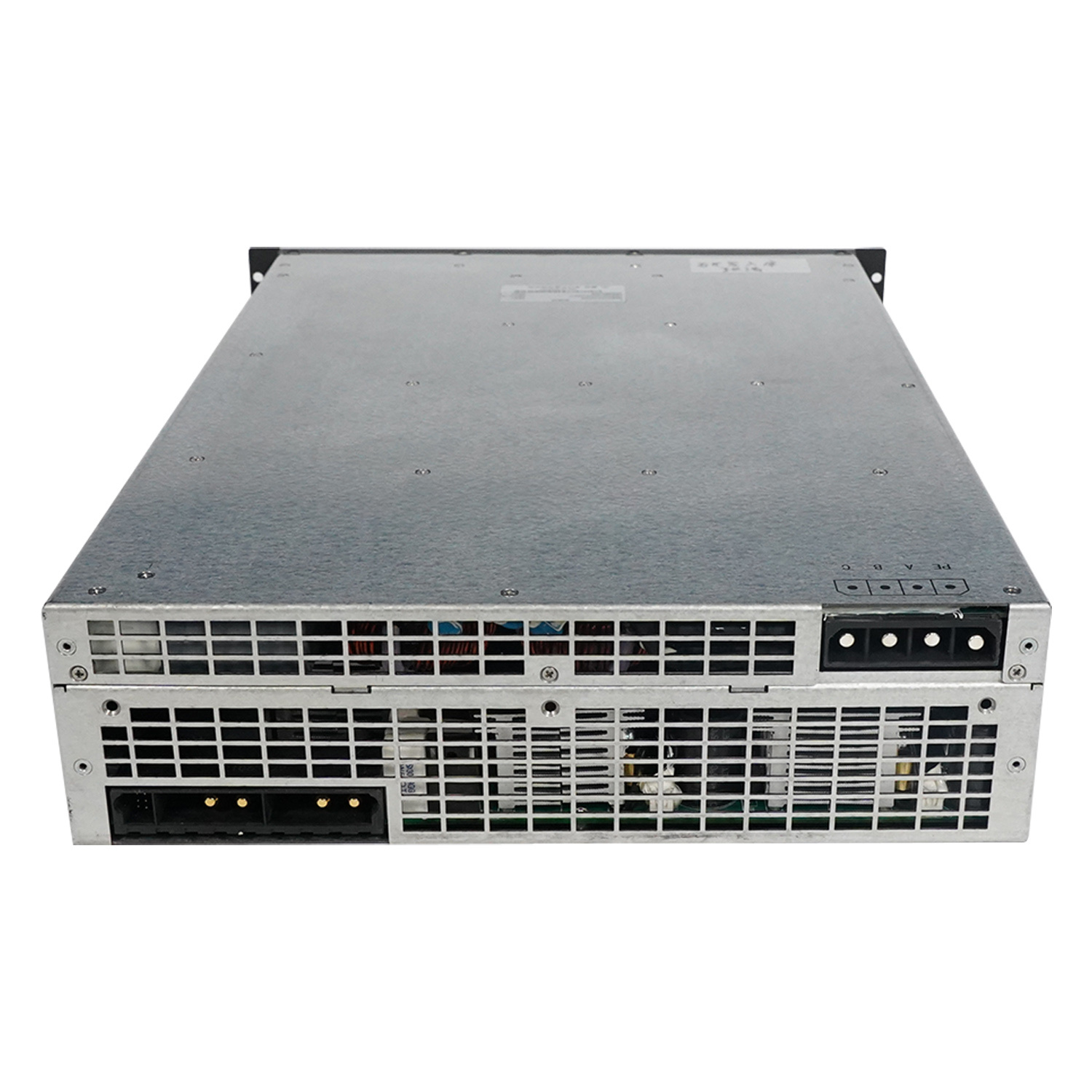

| 30kw/1000v Model | TH30F10025C7 | |
| Input feature | Input voltage range: | 3L+PE, 285~475V AC |
| Input frequency: | 45HZ~55HZ | |
| Power factor: | 20.99 | |
| THD: | 5% | |
| Standby power consumption: | < 12W | |
| Output voltage range: | 150~1000V DC | |
| Output feature | Max output current: | 120A |
| Constant function: | 250~1000V DC | |
| Current range: | 2~120A | |
| Current sharing imbalance | ≤+5% ( parallel average current should be more than | |
| for modules in parallel: | 5A) | |
| Voltage stabilization accuracy: | ≤+0.5% | |
| Current stabilization accuracy: | ≤+1%(load current is in the range of 20%~100%) | |
| Efficiency: | 295.5% | |
| Soft start time: | 3~8 | |
| Communication Protocol: | CAN | |
| Environmental | Workingtemperature(50C output derating: | -30~+75°C |
| Storage temperature: | -40~75 C | |
| Humidity: | %5RH~95%RH no condensation | |
| Cooling: | Fan cooling | |
| Altitude: | 2000m | |
| Others | Dimension (L*H*W): | 435mm* 84mm* 300mm |
| Weight: | ≤20kg | |
| MTBF: | 500, 000 h | |
| IP level: | IP20 | |
