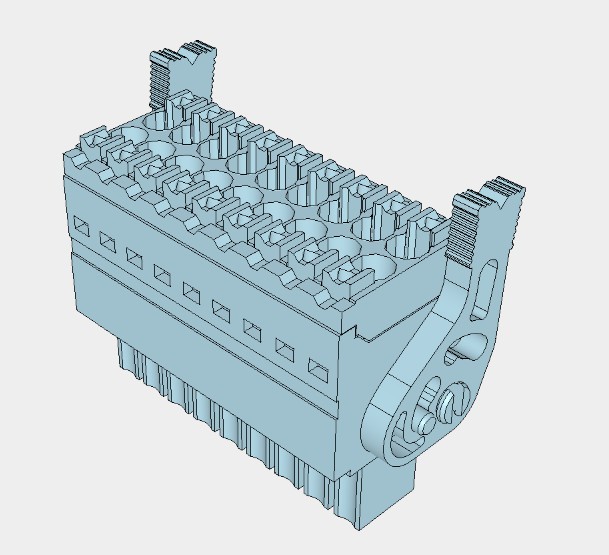

3.50*2.50mm Pitch Female Dual Row Pluggable Terminal Blocks Without Hook With Handle for Energy Storage and Battery Systems

WCON ELECTRONICS(GUANGDONG) CO.,LTD 2002-11

China

Summary

PF350SW-2FXXXXXP1(N) 3.50*2.50mm Pitch Female Dual Row Pluggable Terminal Blocks Without Hook With Handle, designed for high-reliability connections in energy storage and battery systems. Rated Voltage 300 V/AC,V/DC and Rated Current 9.5 AMP, ensures stable and durable performance in demanding environments. Featuring copper alloy contacts with Sn plating, thermoplastic insulation, and a wide operation temperature range of -40°C to +120°C, this connector offers excellent conductivity, corrosion resistance, and insulation resistance of 1000 MΩ Min. Widely used in renewable energy, industrial automation, and power electronics applications where safety and reliability are critical.More

Specifications

Rated Voltage:

300 V/AC,V/DC

Rated Current:

9.5 AMP

Operation Temperature:

-40°C - +120°C

INQUIRY

Description Download

Rated Voltage	300 V/AC,V/DC	Operation Temperature	-40°C - +120°C
Rated Current	9.5 AMP	Contact Material	Copper Alloy
Contact Resistance	20 mΩ Max	Insulator Material	Thermoplastic Plastics
Insulation Resistance	1000 MΩ Min	Contact Plating	Sn
Withstand Voltage	1600 V/AC,V/DC	Packaging	PE Bag
