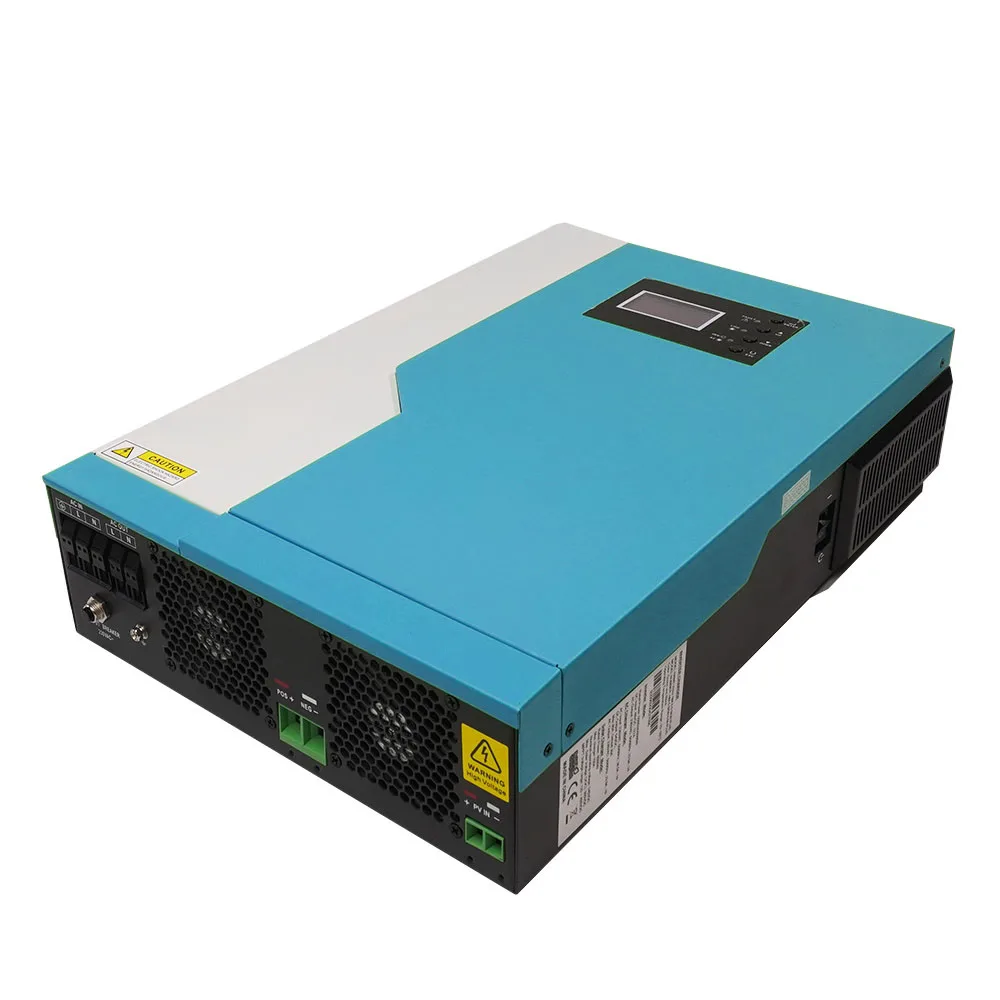

3.5KW 5.5KW 220VAC Off Grid Hybrid Solar Inverter 100A MPPT Solar Charge Controller Can Work Without Battery WIFI Monitor

TTN New Energy Technology (Wenzhou) Co., Ltd.

Wenzhou China

Summary

No.1600641987478

$357.00

Specifications

Application:

Off-Grid Solar System

Inverter Type:

Central Inverter

Output Power:

3500W

5500W

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Output Type

Single Phase

Inverter Efficiency

>95%

Other attributes

Place of Origin

China

Model Number

TTN-MPS-V PLUS 3.5KW 5.5KW+WIFI

Brand Name

TTNergy

Input Voltage

24VDC 48VDC

Output Voltage

230VAC

Output Current

100A

Output Frequency

50/60Hz

Size

10*30*44cm

Type

DC/AC Inverters

Weight

12kg

Application

Solar Power System

Feature 1

Can work no battery

Feature 2

PV to AC efficiency is much higher

PV charge current

80A

Normal input voltage

48VDC

Max PV input

120V-450V

Max AC input voltage

500Vac

Surge Power

11000VA

Power Consumption

Our Warehouse Location

CN, USA, Germany, UK, Australia, Poland, Russia, Japan

Packaging and delivery

Selling units

Single item

Single package size

63X42.5X25 cm

Single gross weight

12.500 kg

Products Description

TTN Hybrid Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

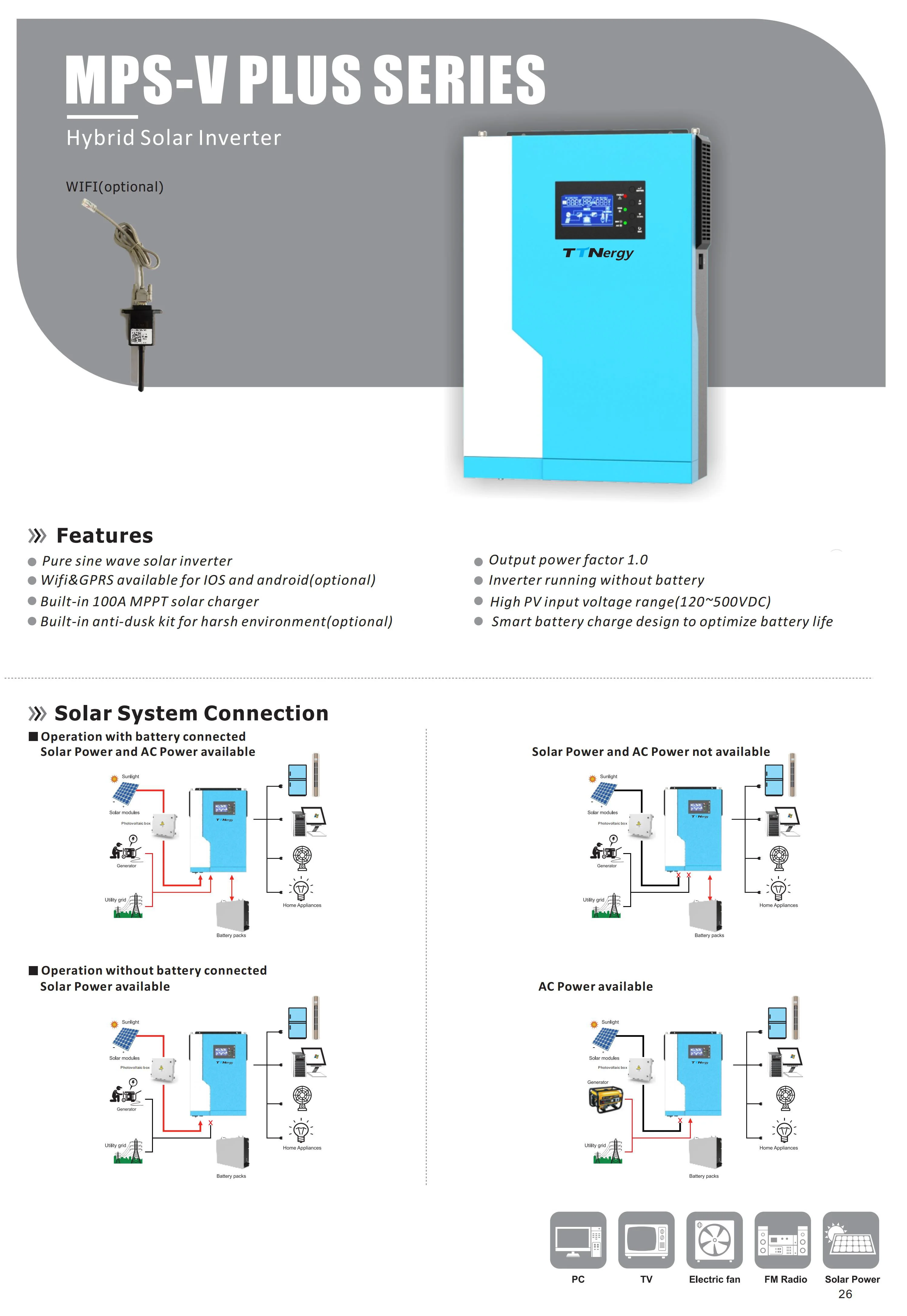

TTN-MPS-V PLUS 3.5/5KW

Higher yields / Safe & Reliable / Smart / User-friendly

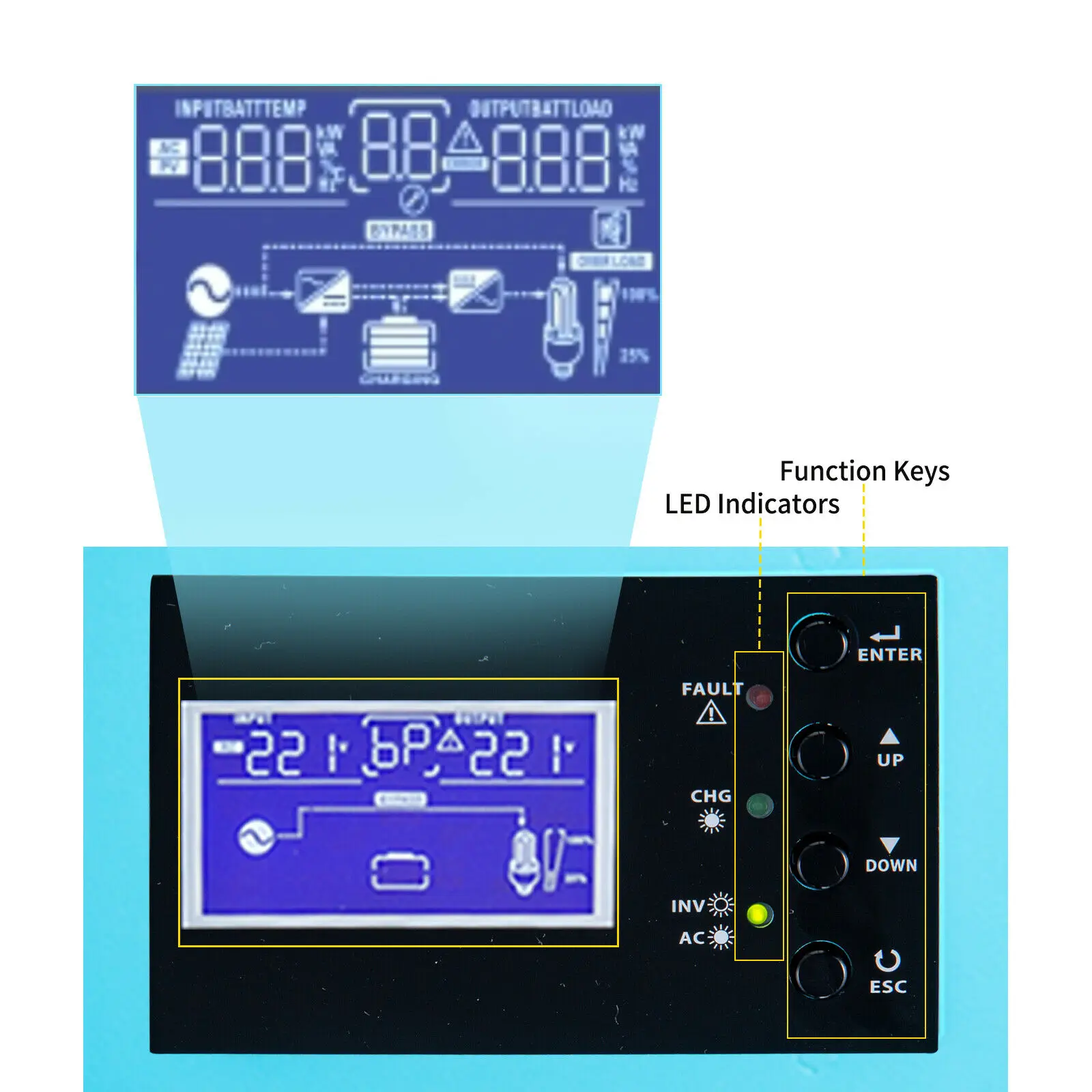

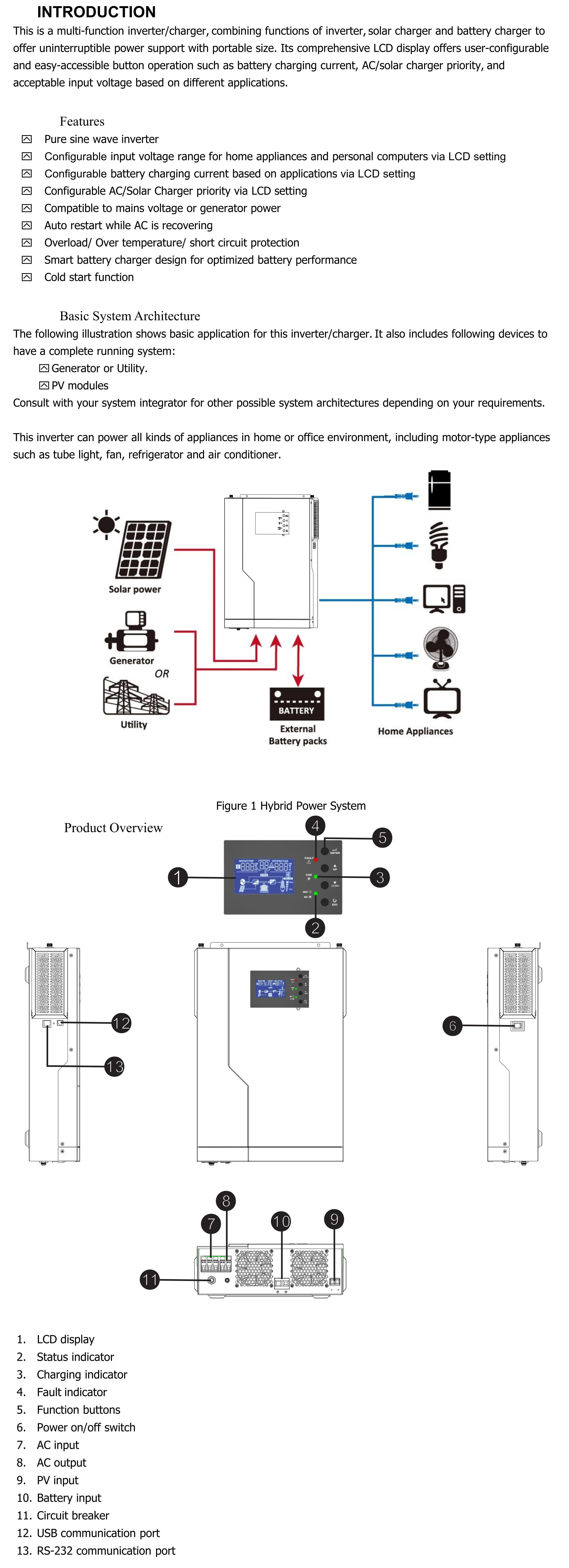

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

High efficiency pure sine wave inverter (PF=1)

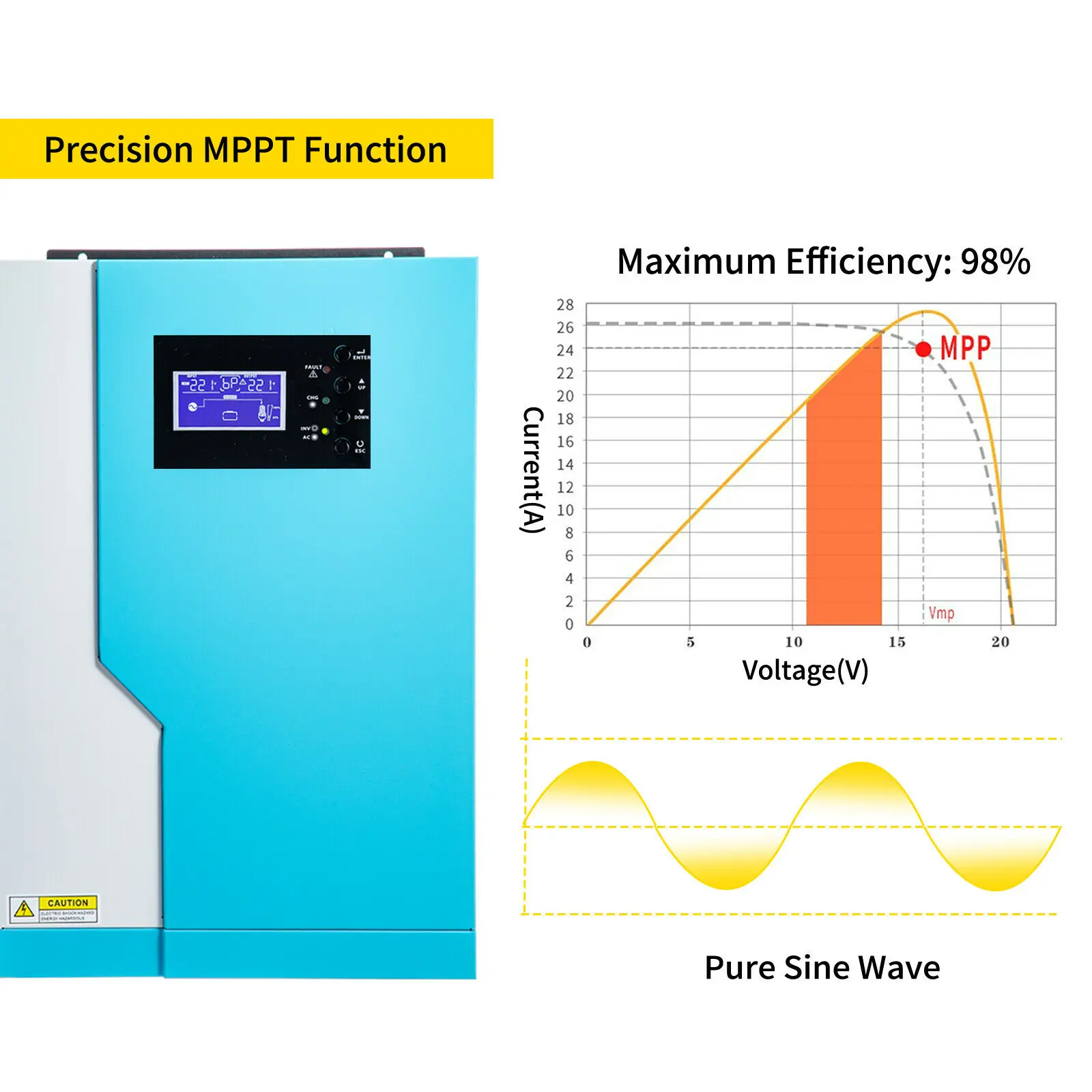

Wide PV input range (120VDC-500VDC) 100A MPPT SCCIntelligent functionality enables utility and solar input periodizationWide utility input range (90Vac-280Vac) for unreliable gird even In the most challenging environmentsField serviceable with replacement boards and spare partsMonitor, troubleshoot or communication with RS232/RS485.Working with batteriesAnti-dusk kit for harsh environment(optional) PV and electricity complementaryWiFi Monitoring Function (optional) Use with lithium batteries

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.

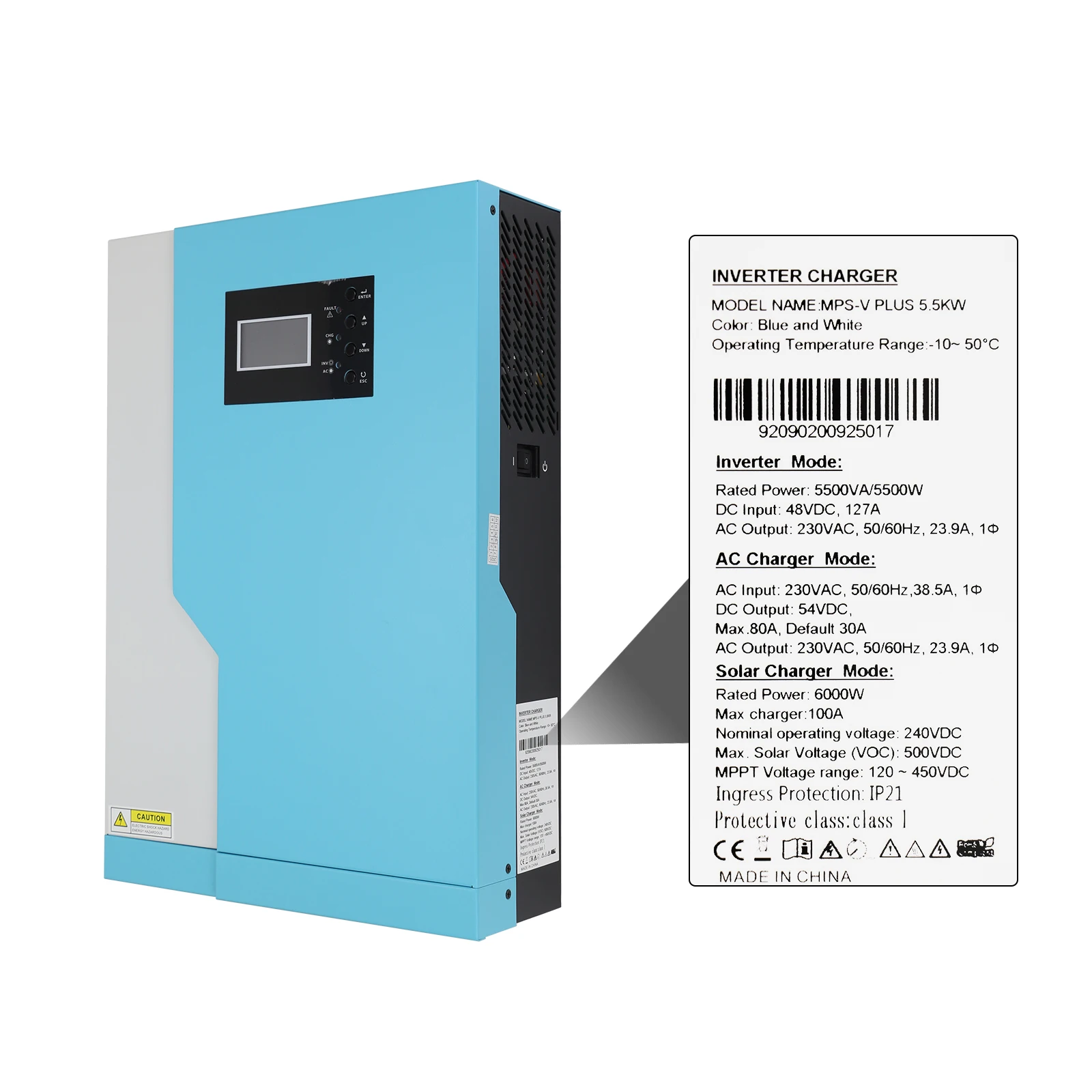

Model	TTN-MPS-V PLUS 3.5kW	TTN-MPS-V PLUS 5.5KW
Rated Power	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Selectable Voltage Range	170～280VAC(For Personal Computers)
Selectable Voltage Range		90～280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficienc(Peak)PV to INV	97%
Efficienc(Peak)Battery to INV	94%
Transfer Time	10ms(For Pensonal Computers);20ms(For Home Appliances
Battery & AC Charger
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	80A
Solar Charger
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120～450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Charging Current	100A	100A
Maximum Efficiency	98%
Physical
Dimension,DWH(mm)	100300440
Net Weight(kgs)	11	12
Communication Interface	USB/RS232/GPRS/WIFI
Operating Environment
Mumidity	5% to 95% Relative Humidity(Non～condensing)
Operating Temperature	0℃～55℃
Storage Temperature	-15℃～60℃

NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.

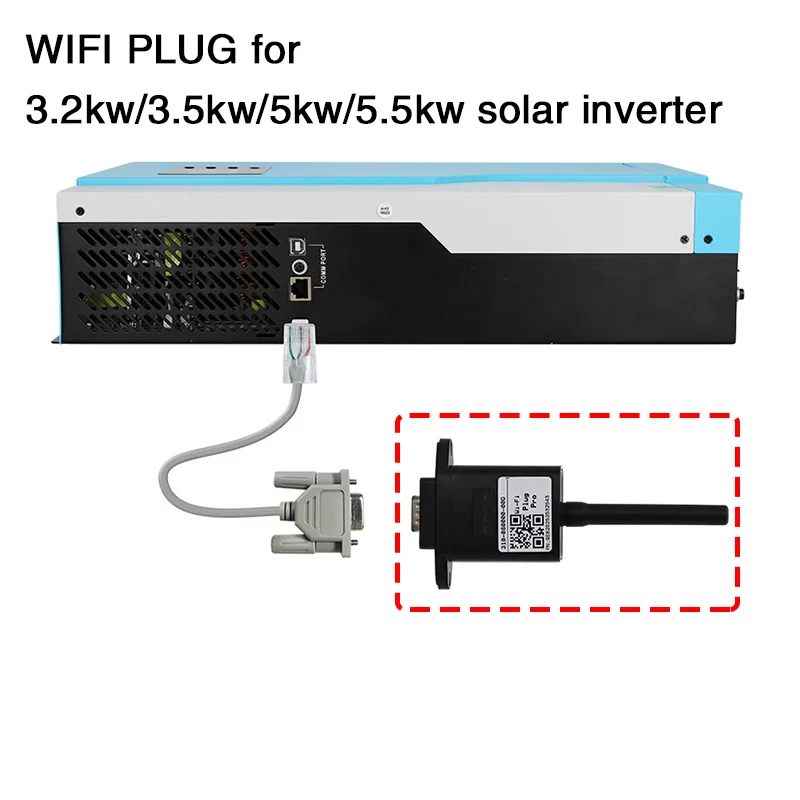

NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
