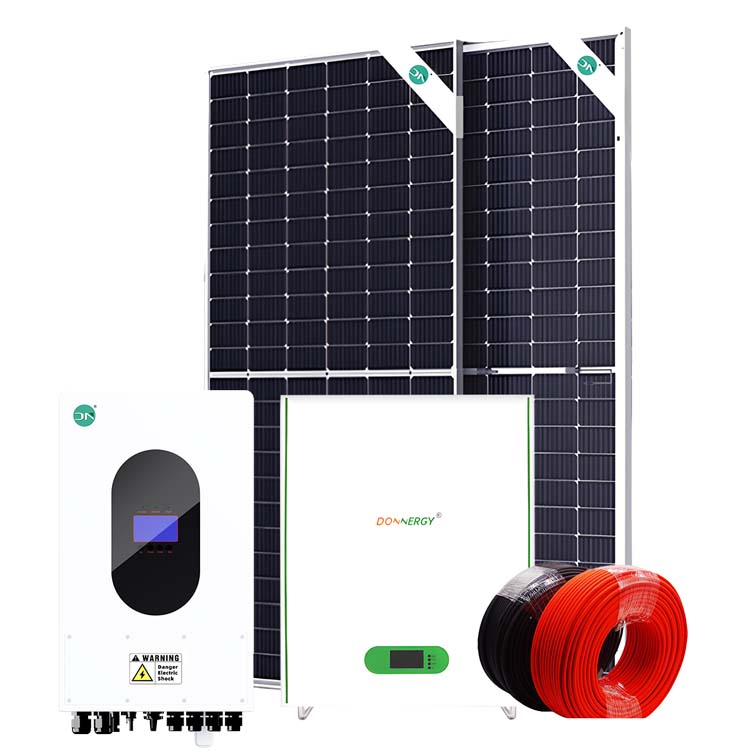

all-one-in system introduction 3.6KW Inverter Multiple operating modes, on-grid, off-grid and UPS, MPPT charger built in, Single Phase, 2 MPPT, 97.8% efficiency, 51.2V nominal battery voltage. Battery more than 6000 cycles, IP20 protection level, 90mm ultra-thin, easy install. Solar Panel is 410W, 37.23V length 1722mm，hight 1134mm, 21.5Kgs feature, and stronger resistance to hot spots and overheating, maintaining high reliability.
It supports ON grid and off-grid hybrid modes, and is very suitable for off-grid power grids. It can provide stable power output for small fishponds, orchards, and breeding bases.
Maximum power (Pmax/W): 410W
Dimensions: 1722 x 1134 x 30mm
Efficiency: 21%
Cell Type: Monocrystal 182
No. of Cells: 108(6×18)
Net Weight: 21.5Kgs
Open Circuit Voltage-Voc(V): 37.23
Short Circuit Current-lsc(A): 14.00
Maximum Power Voltage (Vmp/V): 30.95
Maximum Power Current (Imp/A) 13.25
Warranty: 10 Years
Rated Power Output to Utility Grid (W): 3600
Nominal Battery Voltage (V): 51.2
Max. Continuous Charging Current (A): 80
Max. Continuous Discharging Current (A): 85
Start-up Voltage (V): 150
Number of MPP Trackers: 2
Max. Efficiency: 97.8%
Protection Level: IP65
Dimensions (W x H x D mm): 350 x 580 x 230
Weight (kg): 25±0.5
Nominal energy: 5120Wh
Type: LiFePO4 Battery
Nominal capacity: 100Ah
Nominal voltage: 51.2V
Dimensions (W ×H × D mm): 660 x 830 x 190
Monitoring communication: CAN/RS485/RS232
Weight (kg): 52
Protection Level: IP20
Donnergy intelligent energy system support Dynamically adjust the source of energy use, give priority to off-grid mode and economic mode, and maximize economic benefits.
