38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems

38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems

  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
Summary
The 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell delivers exceptional performance with up to 4000+ cycles, making it an ideal choice for energy storage and solar power systems. Featuring Grade A LiFePO4 chemistry, this lightweight and high-efficiency battery offers 1/3 the weight of lead-acid alternatives, 95% usable capacity, and a stable discharge curve. Designed for durability and reliability, it supports a wide range of applications including RVs, marine, off-grid systems, and outdoor camping power solutions. With a maximum continuous discharge current of 100A and peak discharge up to 250A, this cell ensures consistent power delivery even under high-demand conditions. Built for long-term use in temperatures ranging from -20°C to 60°C, it is a superior alternative to traditional battery technologies.More
Specifications
Nominal Voltage:
3.2V
Nominal Capacity:
10Ah
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems
  • 38120 3.2V 10Ah Cylindrical LiFePO4 Battery Cell High Cycle Life for Energy Storage and Solar Power Systems

3.2V10Ah cell performance curves show:

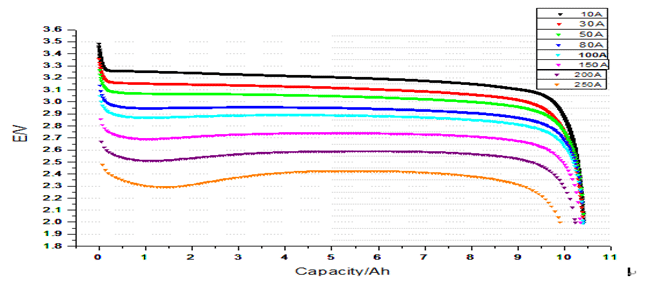

High rated discharge performance curve:

1

38120 cell peak discharge test curve:

2

3.2V10Ah cell testing curve(Cycle testing 3500?times?based on 1C charge & discharge,100%DOD/time,capacity retention?≥80%.)

3
