Battery Specification

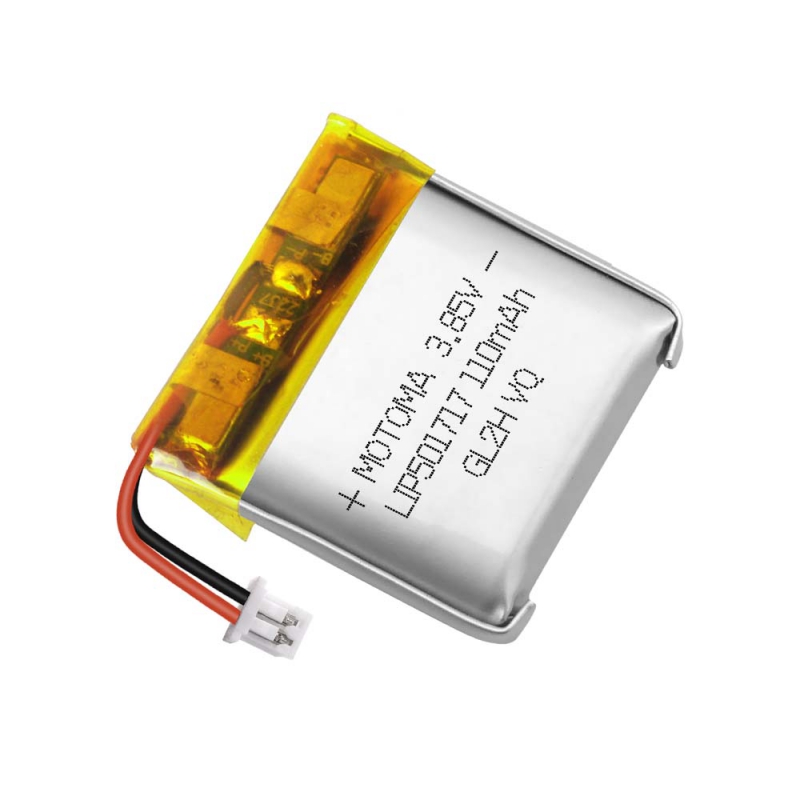

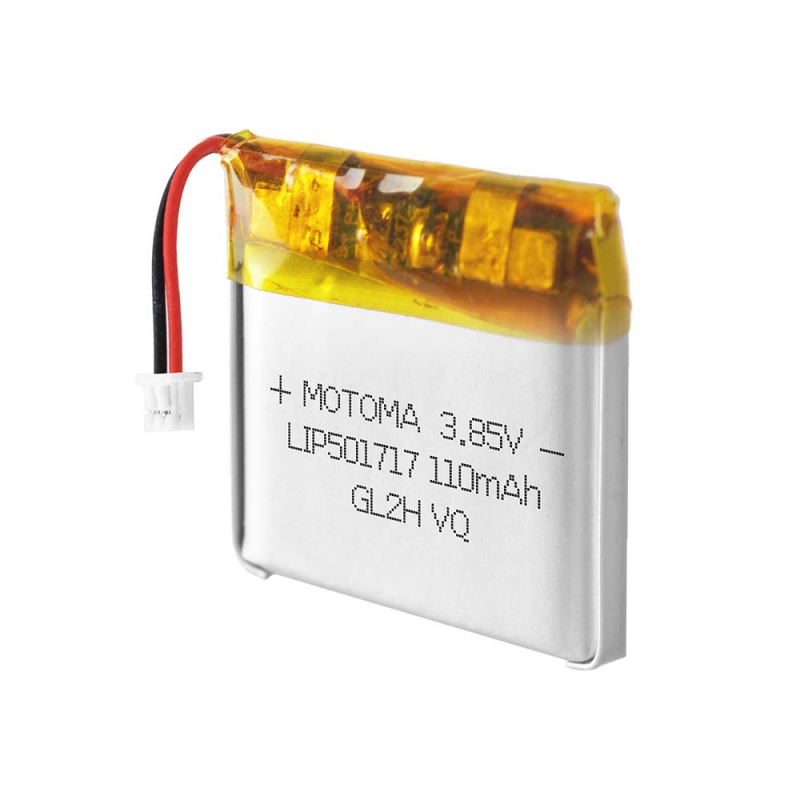

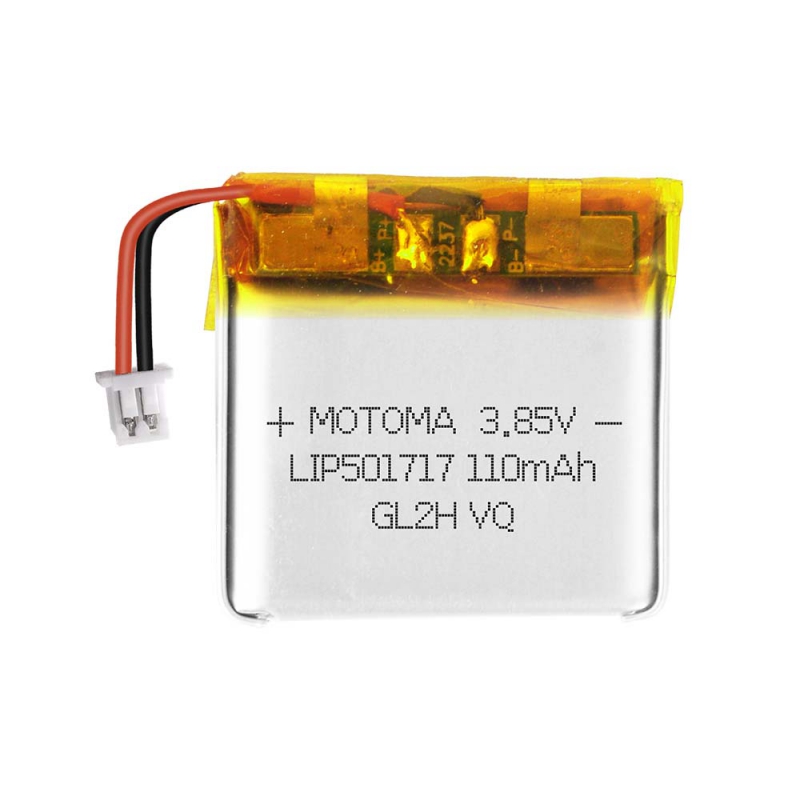

| Battery model | 3.85V LIP501717 110mAh |
| Nominal voltage | 3.85V |
| Nominal capacity | 110mAh |
| Minimum capacity | 110mAh |
| Charging voltage | 4.4V |
| Standard charging current | 22mA (0.2C) |
| Max. charging current | 330mA (3.0C) |
| End current | 11mA (0.01C) |
| Standard discharging current | 22mA (0.2C) |
| Max. discharging current | 110mA (1C) |
| End voltage of discharge | 3.0V |
| Dimension of cell | 5.0*17*17mm |
| Charging temperature range | 0~45℃ |
| Discharging temperature range | -20~60℃ |
| Protection Circuit Module (PCM) | Overcharge protect,over-discharge protect,over current protect, short-circuit protect |
Certificates
UL1642,UL2054, CB,KC, IEC62133, PSE, CQC, UN38.3, MSDS, Reach, RoHS etc.
