40ft Containerized Solar Energy Storage Battery Container Outdoor 1MWh 2MWh 3MWh LiFePO4 Battery on Grid Storage System

Sicon Chat Union Electric Co., Ltd.

HeiBei,China

Summary

No.1601234502869

$320000.00

Specifications

Capacity:

2150kWh

System Voltage Range:

1000~1500 V

System Energy Range:

1-5 MWh

Container Size:

40 ft

INQUIRY

Description Download

Key attributes

Place of Origin

Hebei, China

Battery Type

LiFePO4

Brand Name

SCU

Model Number

GRES-2150-1000

Dimension (L*W*H)

12196*2438*2591mm

Weight

25000kg

Communication Interface

Ethernet

Communication Port

rs485

Grid connection

Hybrid grid

Cooling

Air Cooling

Battery Capacity

2000kWh

PCS Power

50~1000kW

Container

40ft

Grid Connection Type

On/off grid/Hybrid

AC Voltage

AC380V/400V 3P4W

Frequency

50/60Hz

BMS

Active equalization BMS, 2 level

Certification

CE, EN50549, VDE, G99

IP Rating

IP54

Warranty

3~5 years

Packaging and delivery

Selling Units

Single item

Single package size

121X243X259 cm

Single gross weight

25000.000 KG

Product Description

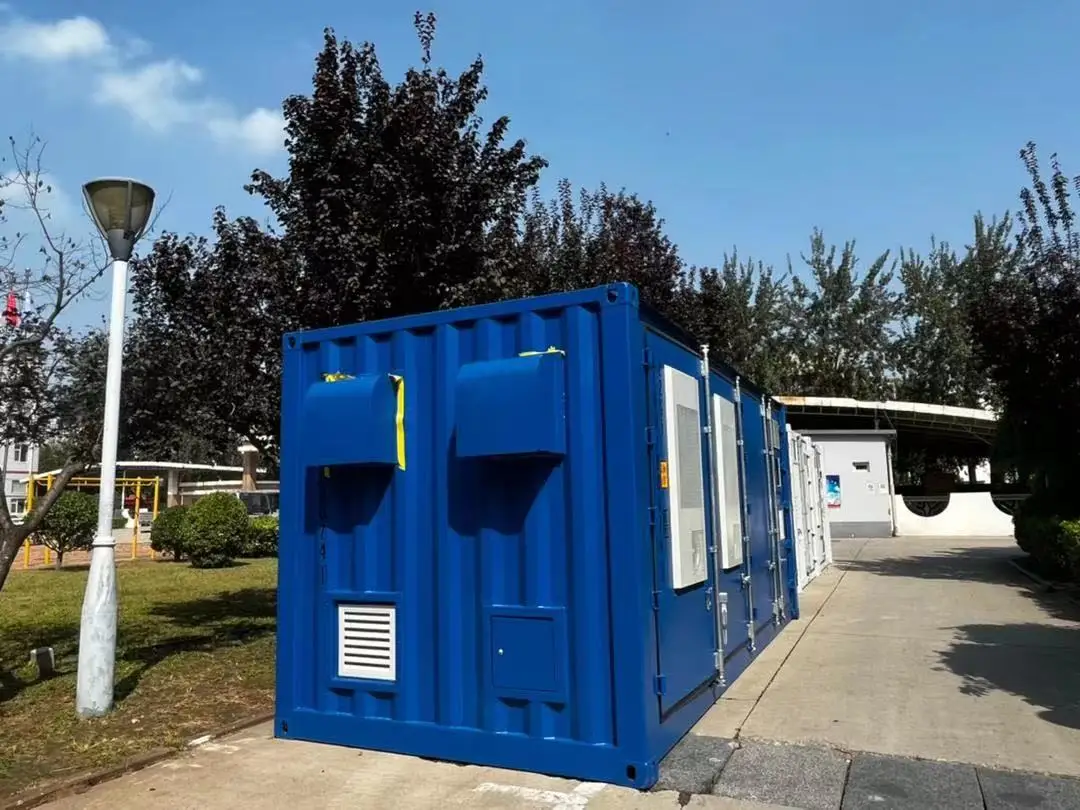

40ft Containerized Solar Energy Storage Battery Container Outdoor 1MWh 2MWh 3MWh LiFePO4 Battery On Grid Storage System

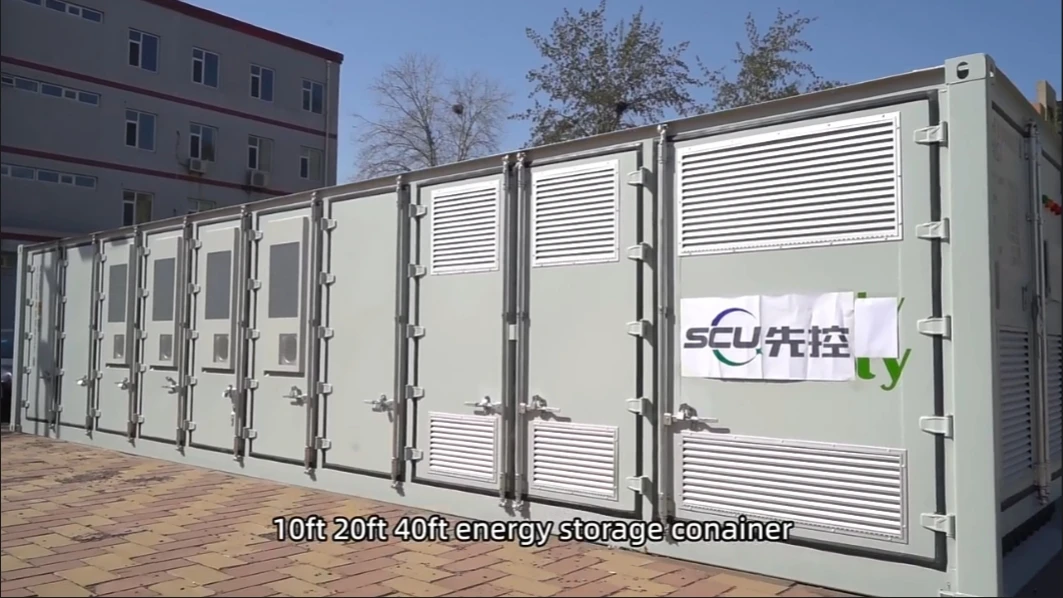

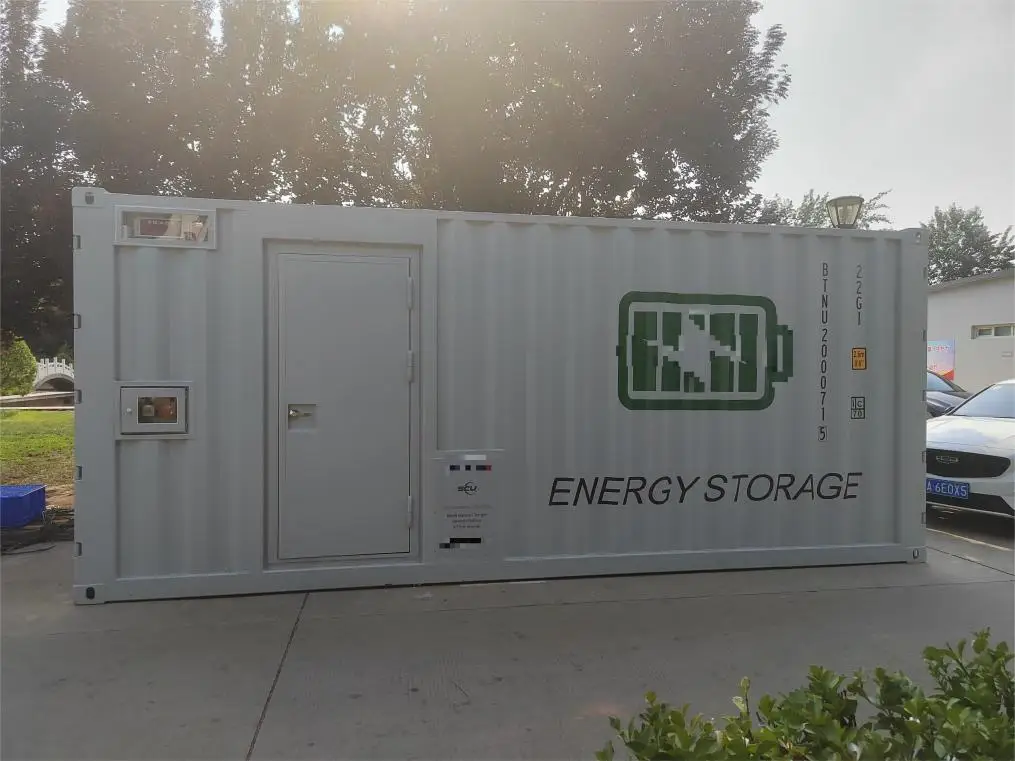

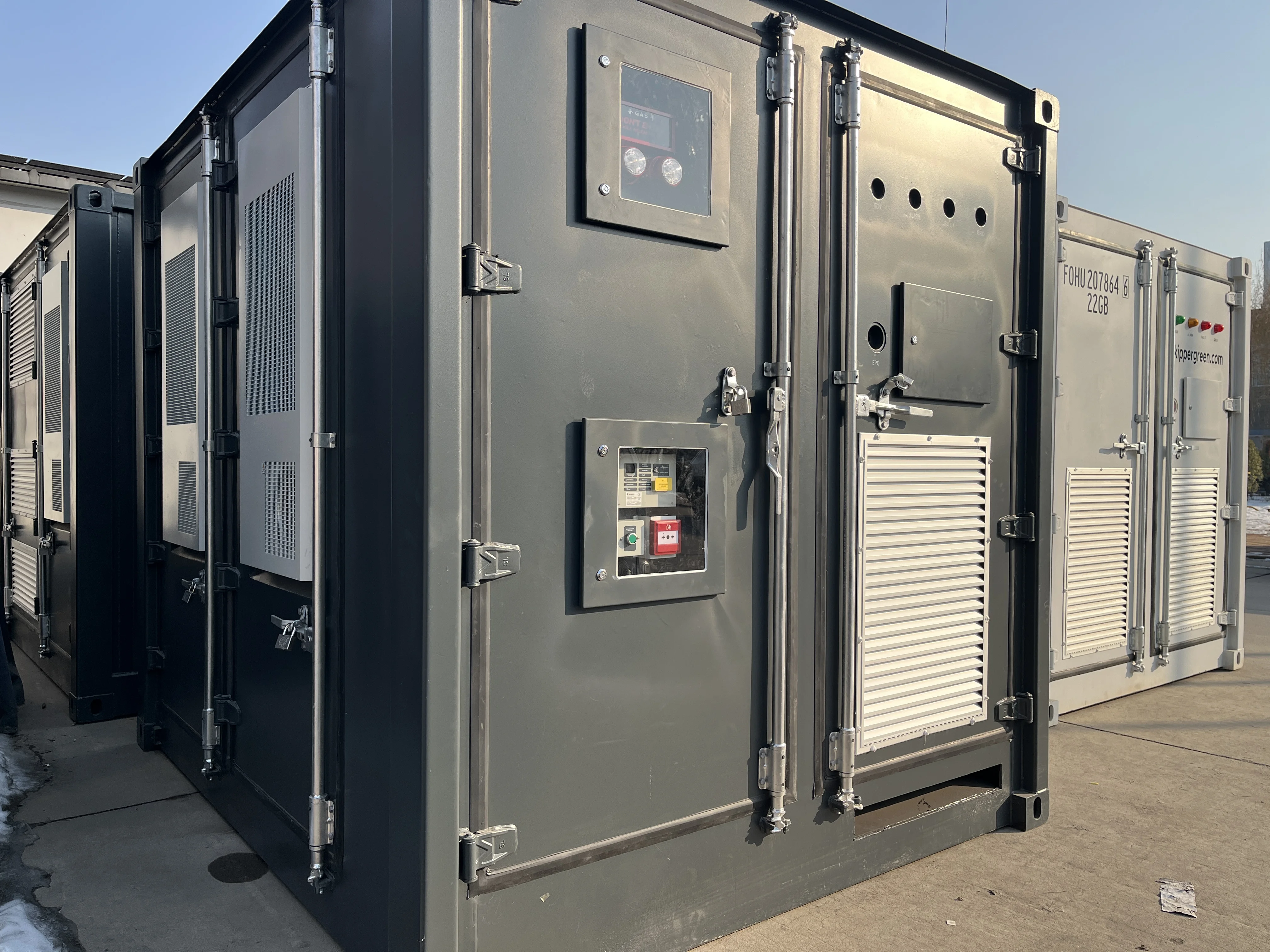

SCU uses standard battery modules, PCS modules, BMS, EMS and other systems to form standard containers to build large-scale grid-side energy storage projects. The standardized 40ft container system can be configured with 2MWh 1MW energy storage system. The standardized and prefabricated design reduces user customization time and construction costs, and reduces safety hazards caused by local installation differences and management risks. It meets the application needs of regional power grid peak shaving, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

LiFePO4 Battery Energy Storage System

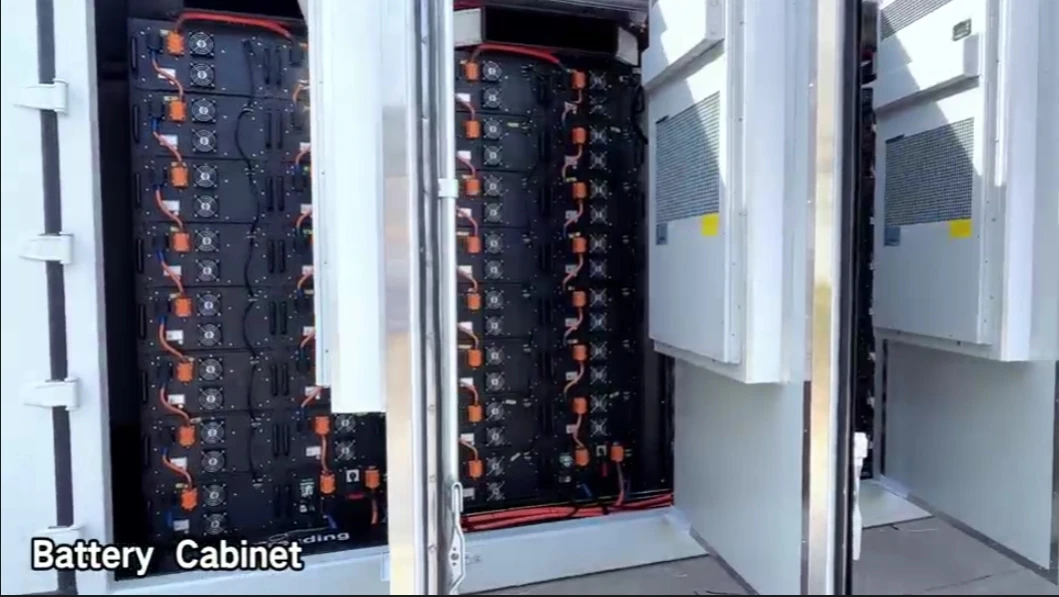

The lithium battery system consists of rack, battery modules, battery management system (BMS), display control system and protection system. 2 level BMS design, hierarchical linkage and multiple monitoring of system status. Relay, fuse, circuit breaker and BMS constitute a comprehensive protection system integrating electrical safety and functional safety.

Battery SystemThe system mainly consists of safe, efficient and long-life lithium iron phosphate cells, which are connected in series to form battery modules, and multiple modules are connected in series to form battery clusters.Battery management systemThe core components of the system can effectively protect the battery from overcharge, overdischarge and over-current. At the same time, the balanced management of the cells can ensure the safe, reliable and efficient operation of the whole system.

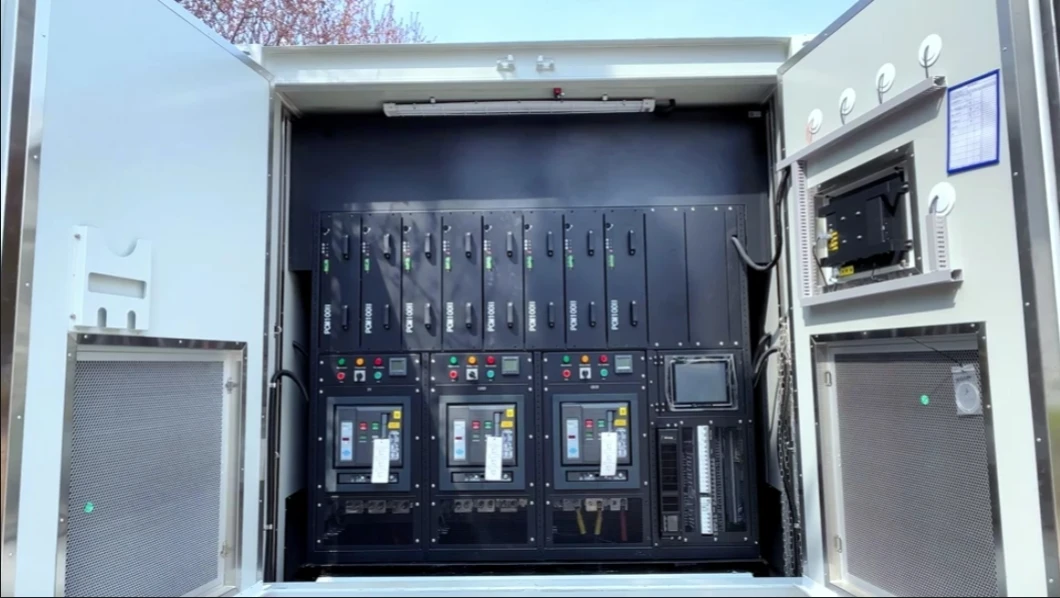

Multifunctional PCS

The multi-functional bi-directional converter can realize the bi-directional conversion from DC to AC and from AC to DC. It can not only convert AC into DC to charge the battery, but also convert DC into AC to supply power to the load or feed back to the grid. The system adopts advanced digital control technology, which optimizes the control performance and improves the reliability of the system. It can realize seamless switching between grid-connected discharge, grid -connected charging and off grid operation modes.

AC/DC ModuleBidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.

Static Transfer Switch (optional)Under normal working condition, the static switch is closed. When the power supply is interrupted, the static switch is immediately disconnected. The system turns to off grid power supply, and the battery is discharged for the load.

HVAC

The battery compartment integrates 5kW industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.

PMS(Power Management System)

System operation data monitoring, operation strategy management, historical data record, system status record, etc.

Specification

40ft Containerized Solar Energy Storage Battery Container Outdoor 1MWh 2MWh 3MWh LiFePO4 Battery On Grid Storage System

︱Safe and reliable︱■ High quality LFP batteries for mobile use.■ Intelligent air conditioning design, small temperature fluctuation.■ Automatic induction of fire source; automatic fire extinguishing; sound and light alarm function.■ Container-mounted network camera with video surveillance function; (optional)■ IP54，safe and reliable operation in outdoor environment.■ Serially designed PCS and battery pack eliminates circulating current and improve system reliability.■ Integrated BMS,DC, AC multi-layer protection, maximum safety performance design.︱Efficient and Convenient︱■ Container installation, high modularity, simple structure, easy installation and maintenance.■ All-in-one equipment, which can be fixed, vehicle-mounted, and easy to move.■ Enables remote monitoring, device management, remote troubleshooting and data analysis.︱Cost optimization︱■ One investment, multiple benefits:Peak shaving, backup power supply, microgrid building,power quality improving and energy storage,etc.■ Long cycle life, low failure rate, reduce operation and maintenance investment.■ Maximize green energy utilization.

Parameter	GRES-645-300	GRES-1075-500	GRES-2000-1000
PV parameters
Max input power	200KW	500kW	1000kW
Rated Current	606A	758A	1516A
AC parameters (On-grid)
Rated input voltage	3W+N+PE, 380/400V
Rated frequency (Hz)	50/60
Rated output power (kW)	300	500	1000
Rated grid voltage (V)	3W+N+PE, 380/400V
Grid voltage range	-15%~+10%
Rated grid frequency (Hz)	50/60
Grid frequency range (Hz)	±2
Output current harmonics	≤3%(Rated Power)
DC component	<0.5%In
Power factor range	-0.9~+0.9
Overload capacity	105%：continuous operation，（105%~120%)：≥10min，120%：stop operation
AC parameters (Off-grid)
Rated output power (kW)	300	500	1000
Rated output voltage (V)	3W+N+PE, 380/400V
Output voltage harmonics	3%(Linear full load)
Rated frequency （Hz)	50/60
Overload capacity	105%：continuous operation，（105%~120%)：≥10min，120%：stop operation
Battery
Battery type	LFP
Energy of each rack (kWh)	215.04
Rack qty	3	5	10
Total power (kWh)	860.16	1075.2	2150
Running Time (h)	>2(Optional by changing power)
Life cycle	25℃ 0.5C/0.5C 100%DOD EOL80% ≥6000cycles
Efficiency
Max efficiency	93%
Protection
DC switch	YES
AC switch	YES
Grid monitoring	YES
Surge protection	YES
Basic Parameters
*Dimension（WDH）(mm)*	605824382591			1219624382591
Weight (kg)	10000	16000	25000
Isolation	Isolation transformer(built-in)
On-off-grid switching	STS
Protection	Outdoor IP54
Working temperature	-20～55℃(>45℃derating)
Relative humidity	0％RH～95％RH，No condensation
Cooling	Air conditioner
Max working altitude (m)	4000(>2000derating)
Display	Touch screen
Communication	RS485、CAN、LAN
Communication Protocol	Modbus-RTU、Modbus-TCP、CAN2.0B

Application

40ft Containerized Solar Energy Storage Battery Container Outdoor 1MWh 2MWh 3MWh LiFePO4 Battery On Grid Storage System

Peak and frequency regulation, smoothing new energy generation;

Industrial and commercial demand management, peak shaving;

Power quality improving, and backpower supply at user side;Mobile energy storage, electric rescue;

Building microgrid system.

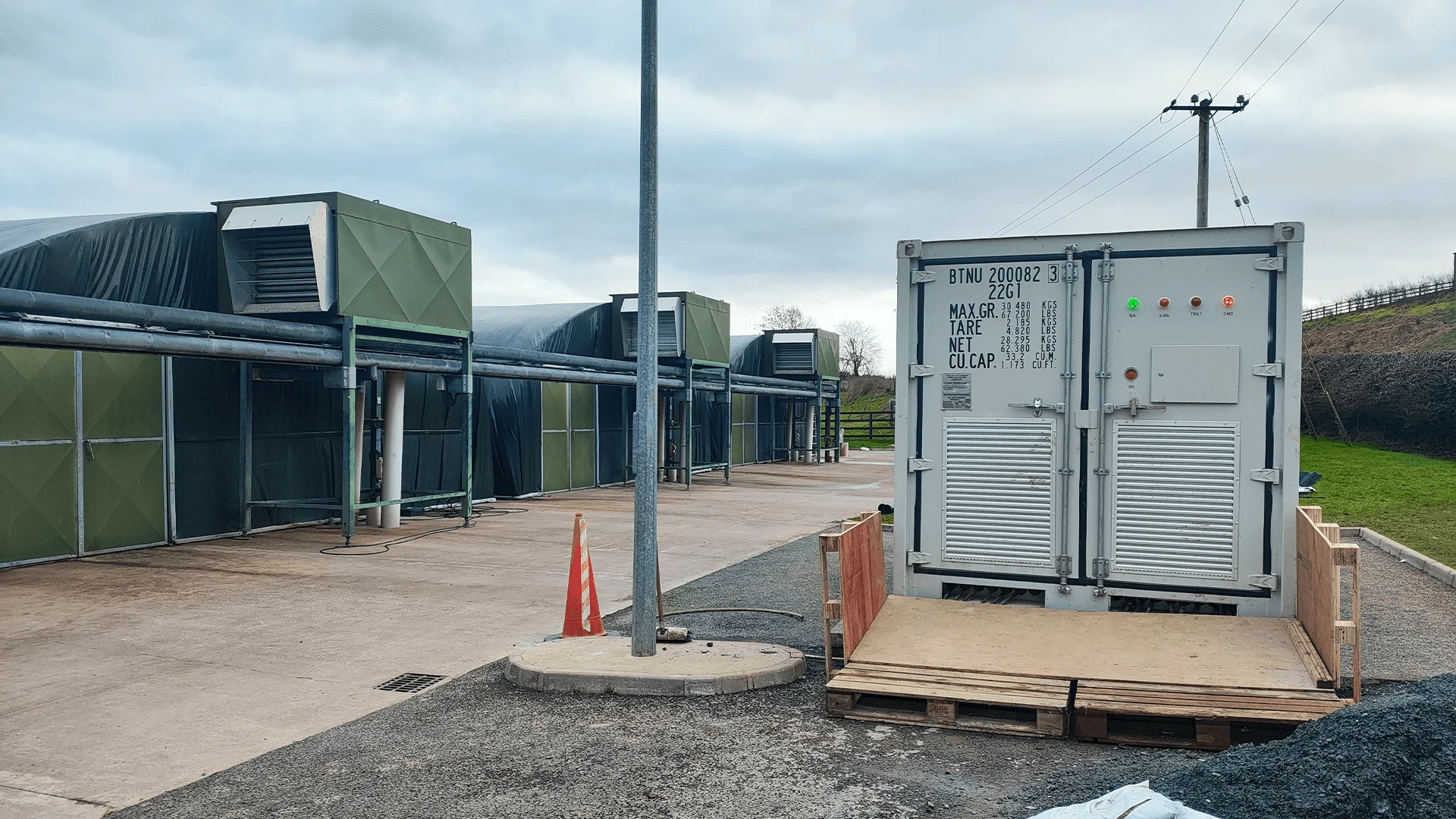

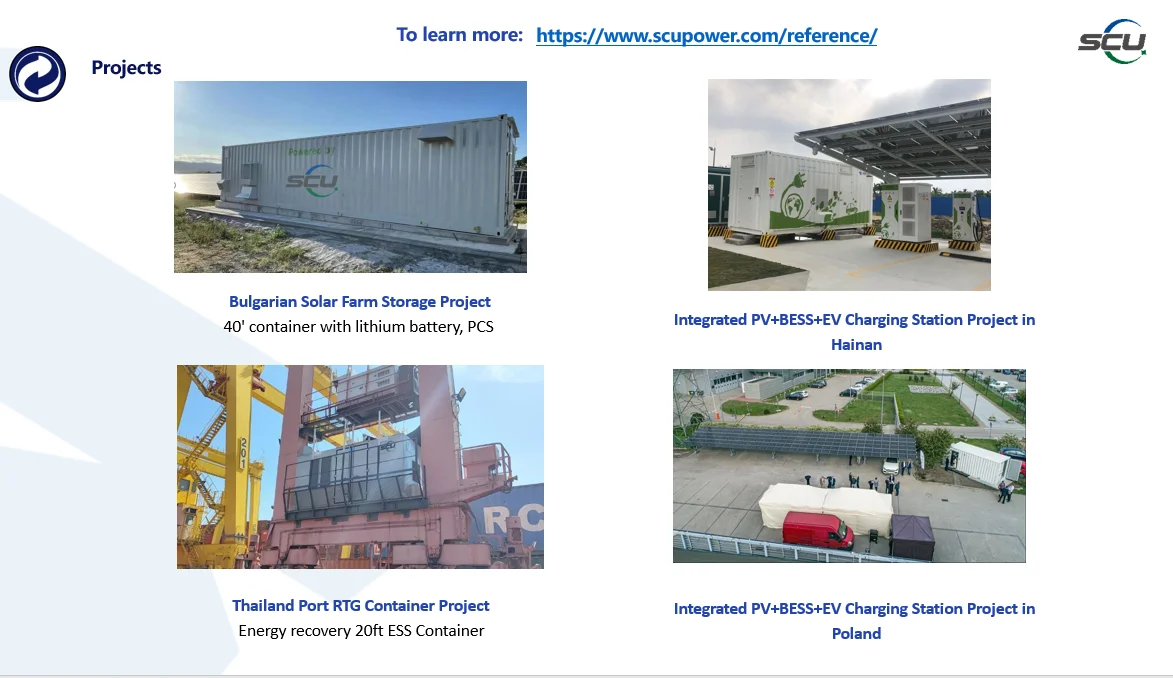

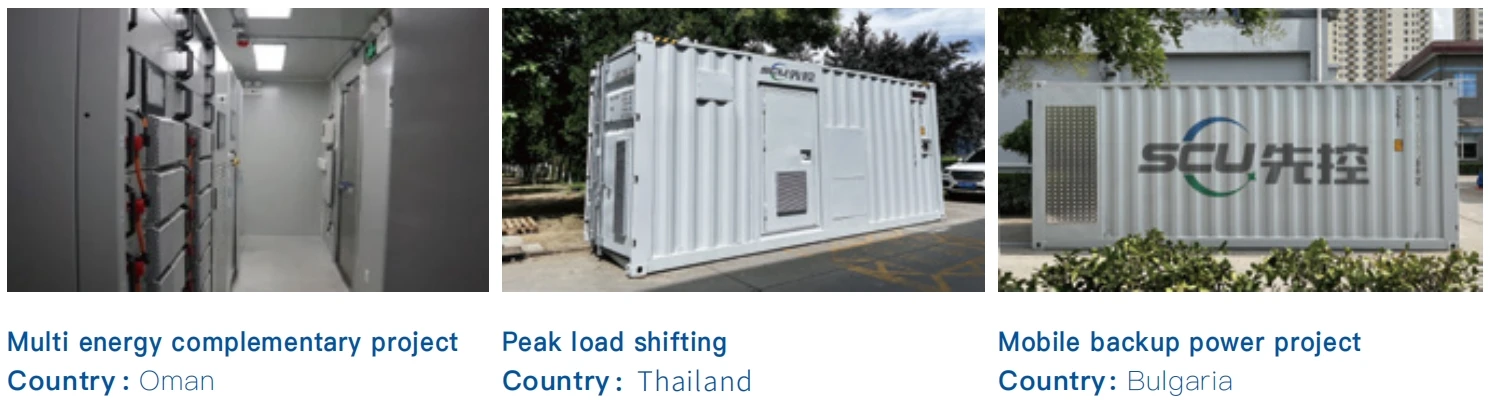

Successful Cases

40ft Containerized Solar Energy Storage Battery Container Outdoor 1MWh 2MWh 3MWh LiFePO4 Battery On Grid Storage System

Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)

Certification

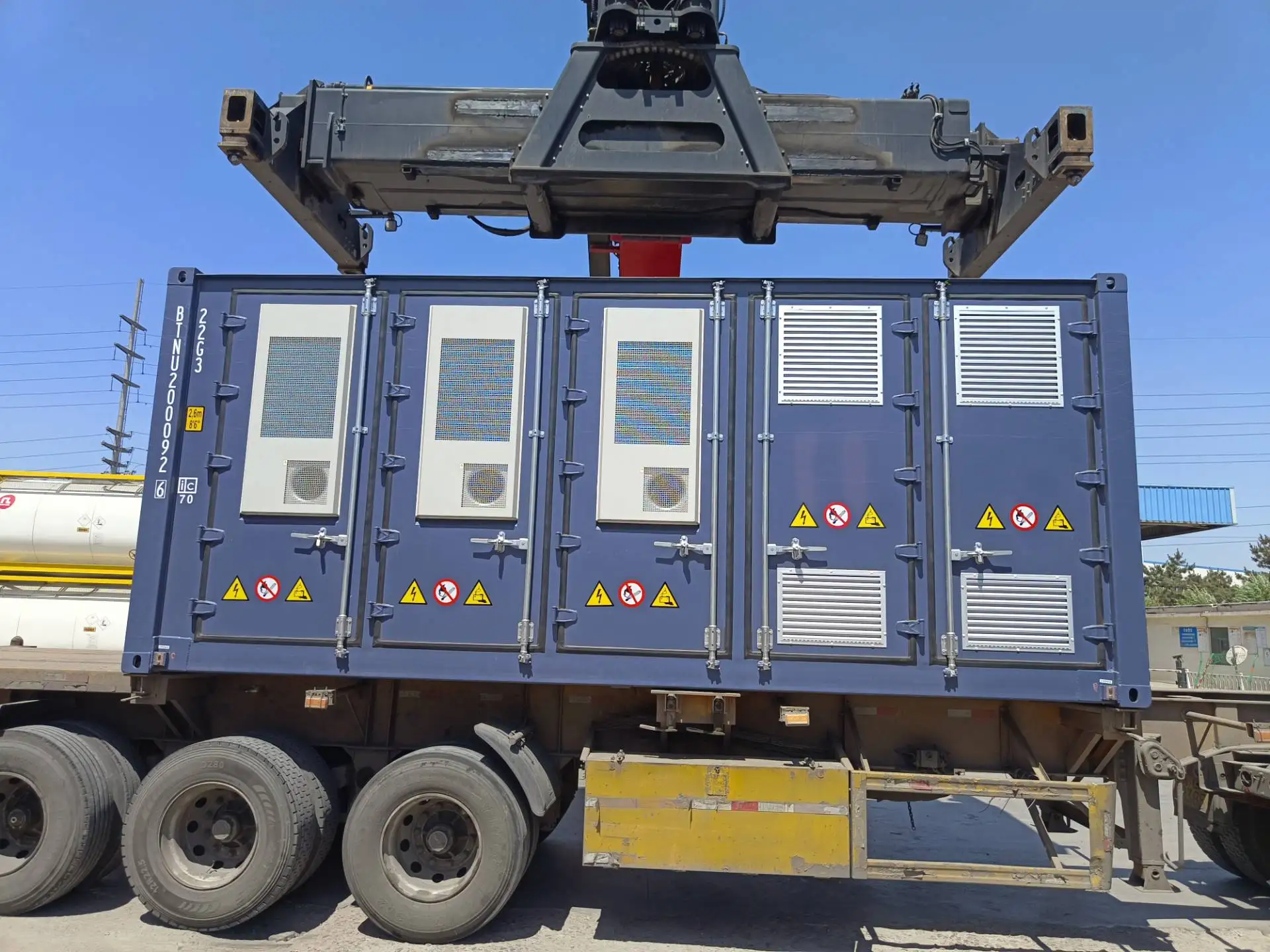

Packing & Delivery

UN38.3 cartons

Company Profile

00:06

00:32

Sicon Chat Union (SCU) was founded in 2003 with a vision of building a sustainable future. We are focused on the development and application of power electronic technology, the core vision is to implementing the concept of sustainable product development on a global scale. We help our clients alter industries and markets, utilizing clean energy on the daily lives of billions of people. Uninterruptible power supply, Electric vehicle fast charger and Energy storage system are the three key products of us. SCU's success is driven by excellent groups of people, spreading business more than 50 countries and regions around the world.

FAQ

1. who are we?
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
energy storage system,PCS,Lithium battery,UPS

4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China;Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS;OEM for IPO companies;One-stop solution of power energy supply.20years experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
