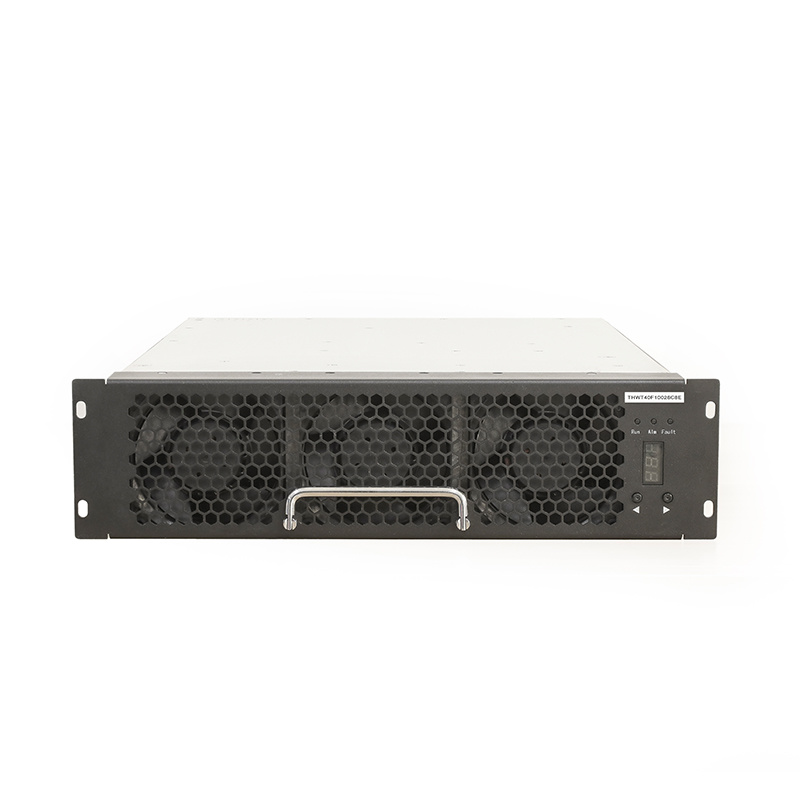

THWT40F10028C8E is a DC charging module with high efficiency and high power density developed by Tonhe Company for charging piles. The output voltage can reach 1000V, and the constant power is 40kW in the range of 280-1000VDC. Interface with 30kW module, size one To facilitate user update iteration.
Wide output constant power range: 280-1000VDC
Ultra-low standby power consumption: <13W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -40℃-75℃
High conversion efficiency: peak efficiency ≥ 96%
| Model No. | THWT40F10028C8E | |
| Ac input | Input voltage | Rated voltage 400VAC; 3W+PE; Operating range 270-490VAC |
| Input frequency | 50/60Hz±10% | |
| Input power factor | ≥0.99 | |
| Input overvoltage protection | 487±6VAC | |
| Input undervoltage protection | 273±6VAC | |
| Dc output | Output rated power | 40kW |
| Output voltage range | 50-1000VDC | |
| Output current range | 0.5~143A | |
| Constant power output range | 280-1000VDC | |
| Peak efficiency | ≥96% | |
| Soft startup time | 3~8S | |
| Short circuit protection | Self-rollback protection | |
| Voltage regulation accuracy | ≤±0.5 | |
| THD | ≤5% | |
| Current regulation accuracy | ≤±1% | |
| Current sharing imbalance | ≤±5% | |
| Working environment | Operating temperature | -40℃~+75℃ |
| Relative humidity | ≤95%Condensation free | |
| Altitude | ≤2000m. Derating above 2000m is considered | |
| Product characteristics | Cooling Method | Fan cooling |
| Standby power?consumption | ＜13W | |
| Communication protocol | CAN | |
| Address setting | Digital screen display, button operation | |
| Dimension | 460mmx300mm x84mm(DxWxH) | |
| Weight? | ≤18kg | |
| MTBF | 500000hour | |
