Model
|
NE-700/700PRO
|
NE-700PRO
|
NE-1000
NE-1000EX
|
NE-800EX
|
NE-1200
|
NE-2400
|
RESS-5000B
|
||||||||||
|
Output Power
|
700W
|
1000W
|
1200W
|
2400W
|
5000W
|
||||||||||||
|
Capacity
|
512Wh
|
720WH
|
768Wh
|
768Wh
|
922Wh
|
1228Wh
|
1536Wh
|
2304Wh
|
5000Wh
|
||||||||
|
Battery Type
|
LiFePO4
|
NCM
|
LiFePO4
|
LiFePO
|
LiFePO
|
||||||||||||
|

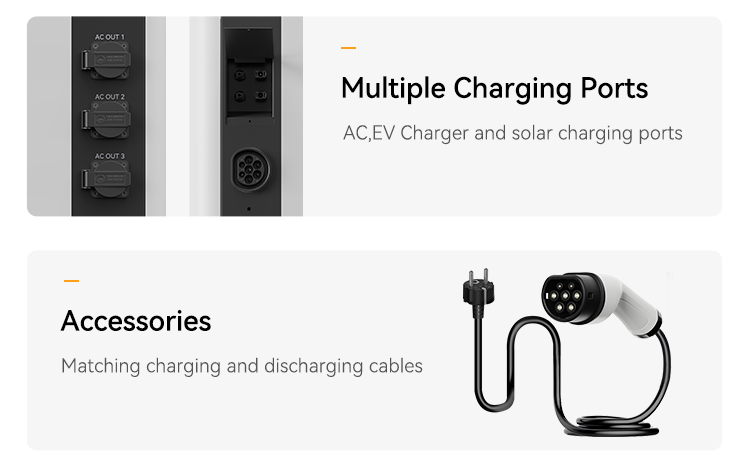

Input
|
AC,Solar,Car Charger
|
AC,Solar
|
|||||||||||||||
|
Output
|
AC , Cigar lighter,
USB-A , Type-C , DC 5521
|
AC
Car charging
|
|||||||||||||||
|
Dimension (L*W*H)
|
294*185*236mm
|
285*250*259mm
|
403*223*298mm
|
455*295*346mm
|
485*332*630mm
|
||||||||||||
|
Weight
|
≤7.5KG
|
≤7.7KG
|
8KG
|
18KG
|
28KG
|
70KG
|
|||||||||||
|
Protection
|
The Built-In BMS Has Multi-Safeguards
|
||||||||||||||||
|
Certification
|
CE/FCC/PSE/RoHS/UKCA/UL/MSDS/UN38.3
|
||||||||||||||||
|
General Specs
|
Net Weight
|
70Kg
|
|
Size
|
485*332*630 (mm)
|
|
|
Capacity
|
5000Wh
|
|
|
Certificates & Test Reports
|
CE/FCC/PSE/RoHS/UKCA/UL 2743
|
|
|

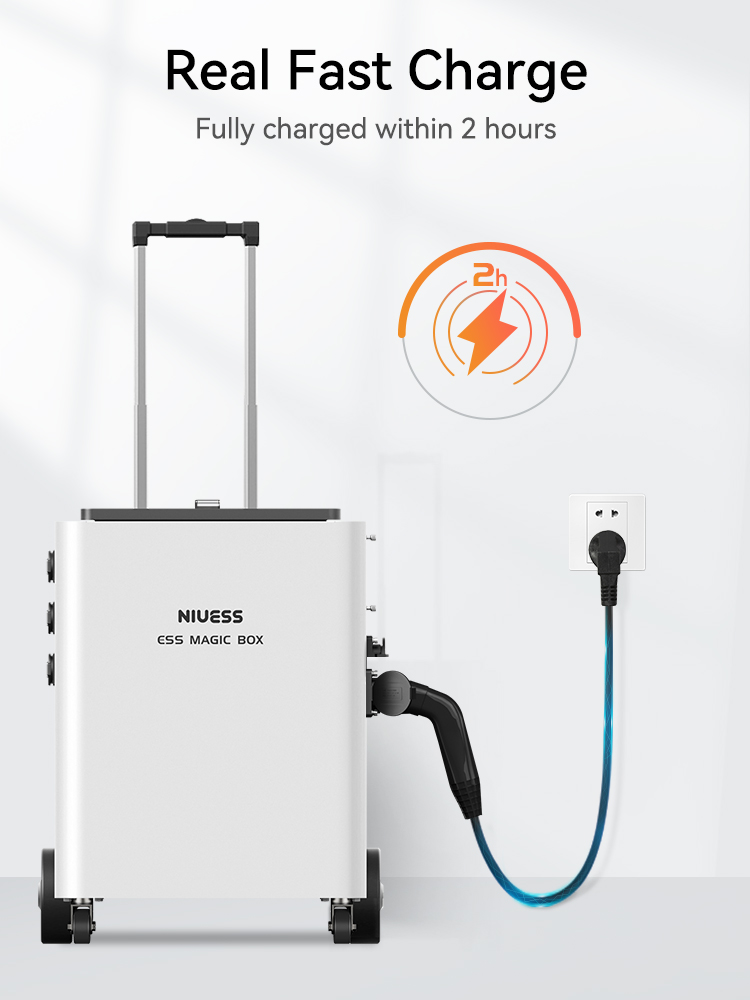

Grid/Charging Pile
Charging Parameters
|
Max. Charging Current
|
60A
|
|
Rated Frequency
|
50Hz (45-54Hz) /60Hz (55-65Hz)
|
|
|
Rated Grid VoltageGrid voltage range
|
110V/220V/230V AC90-264VAC
|
|
|
Emergency Power Output
|
Rated power
|
5000W
|
|
Rated Voltage
|
230V AC(110V/220V)
|
|
|
Rated Frequency
|
50/60Hz
|
|
|
Response Time
|
20ms
|
|
|
PV DC Input Side
|
Max. Power
|
4500W
|
|
Max. Current
|
80A
|
|
|
Max. Voltage
|
145V
|
|
|
MPPT Voltage Range
|
60-115V
|
|
|
Energy Storage Battery Parameters
|
Battery Type
|
Lithium lron Phosphate
|
|
Capacity
|
100Ah
|
|
|
Rated Voltage
|
51.2V
|
|
|
Voltage Range
|
40-58.4V
|
