Performance | ||||||

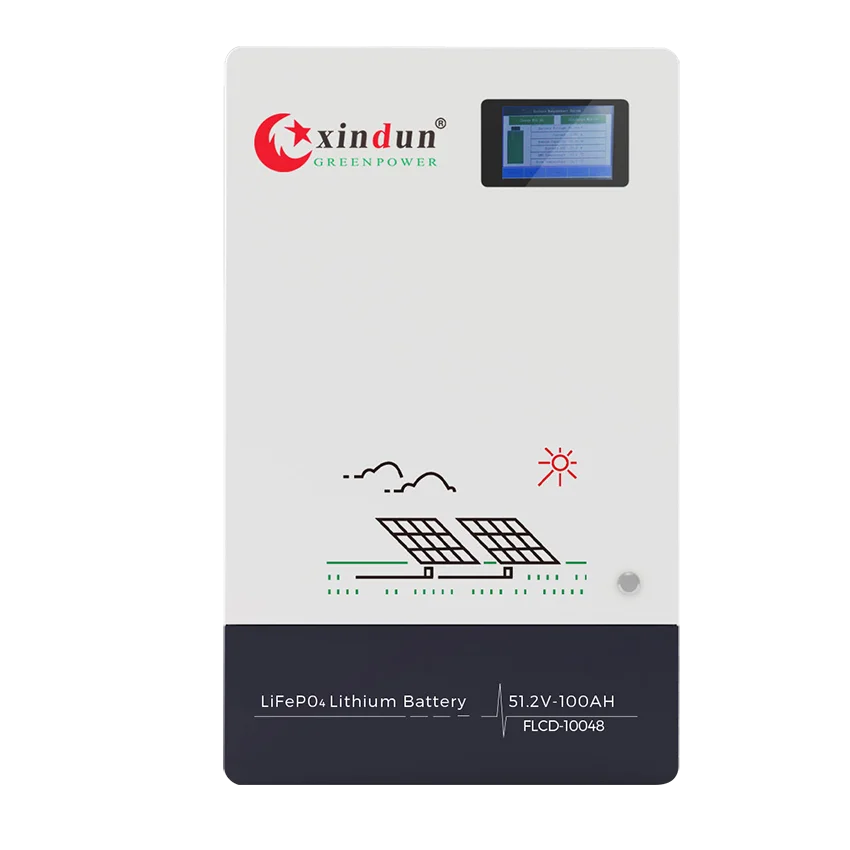

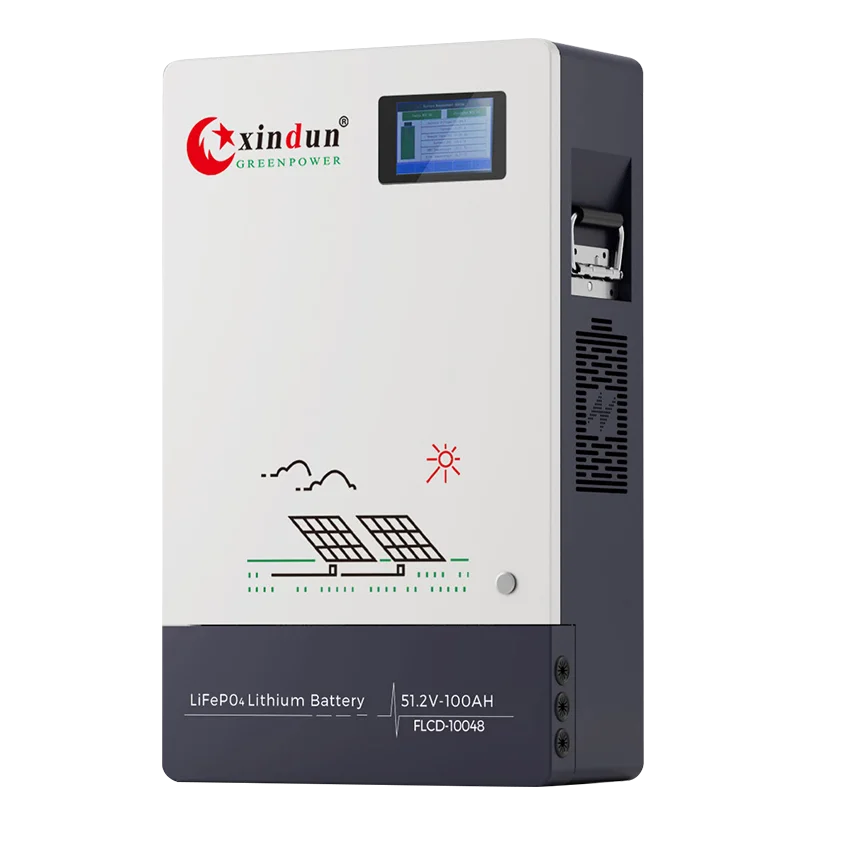

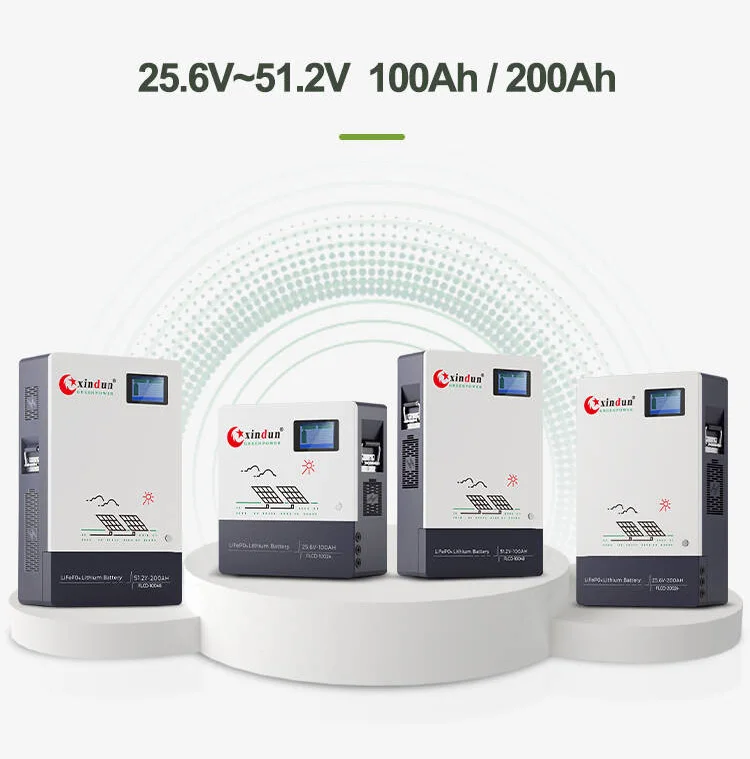

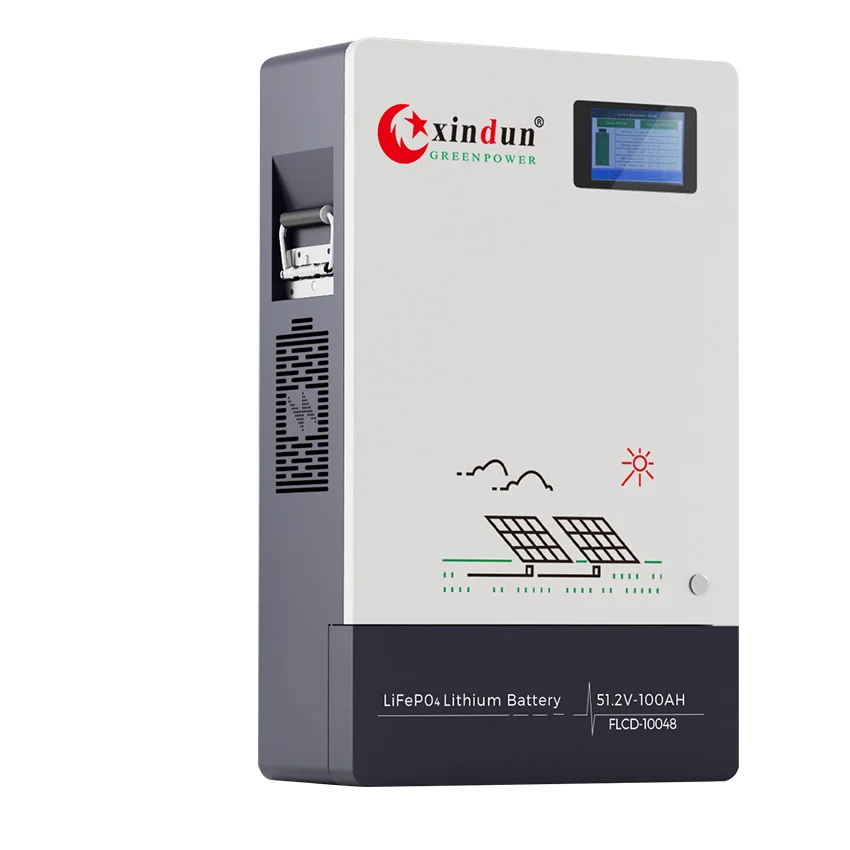

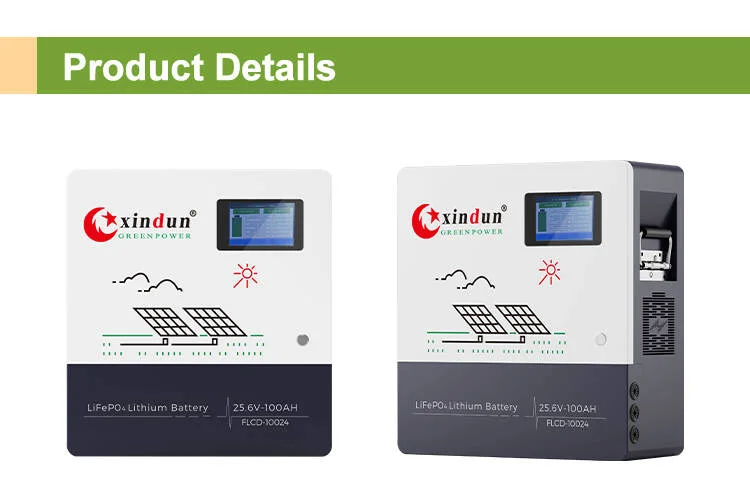

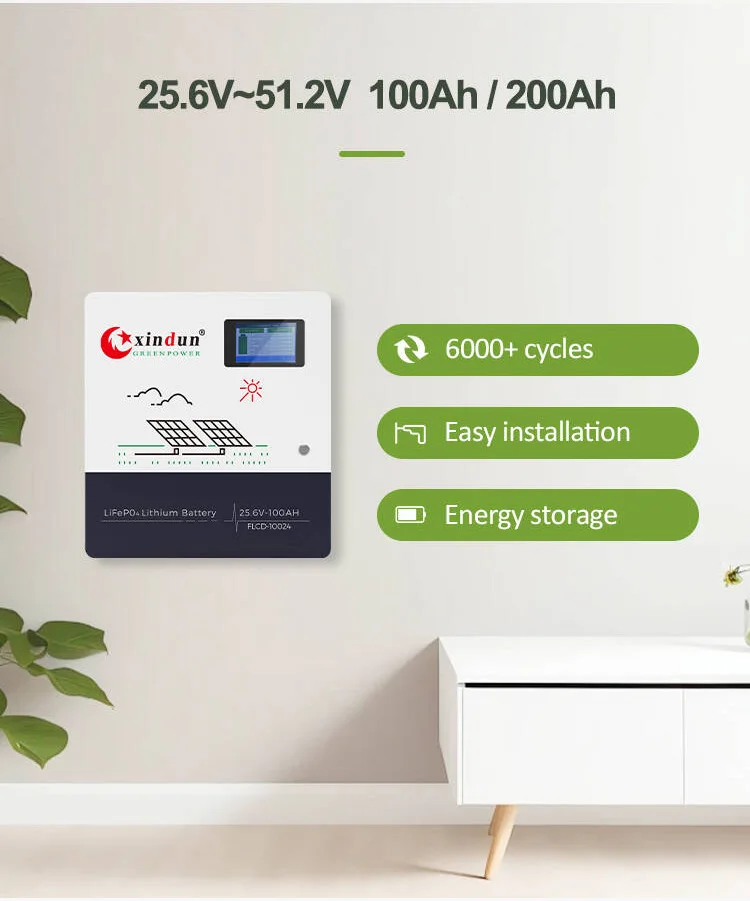

Battery Model | XFE100P10 | XFG100P10 | XFG100PC7/DS | |||
Capacity | 25.6V100AH （100A） | 51.2V100AH （100A） | 51.2V200AH (200A) | |||
Battery Total Energy | 2.5kwh | 5kwh | 10kwh | |||
Rated Energy | 2.5kw | 5.1kw | 8.9kw | |||
Peak Energy | 3kw | 6kw | 10kw | |||
Rated Voltage（DC） | 25.6V | 51.2V | 51.2V | |||

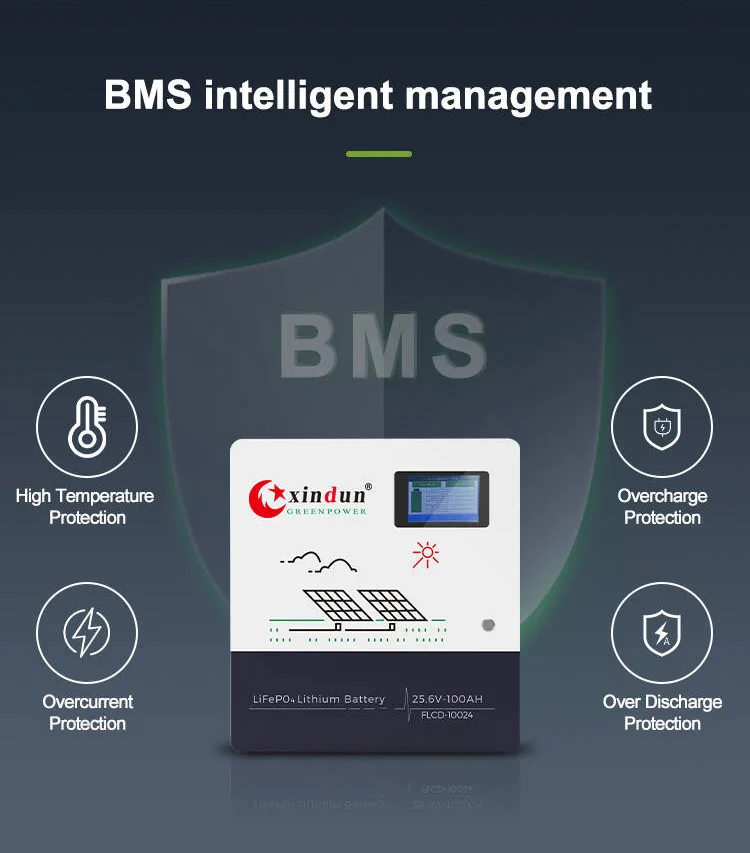

Allowable BMS Load Current | 100A | 100A | 200A | |||
Battery Voltage Range(DC) | 22.4V~29.2V | 44.8V~58.4V | 44.8V~58.4V | |||
Inverter Operatig Voltage Range(single-phase） | 220V~240V | 220V~240V | 220V~240V | |||
Inverter Operating Voltage Range thr ee-phase) | 340~460V | 340~460V | 340~460V | |||
Communication | ||||||

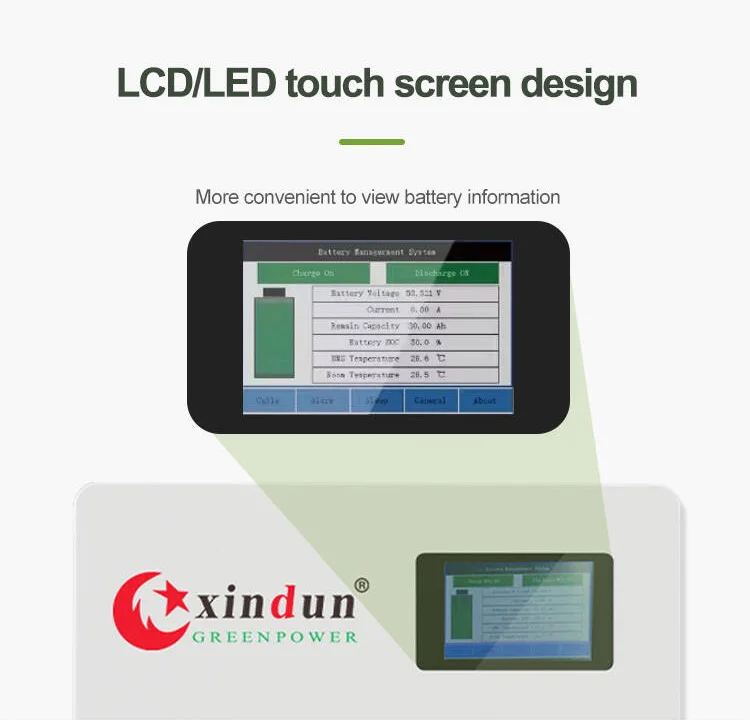

Display | SOC status indication, LED indicator screen | |||||
Protocol | RS485 /RS232/ CAN (Series parallel connection with either option) | |||||
Dimension（L x W x H） | 370*160*400mm | 370*160*600mm | 500*160*850mm | |||
Weight（ Accessories Included） | ~24Kg | ~45Kg | ~102Kg | |||

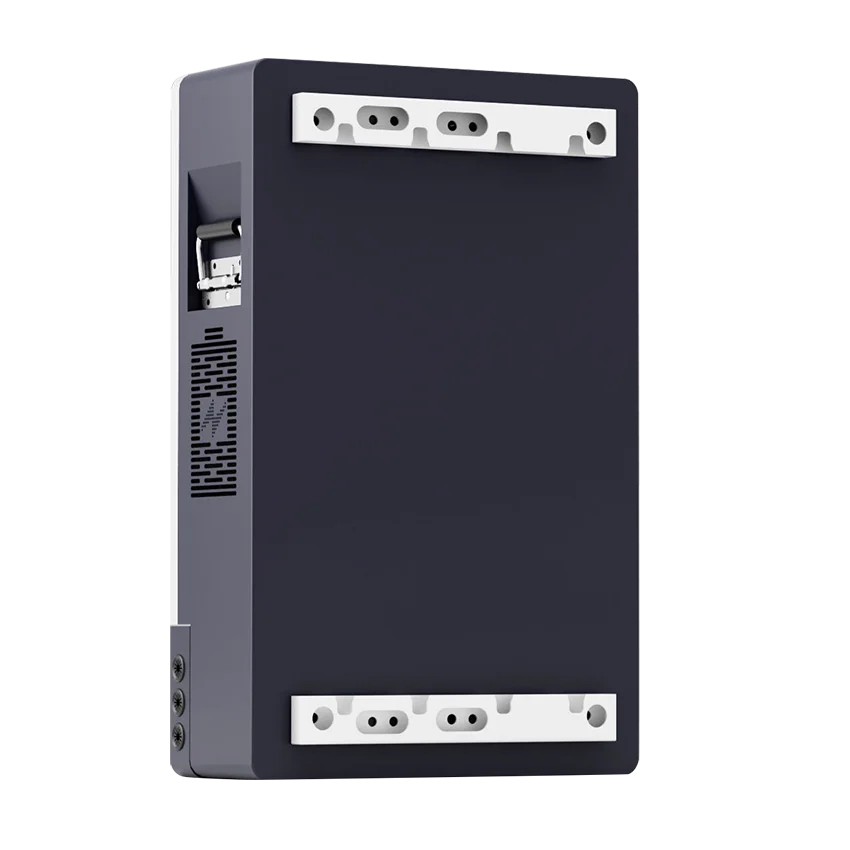

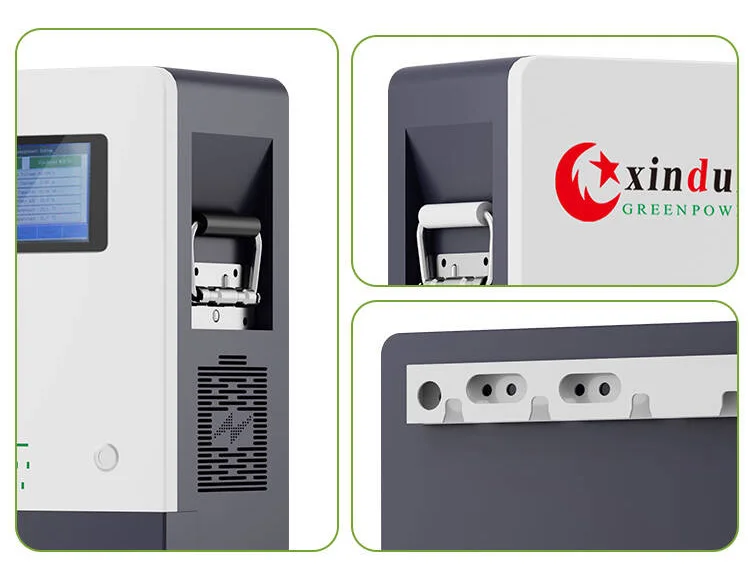

Installation | wall-mounted or floor-mounted | |||||
Working Temperature | -20℃～ + 55℃ | |||||
Maximum Working Altitude | 4000 m（≥2000m derating） | |||||
Installation Environment | Indoor scenario | |||||
Working Relative Humidity | 5%～95% | |||||
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system, solar batteries | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

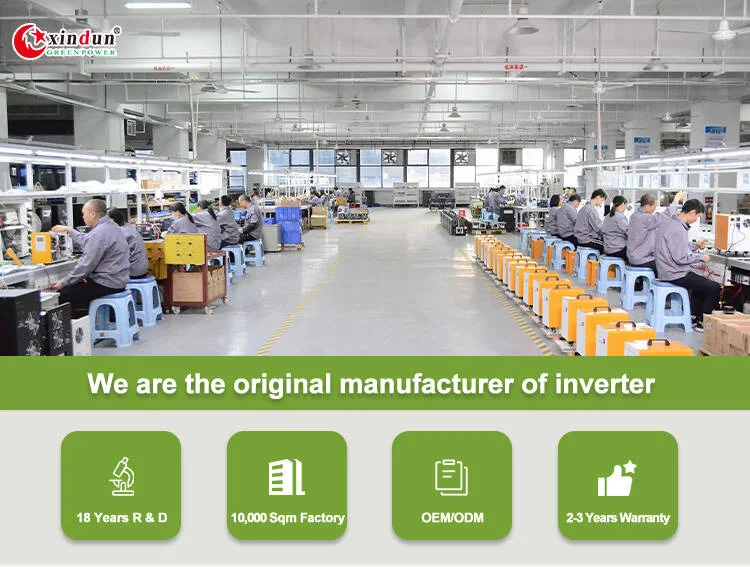

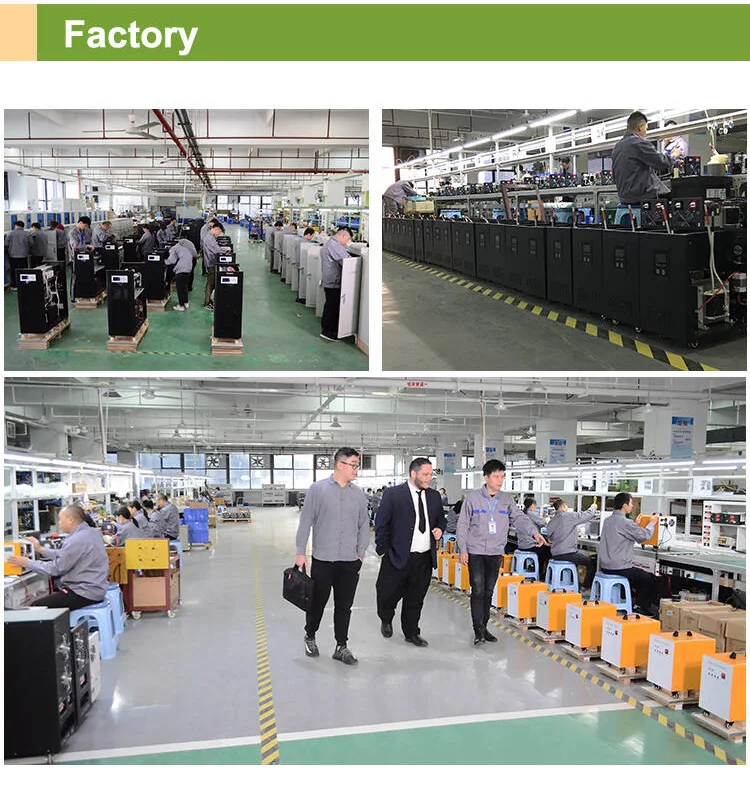

Factory | 10,000+ Square Meters, 200+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO9001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
