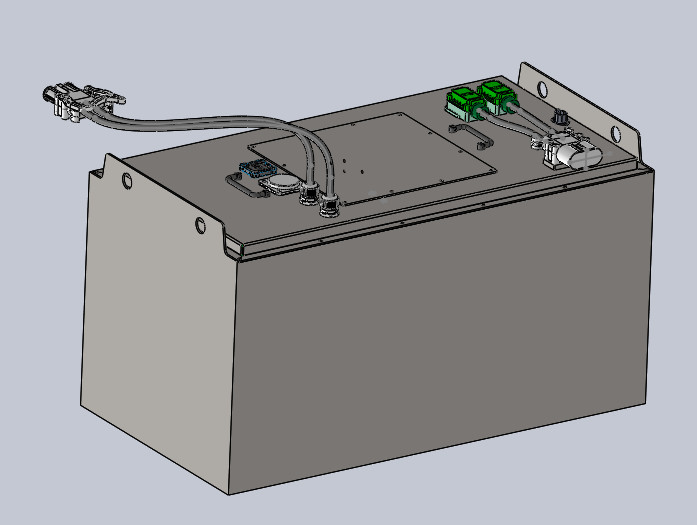

| Product Name: | Lithium Iron Phosphate Battery | Product Model: | EK-CP-0841 |
|---|---|---|---|
| Rated Capacity: | 405Ah | Rated Voltage: | 48V |
| Size Of Battery Pack: | 970mm*520mm*550mm | Weight Of Battery Pack: | 330kg |
| High Light: | 48V 405Ah Lithium Battery,405Ah Forklift Lithium Battery,405Ah Lithium Iron Phosphate Battery | ||
| NO. | Item | Specification | Remark |
| 1 | Size | 970mm*520mm*550mm | / |
| 2 | Combination mode | 3P15S | / |
| 3 | Rated capacity | 405Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 48V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈330kg | / |
| 7 | Total power of module | 19.44kwh | / |
| 8 | Maximum charging voltage | 54V | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 40.5V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |
1. This product is made of 135Ah lithium iron phosphate batteries in series and in parallel. Each layer is equipped with 13 135Ah cells, a total of 3 layers of standard modules of lithium iron phosphate batteries.
2. Laser welding is performed between batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding and faulty welding, ensuring 100% battery damage;
3. Safety design: adopt high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
The products are widely used in industrial vehicles, engineering vehicles and other fields.
