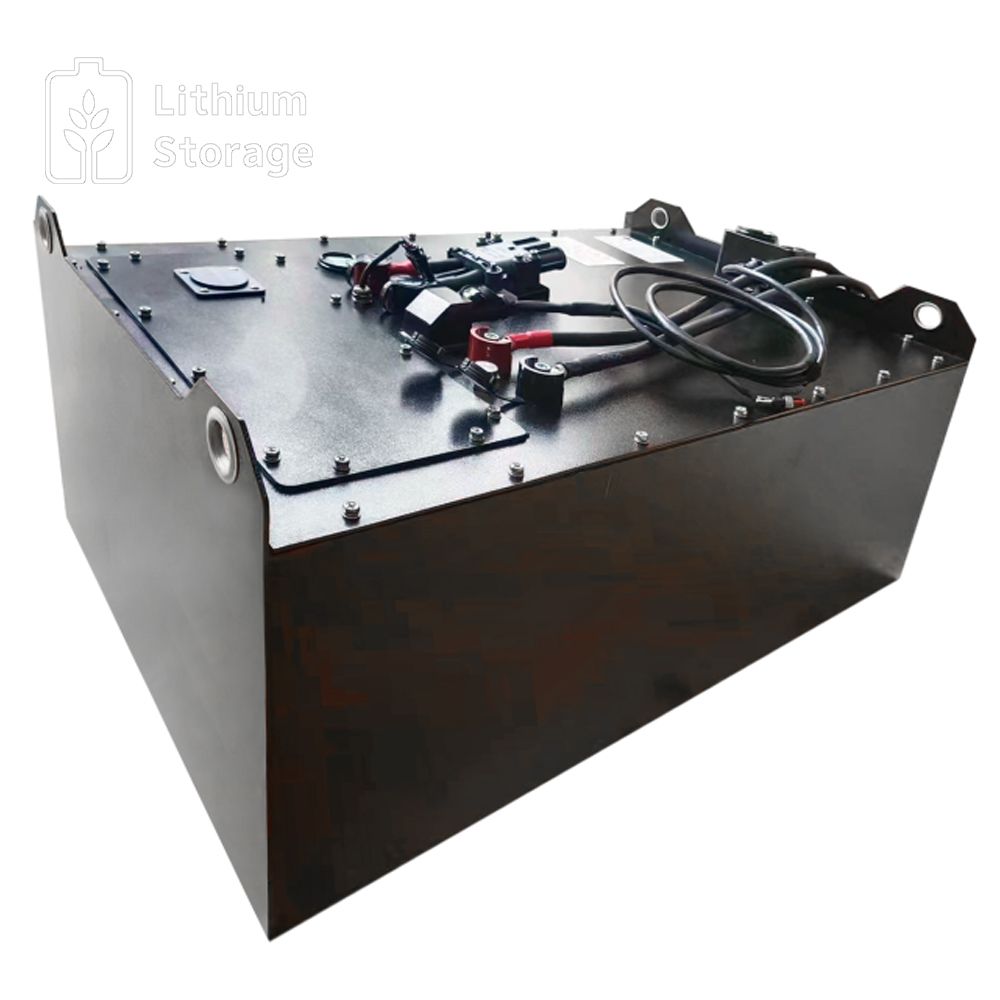

Features of 48V forklift battery for sale
● Remote&Onsite Product Support
● GPS&GPRS function
● Charger communication commissioning
● Charge and discharge connector adaption
● Interactive integrated Display with voice, buzz and switch button
● Customization service against different brand of forklifts
● IP 54 structure design
● Flexible supply in additional weight
● Vehicle CAN communication support
Advantages of a 48V Forklift Battery Pack
● Efficiency: Provides sufficient power for a wide range of applications while maintaining energy efficiency.
● Operational Time: Depending on the battery type and capacity, it can offer extended operational periods before requiring recharging.
● Cost-Effectiveness: 48V systems are generally cost-effective, balancing initial investment and operational costs.
If you're in the market for a 48v forklift battery for sale, you'll find a range of options, including traditional 48 volt forklift battery models and advanced 48 volt lithium ion forklift battery solutions. When choosing a forklift battery 48v, it's important to consider factors like lifespan and efficiency. Whether you're looking for a lithium forklift battery for its quick charging and longer cycle life or a more conventional flt battery, the right electric forklift batteries can significantly impact your operational efficiency. Investing in a high-quality forklift battery ensures reliable performance and reduces downtime, which is critical in demanding industrial environments.
No. | Items | Parameter | Parameter | Parameter | Parameter | Note | |
51.2V300A | 51.2V412A | 51.2V460A | 51.2V554A | ||||
150Ah2P16S | 206Ah2P16S | 230Ah2P16S | 277Ah2P16S | ||||
1 | Nominal voltage(V) | 51.2 | 51.2 | 51.2 | 51.2 | ||
2 | Operating voltage(V) | ?min | 40 | 40 | 40 | 40 | |
3 | max | 58.4 | 58.4 | 58.4 | 58.4 | ||
4 | Group mode | 2P16S | 2P16S | 2P16S | 2P16S | ||
5 | Nominal energy（KWh ） | 15.36 | 21.09? | 23.55 | 28.36? | 25±2℃ | |
6 | Weight（Kg） | ≈200kg | ≈230kg | ≈230kg | ≈270kg | not additional weight | |
7 | Nominal capacity(Ah) | 300 | 412 | 460 | 554 | 25±2℃ | |
8 | Maximum continuous charge current（A） | 150 | 200 | 200 | 200 | 25±2℃ | |
9 | Maximum continuous discharge current（A） | 300 | 200 | 300 | 200 | 25±2℃ | |
10 | Maximum pulse discharge current（≤10s）（A） | 550 | 550 | 550 | 550 | 25±2℃ | |
11 | Shipping consistency（mv） | 30 | 30 | 30 | 30 | Voltage difference between cell ＜30mV | |
12 | Charging port | REMA320A（female） | Customizable | REMA320A（female） | Customizable | Customizable | |
13 | Discharging port | SB350A | Customizable | SB350A | Customizable | Customizable | |
14 | GPRS communication | 4G | 4G | 4G | 4G | Optional | |
15 | SOC operating range（%） | 20~100 | 20~100 | 20~100 | 20~100 | ||
16 | Insulation requirements(MΩ) | ≥20 | ≥20 | ≥20 | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
17 | ?cooling method | Natural cooling | Natural cooling | Natural cooling | Natural cooling | ||
18 | Shipping capacity | ≈30% | ≈30% | ≈30% | ≈30% | SOC is consistency in the same batch | |
19 | Battery box dimension | ?L (mm) | 970 | 800 | 970 | 830 | Customizable |
?W(mm) | 500 | 530 | 560 | 474 | |||
H (mm) | 405 | 450 | 405 | 600 | |||
20 | Outer box dimension | Outer box dimension can be costomizable according to the brand and model of forklifts | |||||
21 | Charger | Optional | Optional | Optional | Optional | ||
● The LSB Smart LFT forklift lithium batteries are designed for high performance and reliability, with advanced features such as active cell balancing, temperature management, and overvoltage/undervoltage protection.
● The cloud connectivity of the batteries allows for real-time monitoring and management of fleets of forklifts, enabling businesses to optimize their operations and reduce downtime.
● The Battery Pack Assistant Forklift Lithium Batteries app provides a user-friendly interface for accessing battery data and setting parameters, with features such as historical data analysis, charging management, and fault diagnosis.
● The WeChat applet and web gate offer additional options for accessing battery information, allowing users to monitor their fleets from anywhere with an internet connection.
Overall, the LSB Smart LFT forklift lithium batteries offer a range of benefits over traditional lead-acid batteries, including longer lifespan, faster charging, and lower maintenance requirements.
To ensure high-quality delivery of its products, Lithium Storage has established a standardized production process for manufacturing lithium-ion forklift batteries. The process includes several key steps, such as battery consistency inspection, battery module production, module inspection, pre-installation of electric control boards, pre-installation of covers and boxes, module installation into the box, busbar and wiring harness installation, complete inspection, electric control board installation, electric control board wiring, cover installation and labeling, system testing, and packaging. These steps help to ensure the quality and reliability of the lithium-ion forklift batteries produced by Lithium Storage.
