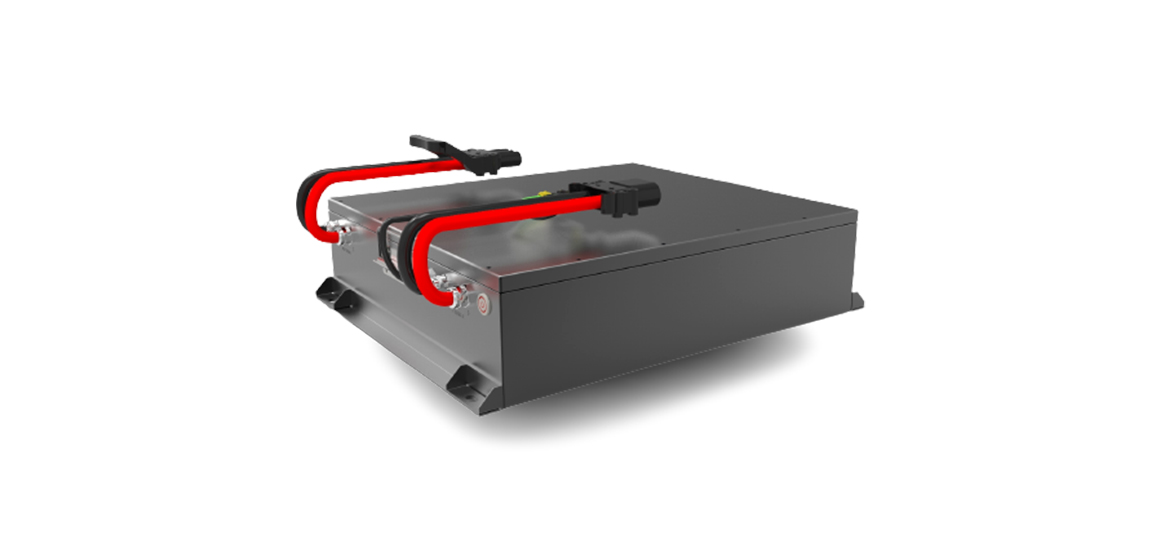

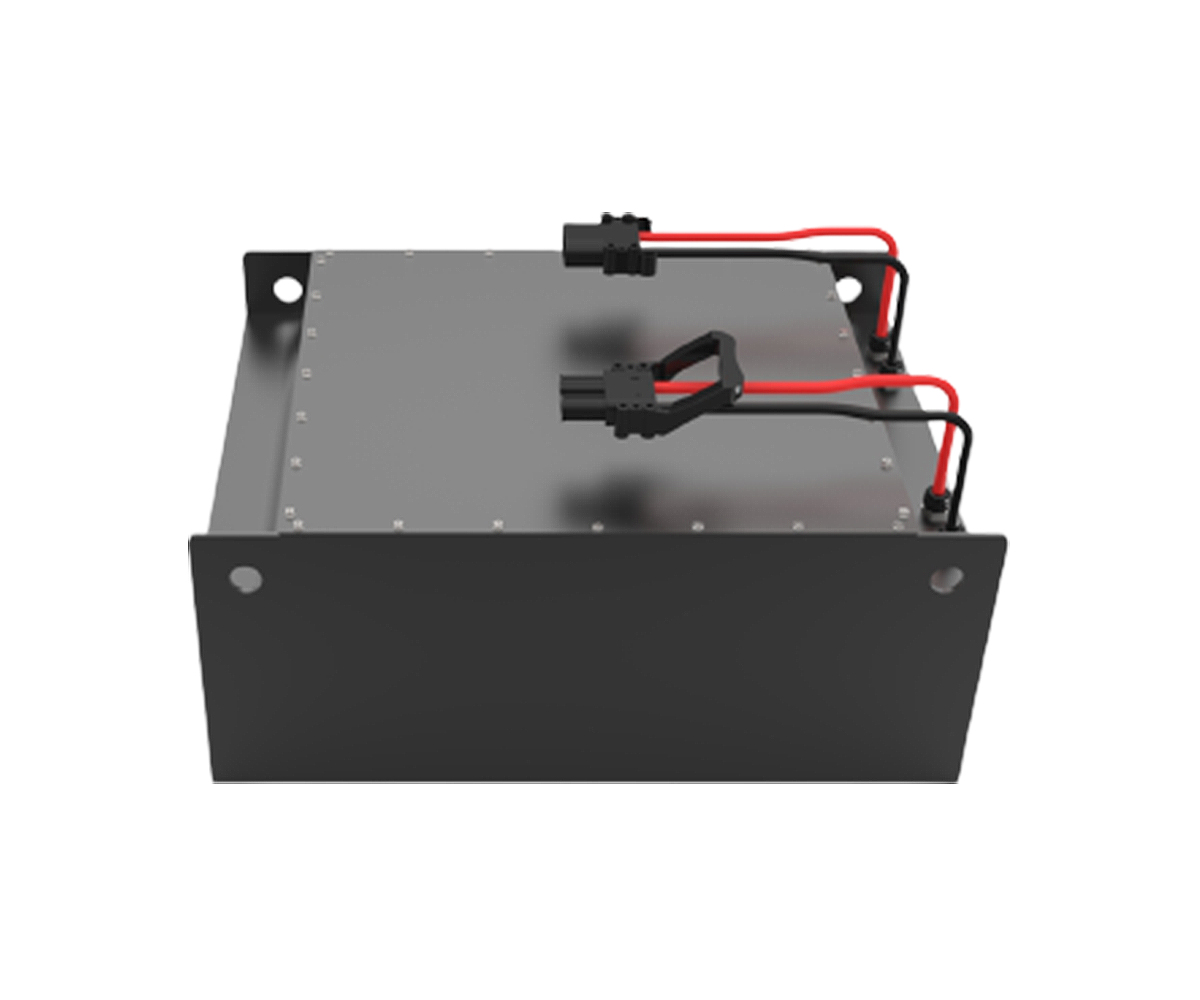

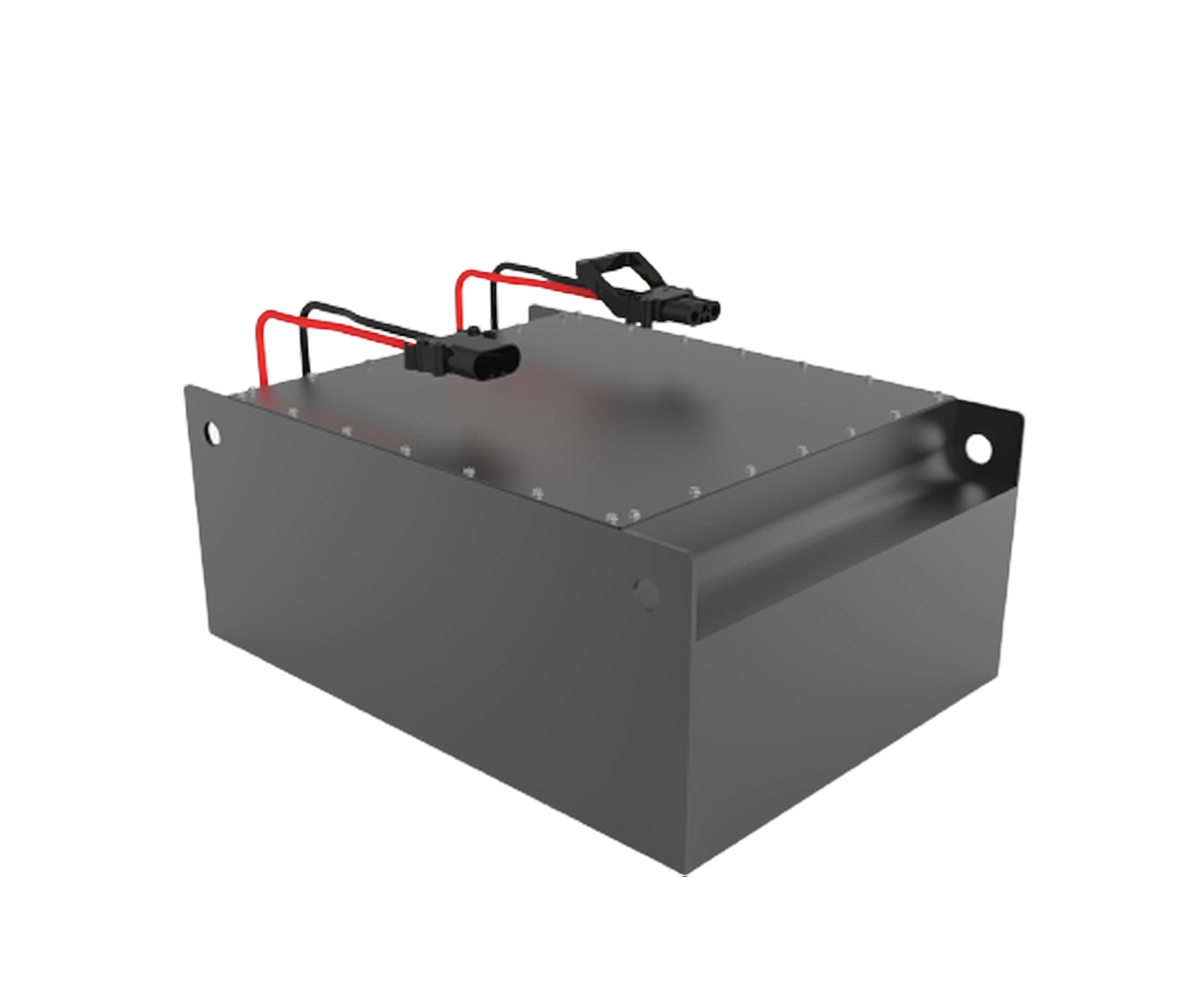

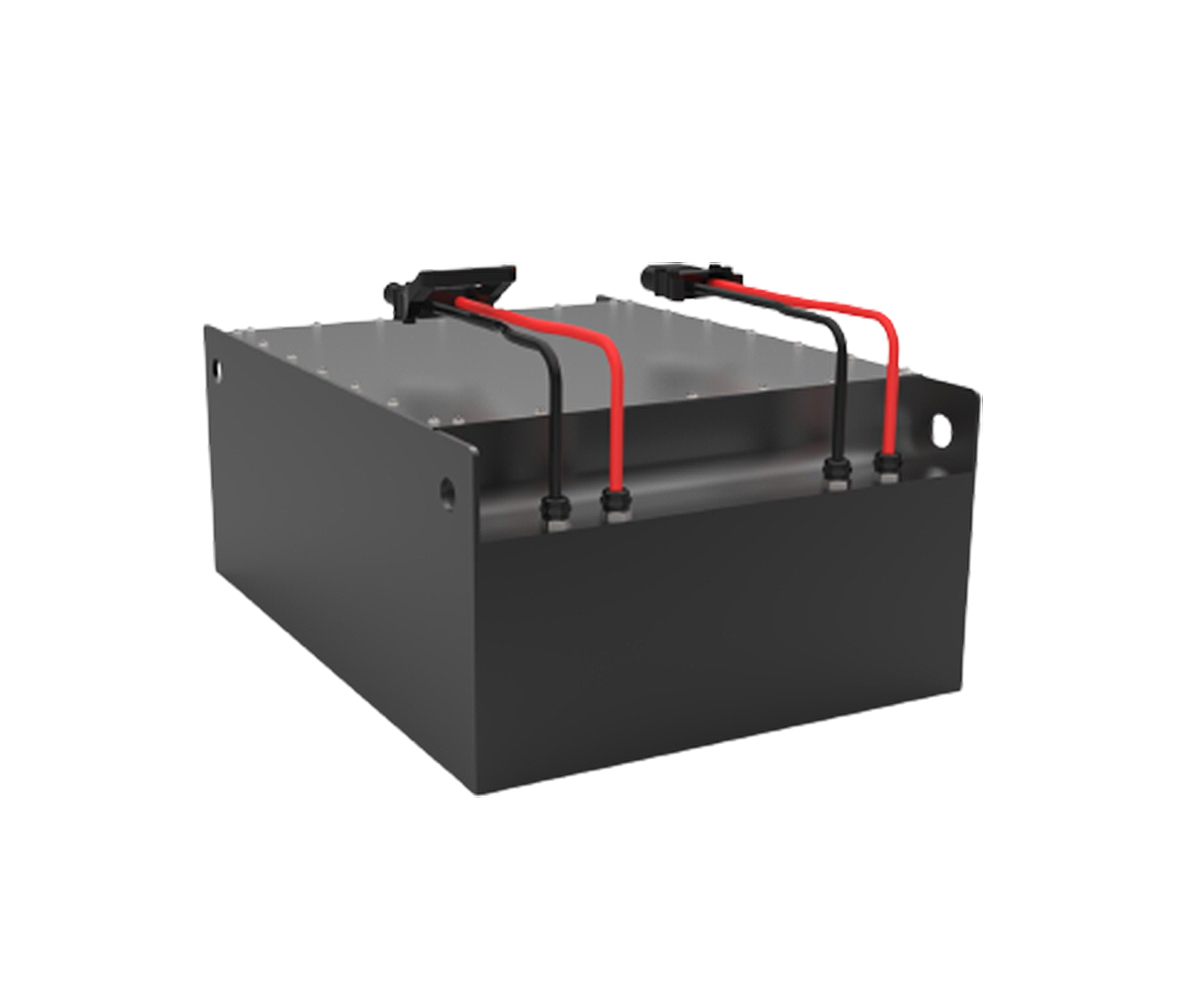

48V480Ah Lithium Battery System NCM 23.8Kwh High Cycle Life for Forklift Material Handling

ThinPack

China

Summary

48V480Ah Lithium Battery System NCM 23.8Kwh High Cycle Life for Forklift Material Handling – engineered for superior performance in material handling and robotics. Featuring a robust 50.4V nominal voltage, 480Ah capacity, and long-lasting 5,000-cycle life at 80% DOD, this advanced NCM lithium battery delivers fast charging, high energy density, and reliable operation in demanding industrial environments. Ideal for electric forklifts and automated guided vehicles (AGVs), replacing lead-acid and combustion-powered systems with zero emissions and minimal maintenance.More

Specifications

Battery chemical type:

NCM

Nominal capacity:

480Ah

Nominal voltage:

50.4V

INQUIRY

Parameters Description Download

48V480Ah lithium battery system for forklift

Our Project Overview

	Cell type	NCM-24Ah
Discharge data	Nominal voltage	50.4V
	Nominal capacity	480Ah	@25℃，±5%
	Voltage working range	35~58.8V
	Max constant charging current	250A
	Max peak charging current (10s)	600A
Charging data sheet	Nominal voltage	100.8V
	Nominal capacity	240Ah
	Voltage working range	70~117.6
	Max constant charging current	400	Customized.
Nominal energy (Kwh)		23.8
Weight (kg)		856
Dimension (mm)		825625625	(WDH)
Life cycle		5000times	@standard working state. 80%DOD
