Model | 30A | 40 A | 50 A | 60 A | 80 A | 100 A | ||||||

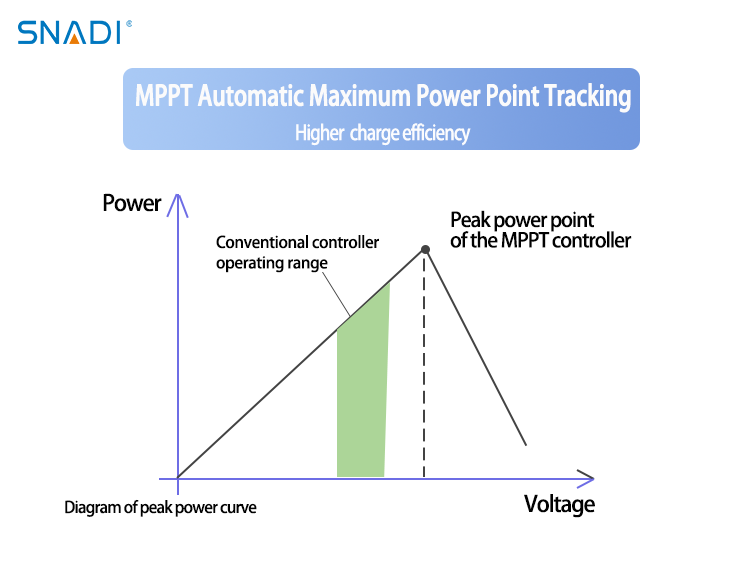

Charging Mode | MPPT Automatic Maximum Power Point Tracking | |||||||||||
Charging Method | Three stages : Constant Current ( MPPT), Balanced Charging, Floating Charge | |||||||||||
System Type | 12 V/ 24 V/ 48 V | Automatic Identification/ Manual Setting | ||||||||||
System Identification Voltage Range | 12 V System | DC 9 V- DC 15 V | ||||||||||
24 V System | DC 18 V- DC 30 V | |||||||||||
48 V System | DC 36 V- DC 60 V | |||||||||||
Soft Start Time | 12 V/ 24 V/ 48 V | ≤10 s | ||||||||||
Dynamic Response Recovery Time | 12 V/ 24 V/ 48 V | ≤500 us | ||||||||||
Static Power | 12 V/ 24 V/ 48 V | ≤2 W | ||||||||||
Machine Efficiency | 12 V/ 24 V/ 48 V | ≥96 . 5 % | ||||||||||
PV Module Utilization | 12 V/ 24 V/ 48 V | ≤99 . 97 % | ||||||||||
Input Characteristics | ||||||||||||
MPPT Operating Voltage Range | 12 V System | DC 18 V- DC 150 V | ||||||||||
24 V System | DC 34 V- DC 150 V | |||||||||||
48 V System | DC 65 V- DC 150 V | |||||||||||
Input Low Voltage Protection Point | 12 V System | DC 16 V | ||||||||||
24 V System | DC 30 V | |||||||||||
48 V System | DC 60 V | |||||||||||
Input Low Voltage Recovery Point | 12 V System | DC 18 V | ||||||||||
24 V System | DC 34 V | |||||||||||
48 V System | DC 65 V | |||||||||||
Limit Input Voltage | 12 V/ 24 V/ 48 V | DC 160 V | ||||||||||
Overvoltage Protection | 12 V/ 24 V/ 48 V | DC 150 V | ||||||||||
Overvoltage Recovery | 12 V/ 24 V/ 48 V | DC 145 V | ||||||||||
Maximum Solar Panel Input Power | 12 V System | 420W | 570W | 700W | 900W | 1100W | ||||||
24 V System | 840W | 1130W | 1400W | 1700W | 2200W | |||||||
48 V System | 1650W | 2270W | 2800W | 3400W | 4400W | |||||||
Output Characteristics | ||||||||||||
Optional Battery Type (Default is lead - acid maintenance- free battery) | 12 V/ 24 V/ 48 V | Lead- acid maintenance- free Battery, G e l Battery, Liquid Battery, Lithium Battery ( Can also be customized for other types of battery) | ||||||||||
