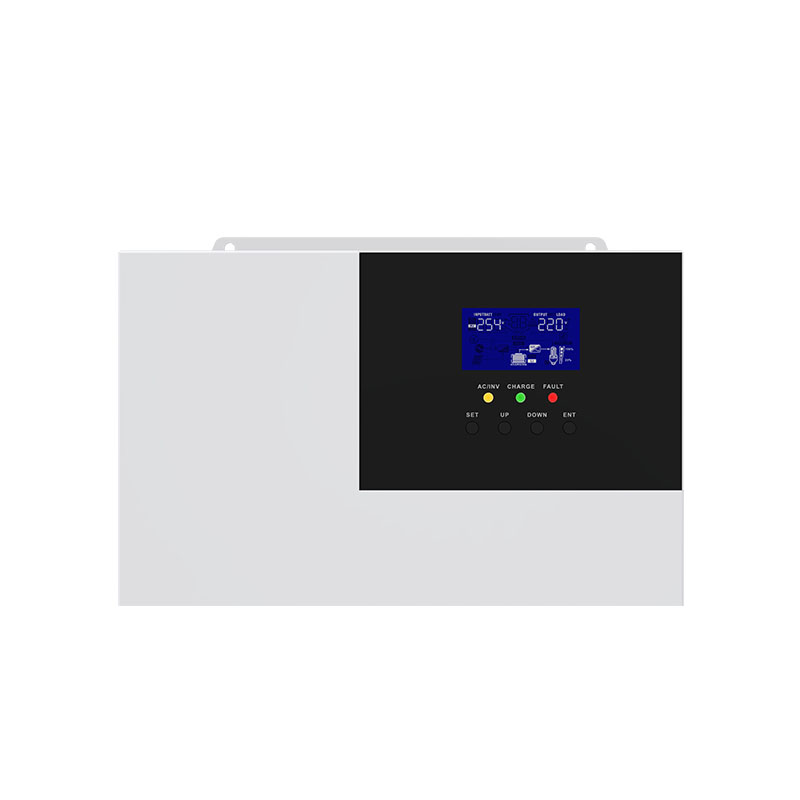

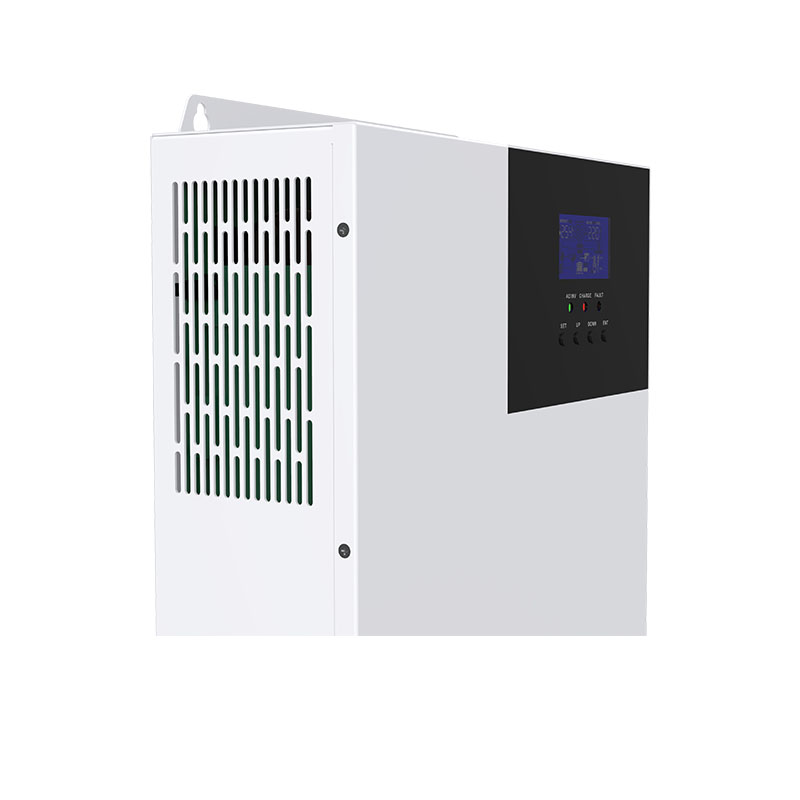

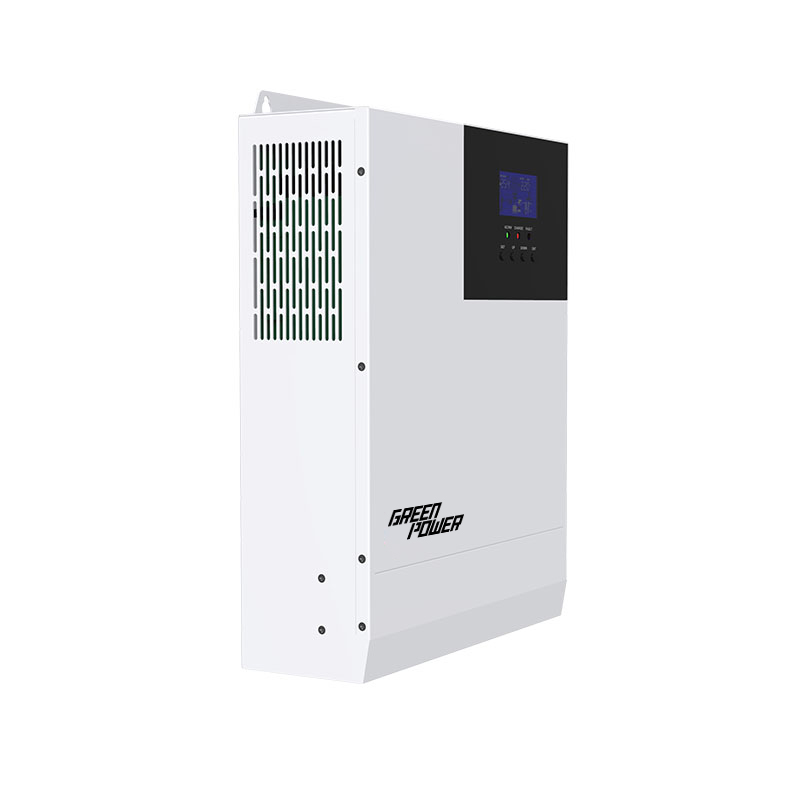

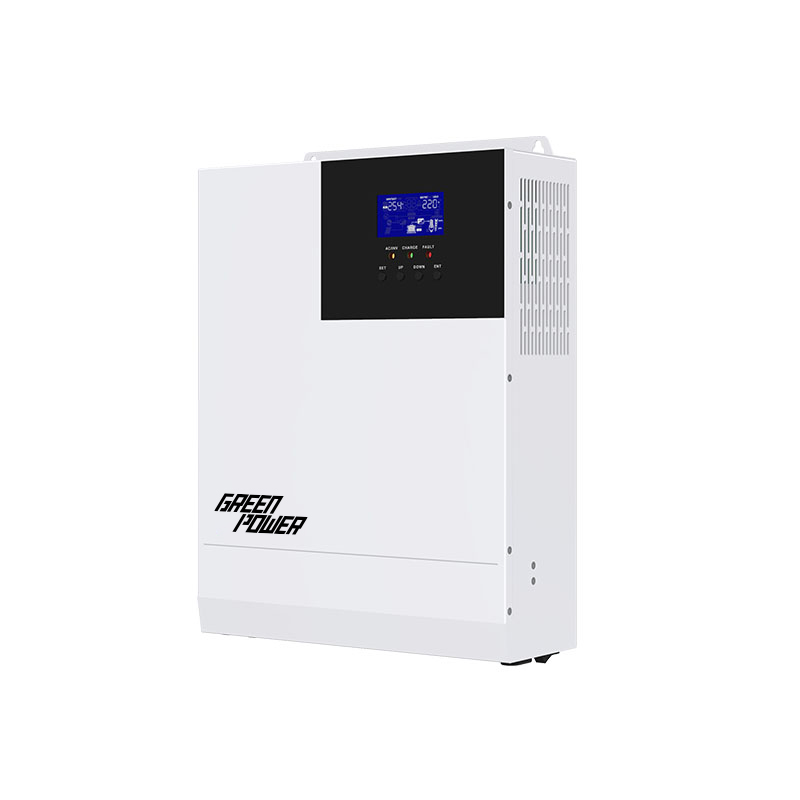

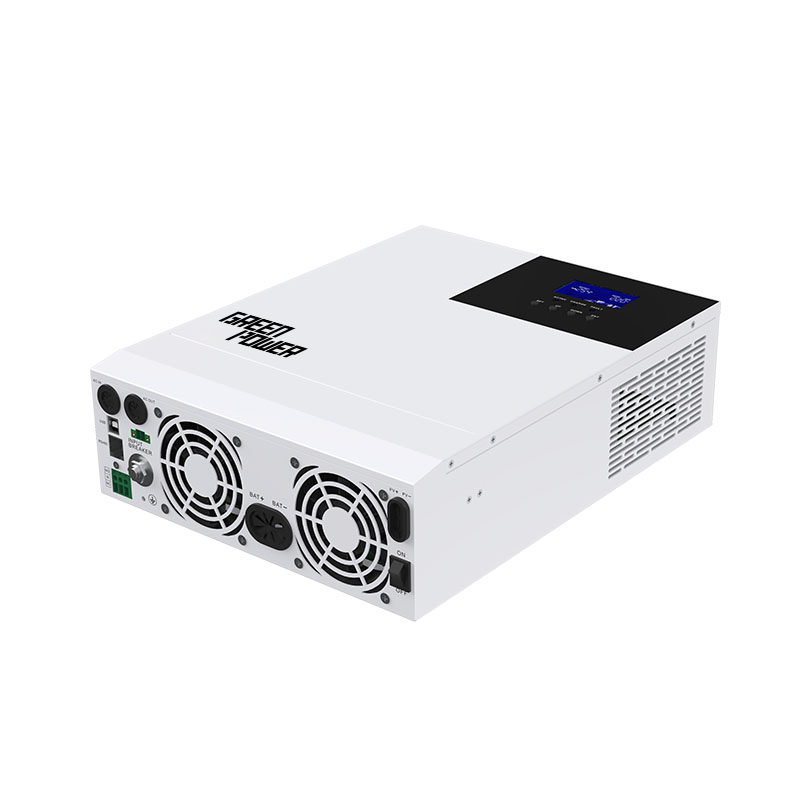

5.2KW Hybrid Solar Inverter Wave 5000 5000W Off-Grid On-Grid Solar Power System for Residential Commercial Application

5.2KW Hybrid Solar Inverter Feature

Automotive Grade LiFePO4 Cells

Up to 99.9% MPPT capture efficiency

Maximum 18A input current, adaptation to high power components.

Wave 5000,the 5KW Solar inverter comes with a lithium battery activation function and can support both lead-acid and lithium batteries

High Stability and Reliability

Four charging modes: including solar only, utility priority, solar priority, and hybrid charging.

Pure sine wave AC output via SPWM modulation

Simultaneous connection to utility grid/generator and PV(24/7 UPS).

An ON/OFF switch for controlling the AC output

Two output modes: utility bypass or inverter output, ensuring uninterrupted power supply.

User-Friendly

Two output modes: utility bypass or inverter output, ensuring uninterrupted power supply.

Power saving mode automatically reduces power consumption at zero-load

Intelligent adjustable speed fan for efficient heat dissipation, extend the lifespan of the system

Security Protection

Multiple safety protection functions from hardware to software UL / CE Certification.

Equipped with complete short circuit protection, under/over-voltage protection, overload protection, reverse protection, and other safety protection functions.

5.2KW Hybrid Solar Inverter Characteristic

5.2KW Hybrid Solar Inverter Electrical Parameters

Can Wave 5000 Inverter suitable for use in residential or commercial settings?

Yes, the Wave 5000 inverter is suitable for use in both residential and commercial settings. With a rated output power of 5000W and a maximum peak power of 10000VA, it is capable of powering a wide range of appliances and devices. Additionally, its pure sine wave output waveform ensures stable and clean power, making it suitable for sensitive electronics. The Wave 5000 inverter can be used as a backup power source during power outages or integrated with solar panels for a complete solar power system. Its versatility and reliability make it an excellent choice for both residential and commercial applications.

Can Wave 5000 inverter be used for Off-grid Applications?

Yes,the Wave 5000 inverter is suitable for both on-grid and off-grid applications. With its high max. MPPT charging current of 80A and battery compatibility with Li-ion, lead-acid, and user-defined batteries, it is capable of providing reliable power in off-grid situations. Additionally, its pure sine wave output waveform ensures clean and stable power for sensitive electronics.
