| Model | Wave 5000 Pro |
| INVERTER OUTPUT | |
| Rated Output Power | 5000W |
| Max.Peak Power | 10000VA |
| Rated Output Voltage | EU: 230Vac (L/N/PE single-phase) |
| US/JP: 120Vac (L/N/PE single-phase) | |
| Rated AC Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Switch Time | 10ms(Typical) |
| Parallel Capacity | 1-6 units (single/three phase) |
| BATTERY | |
| Battery Type | Li-ion / Lead-acid / user-define |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40 ?60Vdc |
| Max.MPPT Charging Current | 100A |
| Max.Mains/Generator Charging Current | EU: 60A US/JP: 40A |
| Max.Hybrid Charging Current | 100A |
| 100A | |
| PV INPUT | |
| Num. of MPP Trackers | 1 |
| Max.PV array power | 5500W |
| Max.input current | 22A |
| Max.Voltage of Open Circuit | 500Vdc |
| MPPT Voltage Range | 125 ?450Vdc |
| MPPT Tracking Efficiency | 99.90% |
| MAINS / GENERATOR INPUT | |
| Input Voltage Range | EU: 170~280Vac US/JP: 90~140Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 40A |
| GENERAL | |
| Dimensions | 446.9*350*133mm |
| Weight | 13kg |
| Protection Degree | IP20, Indoor Only |
| Operating Temperature Range | -15~55C |
| Communication Method | RS485 / CAN / USB / dry contact |
| Noise | <60dB |
| Cooling Method | Intelligent Fan |
| Warranty | 2 Years |
| CERTIFICATION | |
| Safety | CE (IEC62109-1) |
| CETL (UL 1741; CSA C22.2 No.107.1) CE (IEC62109-1) | |
| EMC | EN61000 |

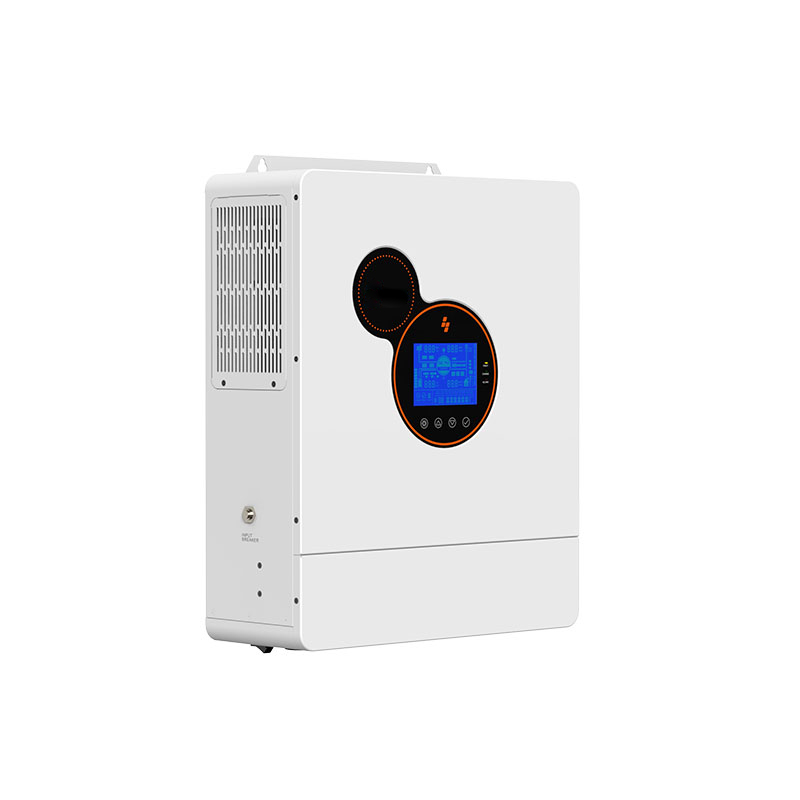

Wave 5000 Pro 5KW inverter is a high-performance inverter that can handle photovoltaic input, battery storage, and grid input, as well as support both single-phase and three-phase connections. However, it is more accurate to classify the 5.5KW Wave 5000 Pro as a hybrid solar inverter, rather than an all-in-one inverter. That’s because, in addition to its photovoltaic and grid inputs/outputs, it also includes battery storage capability, thereby enhancing the reliability and flexibility of energy systems. As a hybrid solar inverter, Wave 5000 Pro provides exceptional performance and flexibility for residential and commercial solar energy
A: The Wave 5000 Pro 5.5KW solar inverter can be connected in parallel with 1-6 units (single/three phase).
A: The maximum charging current for the battery of the Wave 5000 Pro 5.5KW solar inverter is 100A for both Max.MPPT Charging Current and Max.Hybrid Charging Current.
A: Yes, the Wave 5000 Pro 5.5KW solar inverter can be used the Wave 5000 Pro 5.5KW solar inverter can be used for both off-grid & on-grid applications. It is designed to be compatible with various grid-tie systems and a great choice for residential, commercial, and utility-scale applications.
A: The maximum PV array power that the Wave 5000 Pro 5.5KW solar inverter can handle is 5500W.
A: The Wave 5000 Pro 5.5KW solar inverter can operate within the temperature range of -15~55C.
A: The input voltage range for the mains/generator that the Wave 5000 Pro 5.5KW solar inverter can handle is EU: 170280Vac and US/JP: 90140Vac.
A: What type of batteries are compatible with the Wave 5000 Pro 5.5KW solar inverter?
A: The protection degree for the Wave 5000 Pro 5.5KW solar inverter is IP20, which means it is suitable for indoor use only.
A: The Wave 5000 Pro 5.5KW solar inverter operates with noise less than 60dB, which is relatively quiet but not completely silent.
A: The warranty period for the Wave 5000 Pro 5.5KW solar inverter is 2 years.
