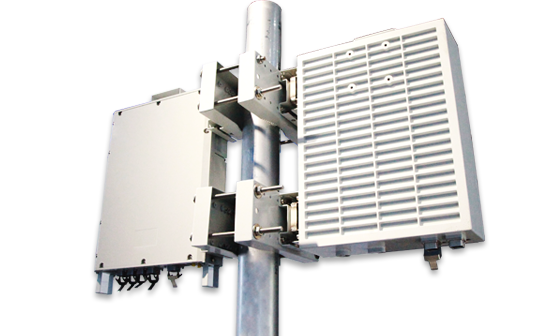

● Pole and wall mounting
● Easy to install and expand, flexible in power backup
● Flexible design, power unit and battery unit support modular expansion
● Communication Interface : RS485, Dry contact
● Protection class: IP65
● Outer casing: high strength aluminium alloy
● 10 minutes rapid deployment by one person
● Operating temperature range -40°C to +55°C
● Maintenance-free, natural cooling
Electrical Characteristics
Voltage Window :43.2～57.6V
Charge Voltage Range :56.0～57.6V
Max. Continuous Discharge Current :50A
Max. Continuous Charge Current :50A
Floating Charging Current :≤100mA
Charge Efficiency :≥97% (+25°C)
Communication Interface (Optional) :RS485, Dry contact
BMS Characteristics
SOC Calculation Accuracy:≤5%
Max. Quantity of Parallel Connection:10
Balanced Mode: Passive Balanced
Accuracy and Range of Temperature Acquisition:±1°C
Operation Environment
Charge Temperature:0°C to +45°C
Discharge Temperature:-40℃ to +55°C
Storage Temperature:–40°C to +55°C
Protection Class:IP65
Heat Dissipation Mode: Natural Cooling
| Battery Type | Nominal Voltage | Typical Capacity | Dimension(mm) | Approx. Weight(Kg) | |||
| Height | Width | Depth | |||||
 | 48V20Ah-5G | 48 | 20 | 430 | 340 | 130 | 19.3 |
| 48V50Ah-5G | 48 | 50 | 430 | 340 | 130 | 29.8 |
