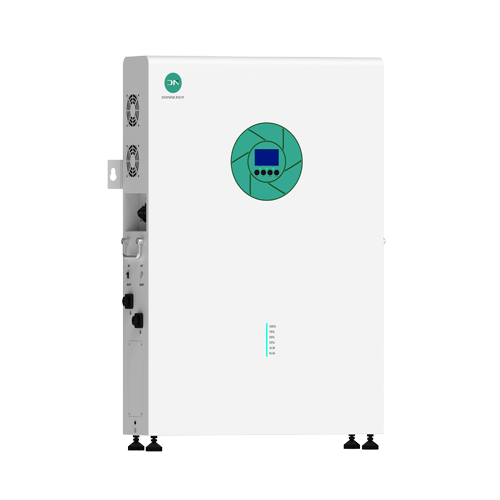

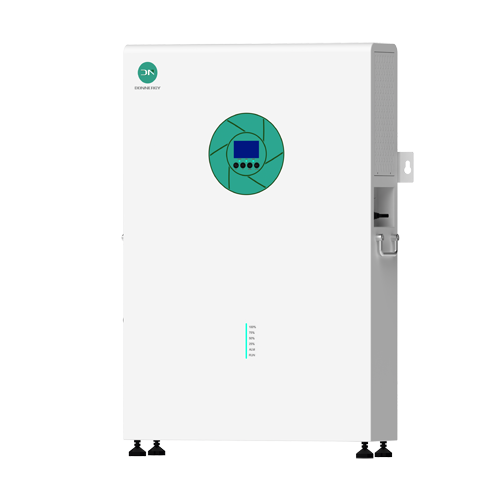

The Donnergy DOA01-5K_XFM5K-US is a 5KW 110/120Vac All In One Energy Storage System.
Pure sine wave inverter.
Configurable battery charging current based on applications via LCD setting.
Configurable AC/Solar Charger priority via LCD setting.
Compatible to mains voltage or generator power.
Auto restart while AC is recovering.
Overload/Over temperature/ short circuit protection.
Smart battery charger design for optimized battery performance.
| Model | DOA01-5K_XFM5K-US |
| Inverter | |
| Nominal input Voltage | 110/120Vac |
| Input Voltage Range | (90Vac~140Vac)±2% |
| Nominal input Frequency | 50Hz/60Hz (Auto detection) |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
| Low Loss Voltage | 90Vac±7V (Appliances) |
| Low Loss Return Voltage | 95Vac±7V (Appliances) |
| High Loss Voltage | 140Vac±7V |
| High Loss Return Voltage | 135Vac±7V |
| Max AC Input Voltage | 150Vac |
| Output Short Circuit Protection | Circuit Breaker |
| Max. Efficiency (Line Mode) | 92% |
| Maximum bypass overload current | 63A |
| Output Voltage Waveform | Pure sine Wave |
| Rated Output Power(W) | 5000W |
| PF | 1 |
| Output Voltage(Vac） | 120Vac±5% |
| Frequency(Hz) | 50Hz/60Hz |
| Peak Efficiency | 92% |
| Overload Protection | 0.2S@200%;5s@130% load;10s@105%~130% load; |
| Apparent power(VA) | 5000VA |
| Peak Power | 10000VA |
| Motor load capacity | 4HP |
| Output Short Circuit Protection | YES |
| Bypass breaker current | 63A |
| Rated battery voltage | 48V |
| Battery voltage range | 40.0Vdc~60Vdc±0.6Vdc |
| Save power mode | load≤50w |
| Max.Output current(A) | 41.7A |
| THDI | ＜3% |
| Battery | |
| Battery type | Lithium |
| Max. charging current | 40A |
| Charging current error range | ±5Adc |
| Charging Voltage range | 40-58.4Vdc |
| Short Circuit Protection | BMS/Breaker/fuse |
| MPPT Solar Charging | |
| Maximum PV Array Open Circuit Voltage | 500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| Battery voltage range | 40-60Vdc |
| Max. PV Array Power | 5500W |
| Max. PV input current | 22A |
| PV charging current range | 100A |
| Charging Short Circuit protection | fuse |
| Max, Combined charging current (PV+AC) | |
| Max. Combined charging current | 100A |
| Charging voltage | 58.4Vdc |
| General Specifications | |
| Operating Temperature Range | 0-55℃ |
| Storage temperature | -20-50℃ |
| Humidity | 5%-95% Relative Humidity(Non-condensing) |
| Noise | ≤60dB |
| Thermal Methods | Fan cooling |
| Communication | USB/CAN/RS232/WiFi |
| Dimension(L*W*H) | 676*173*937mm |
| Weight(kg) | 54kg |
