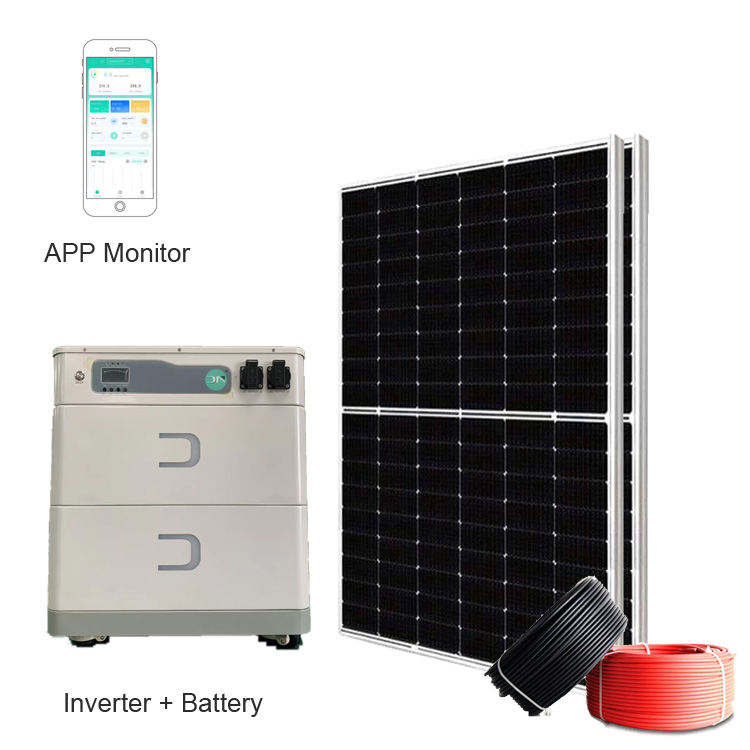

This solar power system include Integrated 5KW inverter and storage battery, built-in MPPT controller. Supports off-grid and UPS working modes, battery is stackable design, it is expand max to 30.72KWh.
Solar Panel is 410W, 37.23V length 1722mm，hight 1134mm, 21.5Kgs feature, and stronger resistance to hot spots and overheating, maintaining high reliability
It supports off grid hybrid modes, and is very suitable for off-grid power grids. It can provide stable power output for small fishponds, orchards, and breeding bases.
Rated Capacity (Ah): 100-600
Rated Energy (Wh): 5000-30000
Rated Power(W): 5000
Max. Efficiency: 93.6%
Communication with BMS: CAN
Communication with Portal: WiFi
Protection Level: IP20
Maximum power (Pmax/W): 410W
Dimensions: 1722 x 1134 x 30mm
Efficiency: 21%
Cell Type: Monocrystal 182
No. of Cells: 108(6×18)
Net Weight: 21.5Kgs
Open Circuit Voltage-Voc(V): 37.23
Short Circuit Current-lsc(A): 14.00
Maximum Power Voltage (Vmp/V): 30.95
Maximum Power Current (Imp/A) 13.25
Warranty: 10 Years
