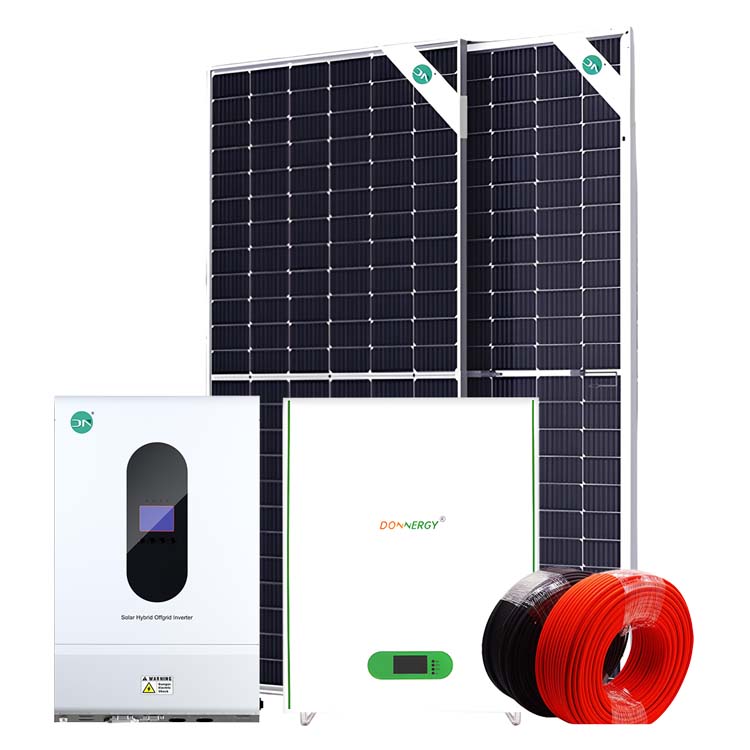

all-in-one system feature is 5KW Inverter Multiple operating modes, off grid and UPS, MPPT charger built in, Single Phase, 1 MPPT, 93.5% efficiency, 24V nominal battery voltage. Battery more than 6000 cycles, IP20 protection level, 90mm ultra-thin, easy install. Solar Panel is 410W, 37.23V length 1722mm，hight 1134mm, 21.5Kgs feature, and stronger resistance to hot spots and overheating, maintaining high reliability.
It supports off grid hybrid modes, and is very suitable for off-grid power grids. It can provide stable power output for small fishponds, orchards, and breeding bases.
Maximum power (Pmax/W): 410W
Dimensions: 1722 x 1134 x 30mm
Efficiency: 21%
Cell Type: Monocrystal 182
No. of Cells: 108(6×18)
Net Weight: 21.5Kgs
Open Circuit Voltage-Voc(V): 37.23
Short Circuit Current-lsc(A): 14.00
Maximum Power Voltage (Vmp/V): 30.95
Maximum Power Current (Imp/A) 13.25
Warranty: 10 Years
Rated Power (W): 5000
Nominal Battery Voltage (V): 48
Start-up Voltage (V): 150
Number of MPP Trackers: 1
Nominal Output Current (A): 21.7
Max. Efficiency: 93.6%
Dimensions (W × H × D mm): 300 x 485 x 120
Weight (kg): 9.5±0.5
Protection Level: IP20
Nominal energy: 5120Wh
Type: LiFePO4 Battery
Nominal capacity: 100Ah
Nominal voltage: 51.2V
Dimensions (W ×H × D mm): 660 x 830 x 190
Monitoring communication: CAN/RS485/RS232
Weight (kg): 52
Protection Level: IP20
Donnergy intelligent energy system support Dynamically adjust the source of energy use, give priority to off-grid mode and economic mode, and maximize economic benefits.
