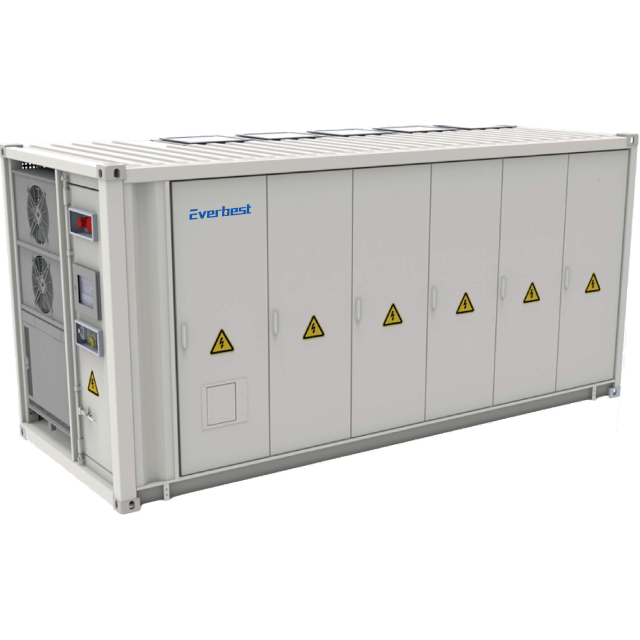

5MWh Liquid Cooled Energy Storage System LFP Battery 5015.9kWh 1331.2V for Grid-Side and New Energy Supporting

5MWh Liquid Cooled Energy Storage System LFP Battery 5015.9kWh 1331.2V for Grid-Side and New Energy Supporting

  • 5MWh Liquid Cooled Energy Storage System LFP Battery 5015.9kWh 1331.2V for Grid-Side and New Energy Supporting
  • 5MWh Liquid Cooled Energy Storage System LFP Battery 5015.9kWh 1331.2V for Grid-Side and New Energy Supporting
Summary
5MWh Liquid Cooled Energy Storage System with LFP battery technology delivers 5015.9kWh high-capacity energy storage, ideal for grid-side and new energy supporting applications. Featuring liquid cooling thermal management, 6000-cycle lifespan (80% EOL), ≤3℃ cell temperature uniformity, and >95% DC efficiency at 0.5P, this system ensures reliable, safe, and long-life performance. Certified to UL, IEC, GB, and UN 38.3 standards, it's engineered for thermal-storage co-frequency regulation, customer-side, and standalone energy storage projects worldwide.More
Specifications
Battery chemical type:
LFP
Cooling method:
Liquid Cooling
Rated energy:
5015.9kWh
  • 5MWh Liquid Cooled Energy Storage System LFP Battery 5015.9kWh 1331.2V for Grid-Side and New Energy Supporting


System parameter

  • Cell Type: LFP

  • Cell Specification: 3.2V/314Ah
  • Rated Rate:?0.25P/0.5P
  • Cycle Life: 6000 times(25℃, 80%EOL)
  • Temperature Difference Of Cells In PACK: ≤3℃
  • DC Side System Efficiency:?>95%(0.5P)
  • Thermal Management Method:?Liquid Cooling
  • Combination Method: 1P416S
  • Rated Energy: 5015.9kWh
  • Rated Voltage: 1331.2V
  • Dimensions(W*H*D): 2438*2896*6058mm
  • Weight: 42T
  • Applicable Scenarios: Thermal-storage Co-frequency Regulation, New Energy Supporting, Grid-side, Customer-side, Standalone Energy Storage
  • Standards & Certifications: GB / T36276-2023,UL 1973, UL9540A,IEC 62619,IEC 63056, IEC 61000(CE-EMC),IEC 62477-1(CE-LVD),UN 38.3
