1 3 times peak power, excellent loading capability.
2 Solar portable generator combine inverter/solar controller/battery all in one.
3 Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4 Working mode AC prior/ECO mode/Solar prior selectable.
5 AC charging current 0-30A selectable.
6 LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7 Adding fault code to monitor real-time work situations.
8 Continuous stable pure sine wave output with inbuilt AVR stabilizer.

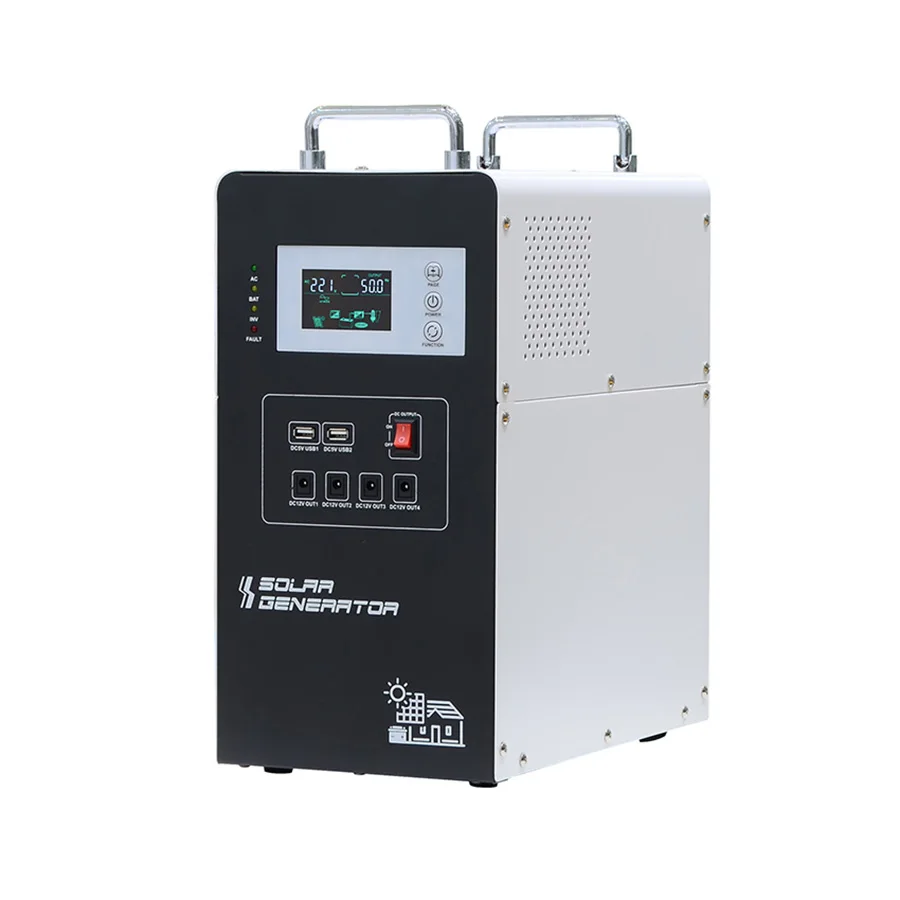

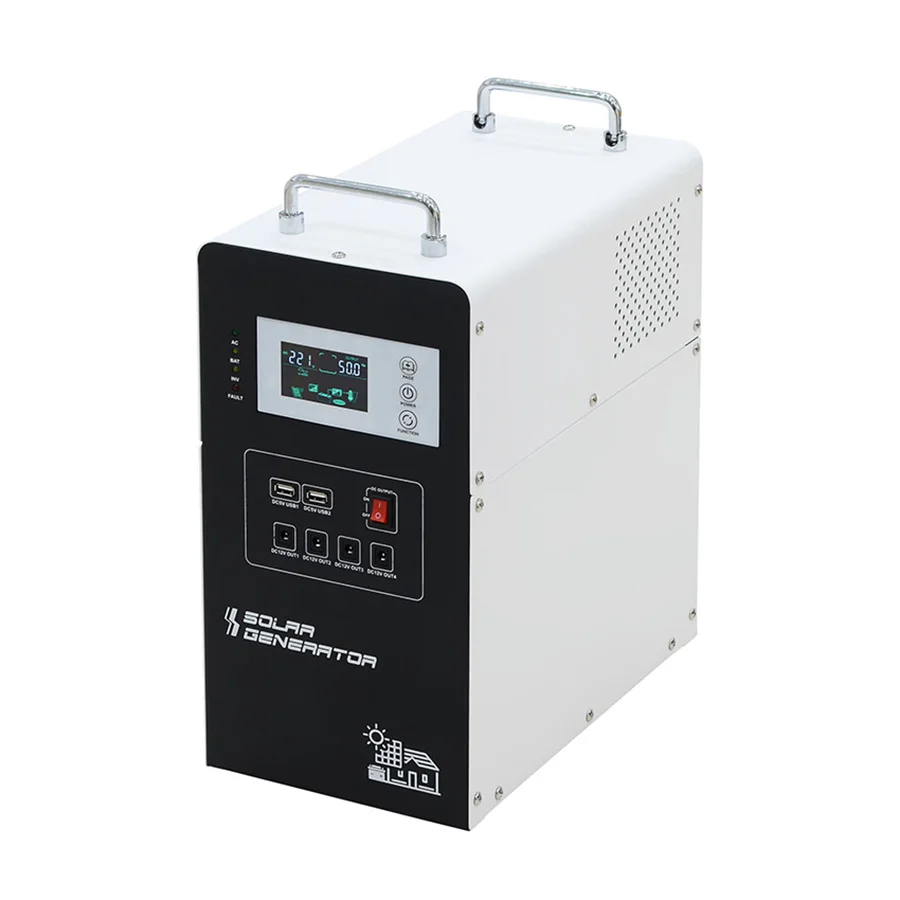

9 Digital LCD and LED for visualization of operation status of the equipment.
0 Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
| Specification | ||||||||||||||
| Model : ESS | 301P | 501P | 102P | 152P /W | 202P /W | 302P /W | 152P8/ W8 | 202P8/ W8 | 302P8/ W8 | 402P/W | 502P/W | 602P/W | 702P/W | |
| Capacity | Rated power | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| Peak power(20ms) | 900VA | 1500VA | 3000VA | 4500VA | 6000VA | 9000VA | 4500VA | 6000VA | 9000VA | 12KVA | 15KVA | 18KVA | 21KVA | |
| Input | Stardard battery voltage | 12VDC | 24VDC | 48VDC | ||||||||||
AC input voltage range | 73~138VAC(110VAC)/ 83~148VAC(120VAC)/ 145~275VAC (220VAC)/ 155~285VAC (230VAC)/ 165~295VAC(240VAC) | 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC) | ||||||||||||
AC input frequency range | 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) | |||||||||||||
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||||||||||||
AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) | |||||||||||||
AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||||||||||||
AC Output waveform | Pure Sine Wave | |||||||||||||
| THD | ≤3%(Linear load) | |||||||||||||
DC Output voltage | 4*DC 12V; 2*USB(5V) | 4*DC 12V; 4*USB(5V) | ||||||||||||
AC charger | AC charging current | 0~30A(Depends on model) | ||||||||||||
AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||||||||||||
| solar charger (Optional) | Charging mode | PWM | PWM/MPPT | |||||||||||
Max PV input voltage(Voc) temperature) | 50V | PWM: 50V; MPPT: 150V | PWM: 100V; MPPT: 150V | |||||||||||
PV input voltage range | 15V~44V | PWM: 30V~44V; MPPT: 30V~120V | PWM: 60V-88V; MPPT: 60V-120V | |||||||||||
Charge & discharge current | 20A | 40A | 60A | |||||||||||
Max PV input power | 280W | 560W | 1680W | 3360W | ||||||||||
| Inbuilt battery | Capacity | 1*50AH | 1*100AH | 2*200AH | 4*200AH | |||||||||
Battery size(LxWxH)/pcs | 229*138* 210 (228) | 407* 174* 210 (240) | 522*240*218(244) | |||||||||||
| Other | Transfer time | ≤4ms | ||||||||||||
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||||||||||||
| Display | LCD & LED | |||||||||||||
| Cooling way | Cooling fan in intelligent control | |||||||||||||
Communication (Optional) | RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported) | |||||||||||||
Working mode table) | d1 | AC priority mode | ||||||||||||
| d2 | ECO mode | |||||||||||||
| d3 | Solar priority mode | |||||||||||||
Work nment | Operating temperature | -10℃~40℃ | ||||||||||||
Storage temperature | -15℃~60℃ | |||||||||||||
| Elevation | 2000m(More than derating) | |||||||||||||
| Humidity | 0%~95% ,No condensation | |||||||||||||
| Physical | Dimention L x W x H(mm) | 358*192*390 | 488*232* 450 | 560*350*928 | 610*535*960 | |||||||||
Net weight(kg) (without battery) | 8 | 10 | 16 | 37 | 39 | 43 | 53 | 55 | 59 | 61 | 63 | 64 | 66 | |
| Packing | Dimention L x W x H(mm) | 400*252*500 | 550*295* 625 | 638*427*1063 | 688*612*1093 | |||||||||
Gross weight(kg) (without battery) | 11 | 13 | 21 | 47 | 49 | 53 | 68 | 70 | 74 | 76 | 78 | 79 | 81 | |
| Quantity/CTN | 1pcs per wooden case | |||||||||||||
We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the power grid and battery are connected to the generator inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via generator inverter. When the grid is cut off, the battery will automatically continue to supply power via generator inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the generator inverter’s rated power, there will be no output from the generator inverter. Only the chip of generator inverter is working. The power consumption of the generator inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the generator inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the power grid and battery are connected to the generator inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Package

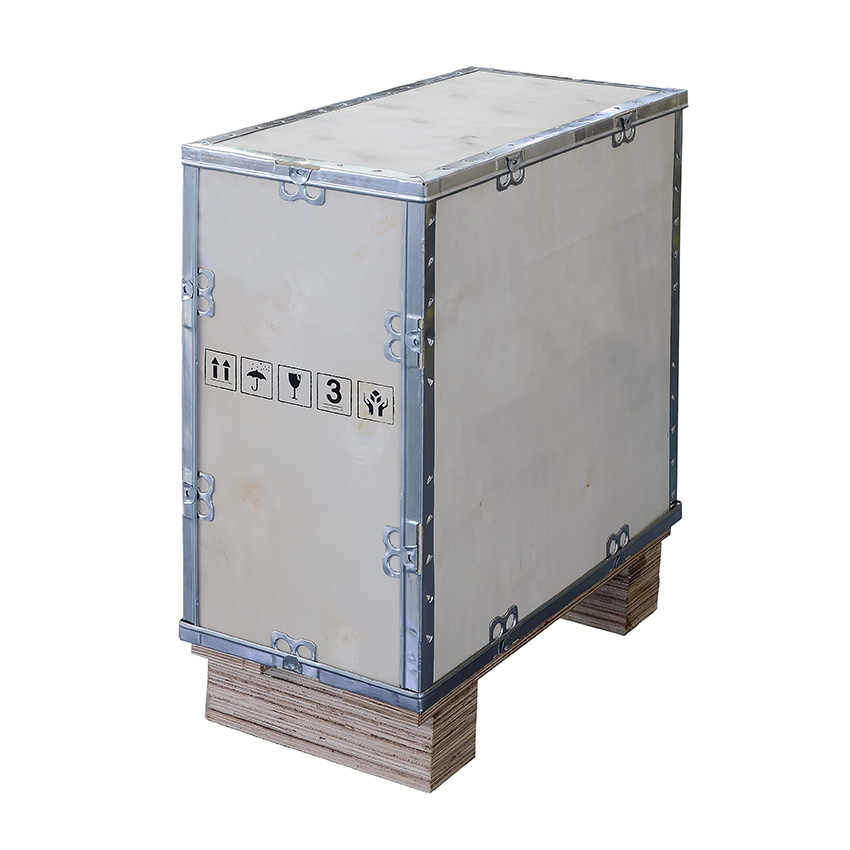

Wooden box advised for sample or wholesale goods to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
 |  |  | ||||
 |  |  | ||||
| Guangdong Xindun Power Technology Co.,Ltd | |
Factory Location | Foshan,Guangdong,China |
| Industry Experience | 15-year manufacturer, 16-year trading, 7-year alibaba gold supplier |
Product Range | pure sine wave inverter, hybrid solar inverter, ups power supply, solar charge controller, solar generator, solar power system solution, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 7000 Square Meters, 100+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO 14001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
Q1: Are you a factory?
A: Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. main products including inverters, solar charge controllers, solar generators, solar power system solutions.
Q2: Are you solar inverters pure sine wave output?
A: Yes, all of our solar inverters are pure sine wave output.
Q3: What kind of output you can do?
A: Normally, we produce inverters with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Our inverter can load home and camping appliances, other inductive load such as refrigerator, air condition, lighting, tv, etc.
Q5: How long is your factory?
It's over 14 years. at the beginning our factory focused on domestic market.
From 2012, we set up our oversea sales department.
Q6: What' s the difference between low frequency and high frequency inverter?
A: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
Q7: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
Q8: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
Q9: What to do if the product is broken?
A: Usually we do standard exporting package and insurance in case of broken. If any product is faulty, please send us the picture or video, we will study it and supply the spare parts of PCB board free for after sale service.
