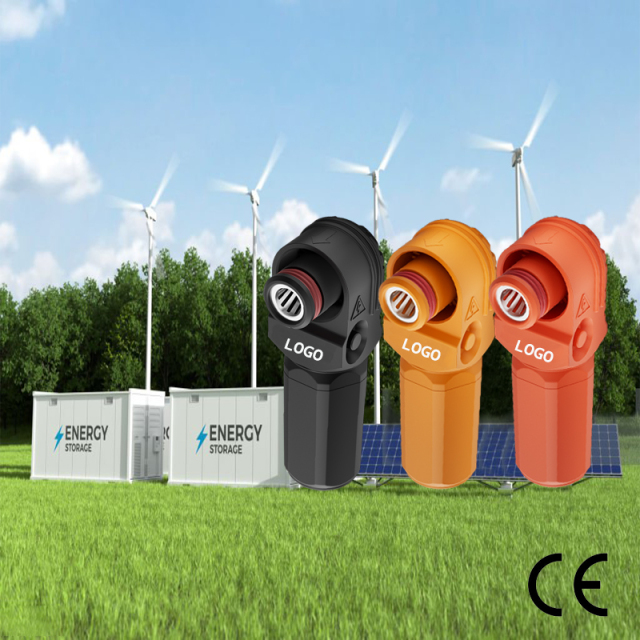

The 6.0mm ESS Connector is designed for high-performance energy storage systems, offering a 120A current rating to ensure consistent and reliable power transfer. Its right-angled design provides optimal space efficiency, making it ideal for installations in confined areas. This connector is compatible with 25mm2 cables, ensuring robust and secure energy transmission. Built with a durable orange housing and lath-machined terminals, the ESS Connector delivers long-lasting durability in high-demand environments. Perfect for energy storage and high-current applications, this connector is an essential component for dependable energy solutions.
Quick installation and connection: the design focuses on convenience, making the installation and removal process quick, reducing engineering time and costs.
Adaptable: Due to its specific dimensions and curved design, it provides a flexible connection solution in applications where space is limited or a specific bend path is required.
High reliability: in energy storage systems, these connectors ensure a stable connection even under vibration or frequent plugging and unplugging environments.
Safety: May have an anti-misplugging design to avoid the risk of misconnections in high-voltage, high-current applications.
Inside energy storage systems: for connections between battery modules, especially where a specific physical layout is required to optimize space utilization.
New Energy Vehicles: inside battery packs for electric vehicles, connecting battery cells and adapting to the compact space requirements inside the vehicle.
Industrial energy storage: in industrial-grade energy storage solutions, such as standby power systems, in scenarios requiring fast maintenance and replacement of battery modules.
Distributed energy systems: in the connection of energy storage units in solar or wind power stations, especially in commercial and industrial environments where flexible wiring and maintenance are required.
Portable Energy Storage: Although less common in small portable devices, its curved design may help optimize cable management in some large portable power systems.
Product Parameters | |
Rated Voltage | 1000V DC |
Rated Current | From 60A to 350A MAX |
Withstand Voltage | 2500V AC |
Insulation Resistance | ≥1000MΩ |
Cable Gauge | 10-120mm2 |
Connection Type | Terminal machine |
Mating Cycles | >500 |
IP Degree | IP67(Mated) |
Operating Temperature | -40℃~+105℃ |
Flammability Rating | UL94 V-0 |
Positions | 1pin |
Shell | PA66 |
Contacts | Cooper alloy,Silver plating |
