60S192V 50A high voltage BMS(HV BMS) smart BMS lifepo4 bms 15S BMU in series battery management system energy storage UPS BMS
GCE OEM High Voltage?60S192V 50A Relay Lifepo4 BMS Smart BMS with 15S BMU in Series battery management system energy storage UPS?Sistemas De Energia Solar Energy System?For ESS UPS Large scale ESS Container?BESS Micro Grid ESS Home ESS Carport ESS Overall Solution BMS Battery Management System
high voltage BMS(HV BMS)?Lifepo4 BMS Configuration:
Option 1:?
1set Master BMS, Model#: RBMS07-S23-50A192V
4 sets of 15S Slave BMU Model#: BMU08-15S8T48F
4sets of 15S Wire Harness
Option 2:
1set Master BMS, Model#: RBMS07-S23-50A192V
3 sets of 20S Slave BMU Model#: BMU07-20S8T12F
3sets of 20S Wire Harness
Option 3:
1set Master BMS, Model#: RBMS07-S23-50A192V
5 sets of 12S Slave BMU Model#: BMU08-12S8T48F
5 sets of 12S Wire Harness
Features:
? Multi-string management – for large-scale systems of parallel battery strings
? Battery system performance algorithms (SOC, SOHc, SOHr, power available, optimal charging)
? High voltage interlock loop monitoring and control
? Isolation resistance measurement
? Battery usage recorder
? Functional safety features protected by SafeRTOS
? Telematics – data collection

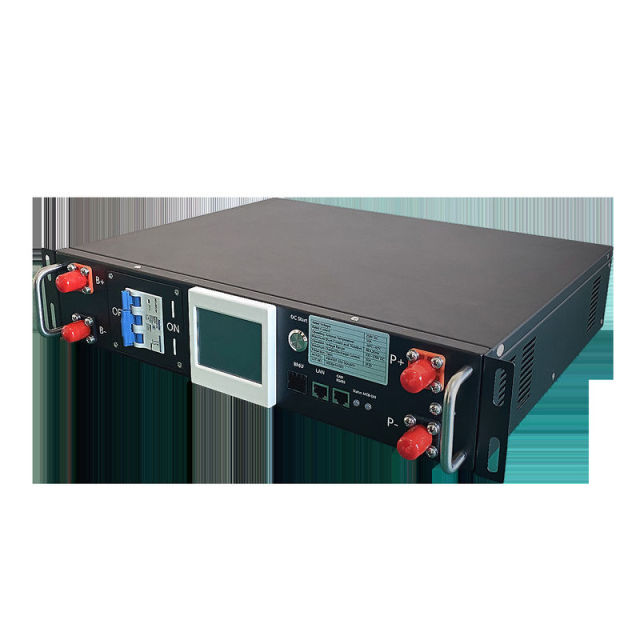

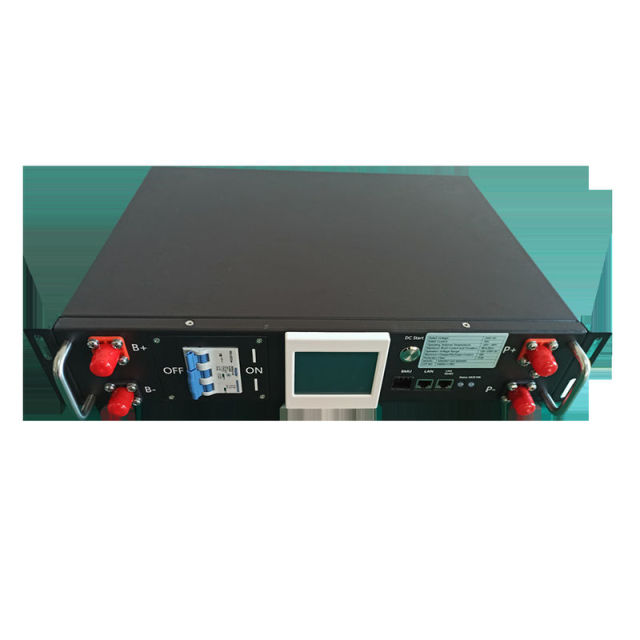

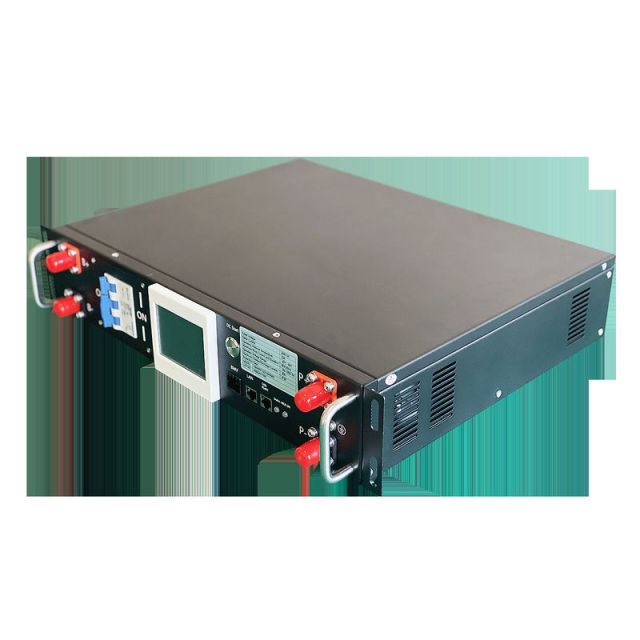

high voltage BMS(HV BMS) Master Lifepo4 BMS:?
high voltage BMS(HV BMS) Lifepo4 BMS Accessories:
| | |
12S-24S BMU(Slave)12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication | Wire harness-Signal acquisition wire18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm temperature sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm | Wire harness-communication wireCommunication wire is connecting from the master BMS to each BMU with a cascade connection, the last port is for terminal resistance |
high voltage BMS(HV BMS) Lifepo4 BMS Specification:
high voltage BMS(HV BMS) Lifepo4 BMS Related Products:
High Voltage?BMS Lifepo4 BMS Applications:
Linkage for downloading specifications for master BMS and slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS(HV BMS) info collection form EN2021-04.do...
Ideal for energy storage applications where high performance and high reliability are key to successful integration:
◎ Battery Energy Storage System(BESS)
◎ Off-grid energy storage
◎ Data Center
◎ Grid frequency modulation energy storage
◎ Track power/traction ◎ LFP UPS power supply
high voltage BMS(HV BMS) Lifepo4 BMS Contact information:
