Model | 8KW | 11KW | ||
Rated Power | 8000VA/8000W | 11000VA/11000W | ||

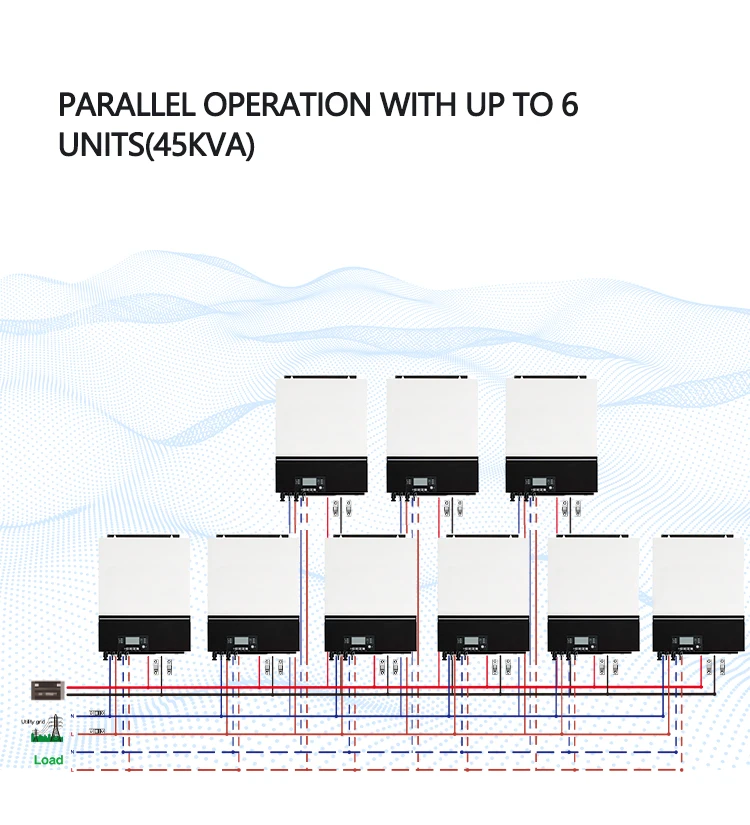

Parallel Capability | Yes, up to 6 units | |||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280 VAC(For Personal Computers ):90-280 VAC (For Home Appliances) | |||
Frequency Range | 50/60Hz(Auto sensing) | |||
OUTPUT | ||||
AC Voltage Ragulation (Batt. Mode) | 230VAC土5% | |||
Max Power | 8000W | 11000W | ||
Efficiency(Peak) | up to 93% | |||
Transfer Time | 10ms (For Personal Computers); 20ms(For Home Appliances) | |||
Waveform | Pure sine wave | |||
No Load Power Consumption | ＜70W | ＜85W | ||
DC Output | 12VDC+5%,100W | |||
BATTERY | ||||
Battery Voltage | 48 VDC | |||
Floating Charge Voltage | 54 VDC | |||
Overcharge Protection | 66 VDC | |||
SOLAR CHARGER & AC CHARGER | ||||
Solar Charger Type | MPPT | |||
Maximum PV Array Power | 8000W(4000WX2) | 11000W(5500WX2) | ||
MPPT Range @ Operating Voltage | 90~450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Solar Charge Current | 120A | 150A | ||
Maximum AC Charge Current | 120A | 150A | ||
Maximum Charge Current | 120A | 150A | ||
PHYSICAL | ||||

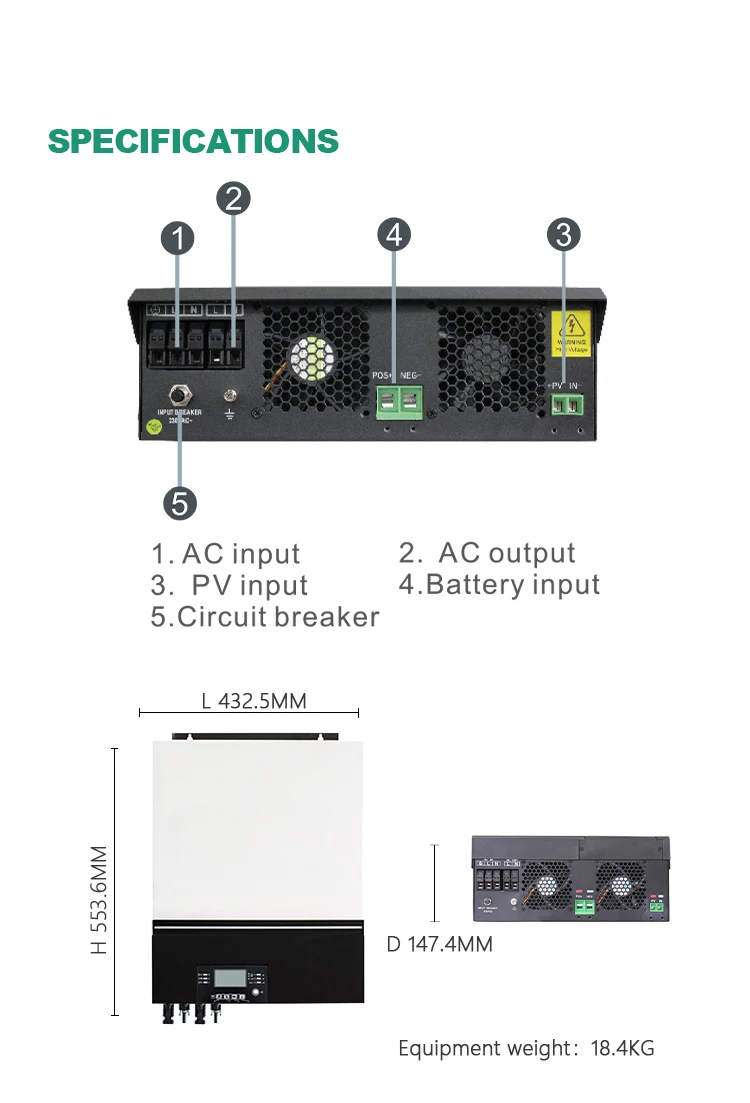

Dimension(LxWxH)mm | 147.4x432.5x553.6 | |||
Net Weight(kgs) | 18.4 | |||

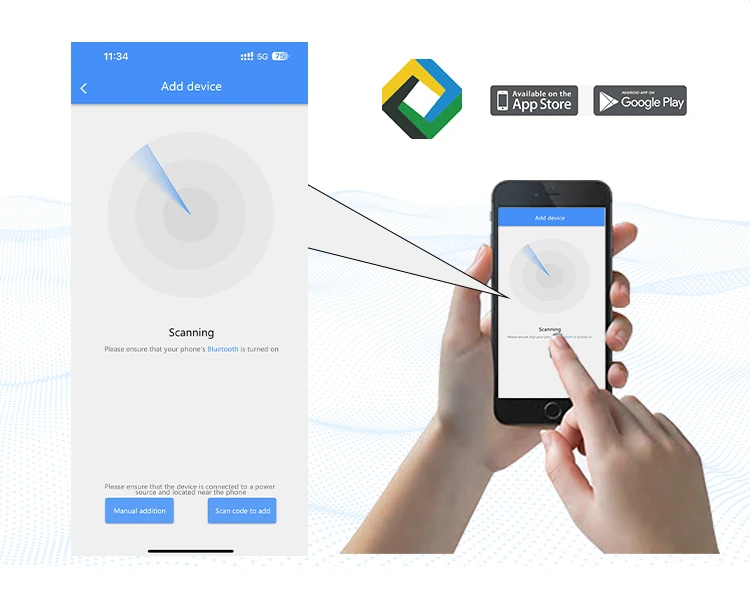

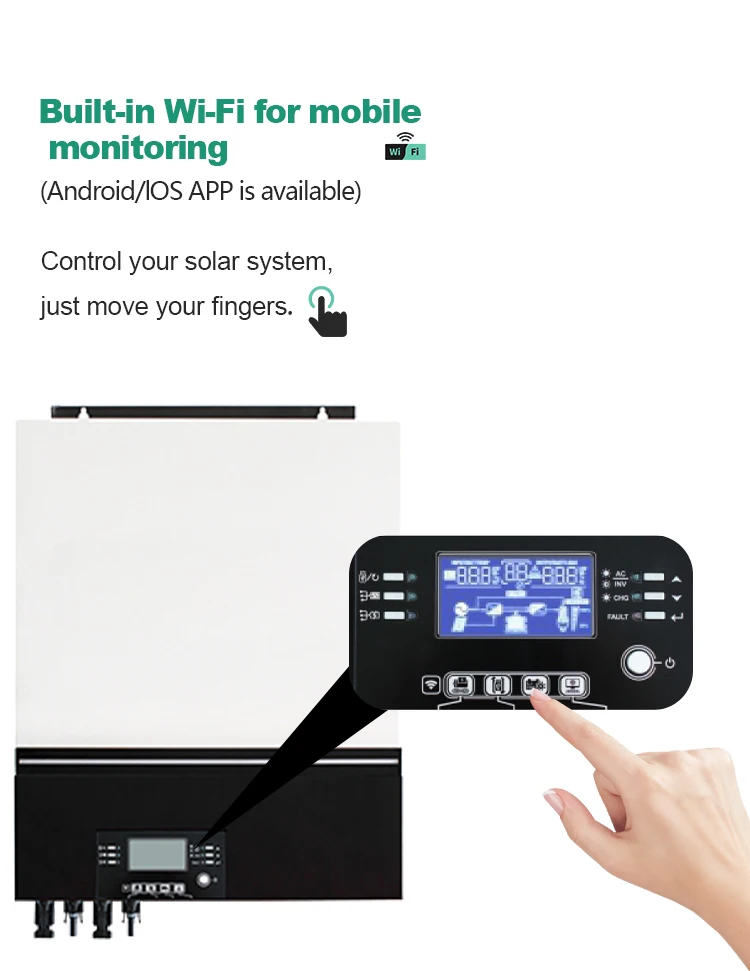

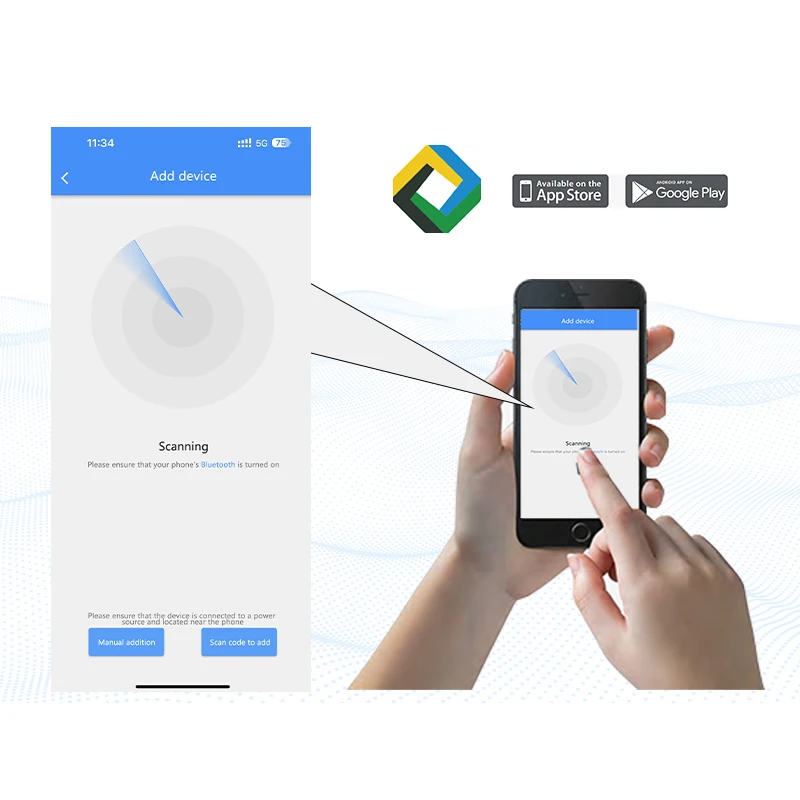

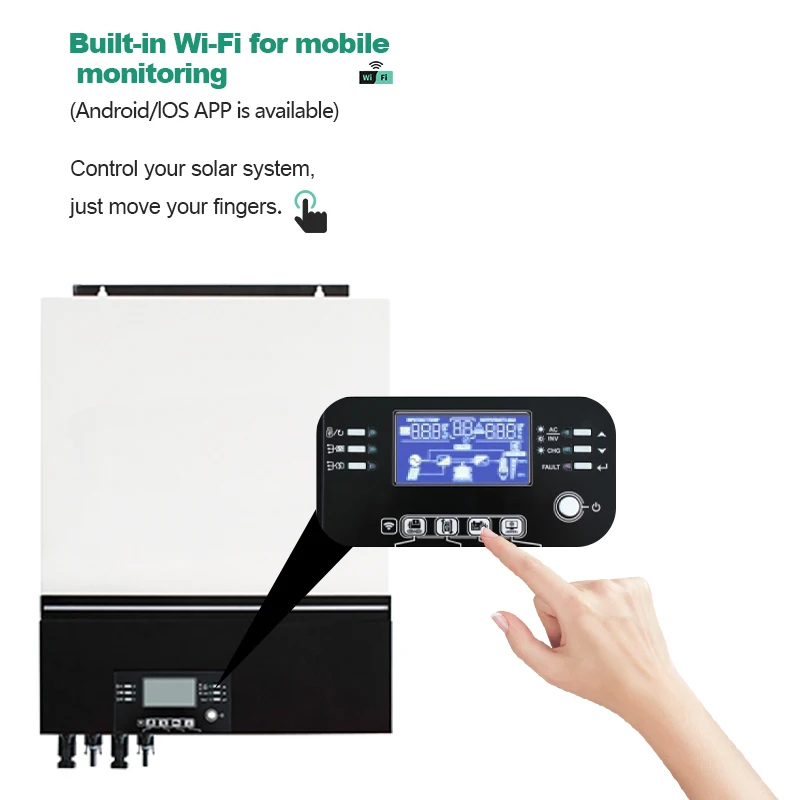

Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |||
ENVIROMENT | ||||
Humidity | 5-95% Relative Humidity(Non-condensing) | |||
Operating Temperature | -10°C to 50°C | |||
Storage Temperature | -15°C to 60°C | |||
STANDARD | ||||
Compliance Safety | CE | |||
