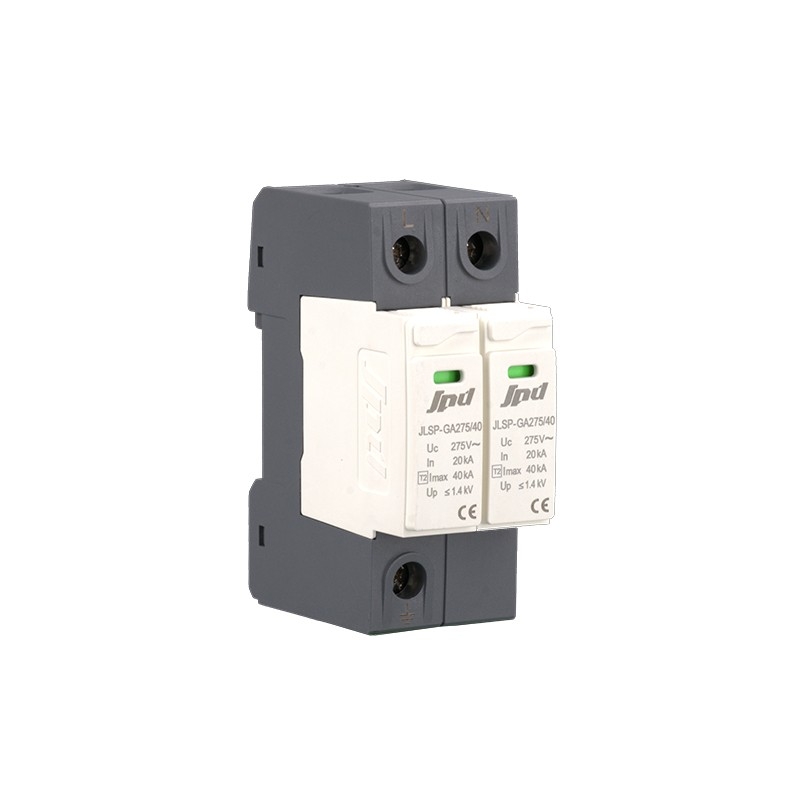

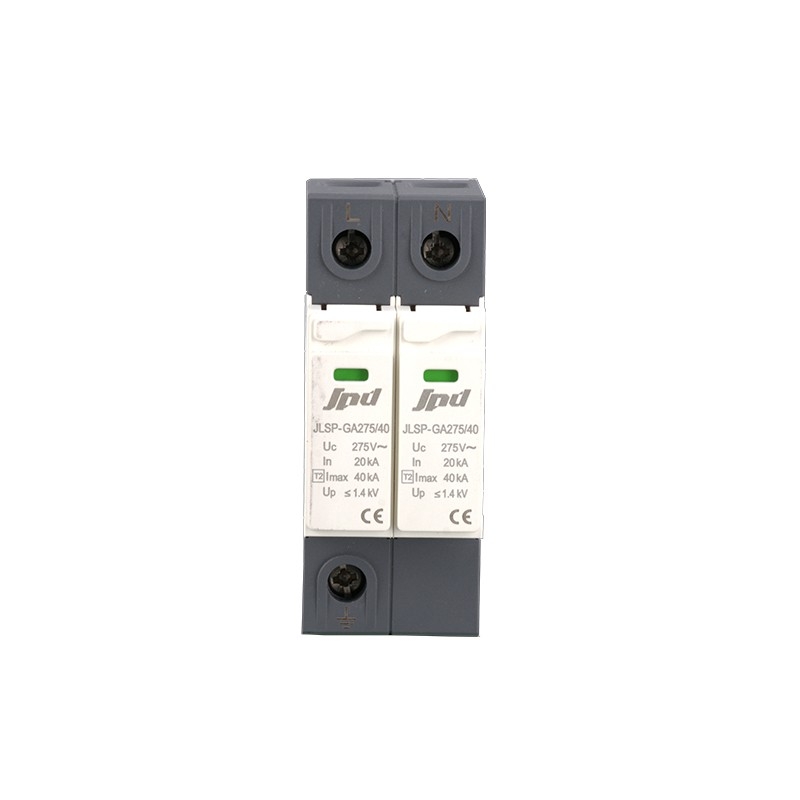

Type 2 AC SPD 1P, 2P, 3P, 4P 40kA 230V 275V
AC powersurge protective device is used in AC power supply system (50/60Hz) and low-voltage control system to protect from lightning striker and transient over-voltage. The maximum operating voltage (Uc): 175V, 275V, 350V, 385V, 440V, 420V 485V and 750V.
Standard compliance: IEC61643-11, EN61643-11
IEC 61643-11 Surge protective devices connected to low-voltage power distribution systems -Part 11: Performance requirements and testing methods
Features:
* Reliable thermal tripping protection
* Status indicator: Green(normal) Red（Defect）
* Fast response: action within nanosecond

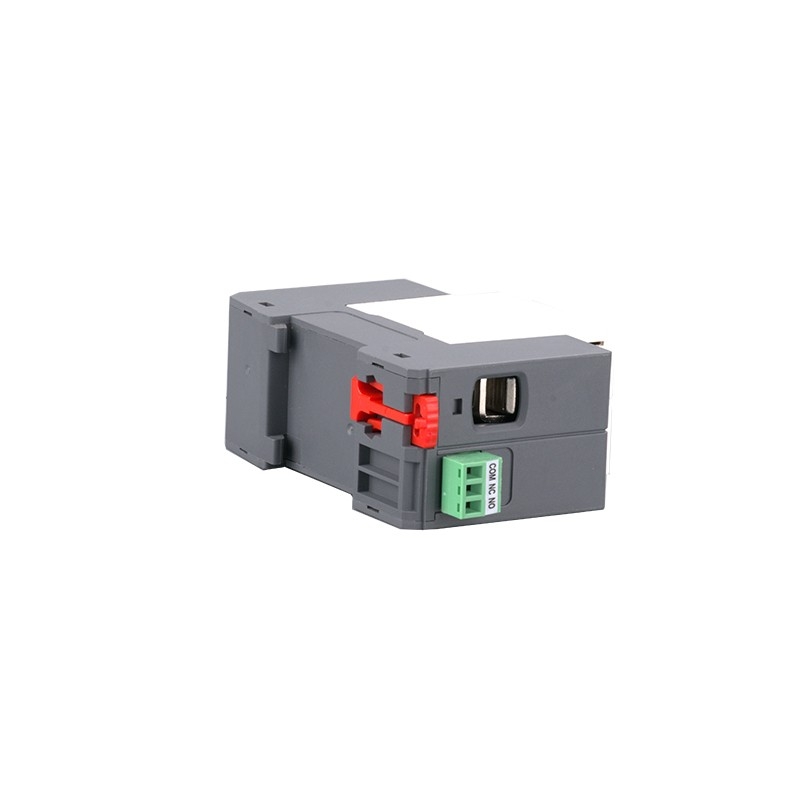

* Optional remote signaling
* Pluggable design, easy to mount
* Latest reflow soldering process, ensure product consistency
Model | JLSP-GA275/40/1P, 2P, 3P, 4P |
Descrpition | Type 2 AC surge protector |
Network | 202,230,102/208V (TN/TT/IT) |
Max. AC operating voltage (Uc) | 275V |
Nominal discharge current In(kA) | 20kA |
Max. Discharge current Imax (kA) | 40kA |
Protection level Up (kV) | ≦1.4kV |
Dimensions | 72*90*62MM |
Protection rating | IP 20 |
Response time?tA (ns) | ≦25 |
Oeprating temperature | -40/+85℃ |
Mounting | DIN Rail 35mm |
Housing material | Thermoplastic UL94-V0 |
Standards compliance | IEC64643-11, GB/T18802.11 |
