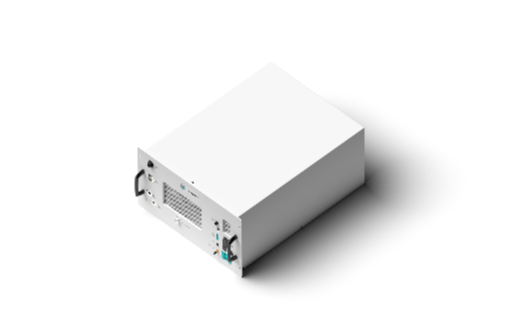

AEM Electrolyser EL4.1 500 NL/h Hydrogen Production 35 Barg Output Pressure for Industrial Hydrogen Generation

AEM Electrolyser EL4.1 500 NL/h Hydrogen Production 35 Barg Output Pressure for Industrial Hydrogen Generation

WOLONG Group 1984 China
  • AEM Electrolyser EL4.1 500 NL/h Hydrogen Production 35 Barg Output Pressure for Industrial Hydrogen Generation
  • AEM Electrolyser EL4.1 500 NL/h Hydrogen Production 35 Barg Output Pressure for Industrial Hydrogen Generation
Summary
The AEM Electrolyser EL4.1 is a high-performance hydrogen generation solution designed for industrial applications, offering a hydrogen production rate of 500 NL/h (1.0785 kg/24 h) and an output pressure of up to 35 barg. Featuring a modular design and advanced software integration, this electrolyser enables rapid setup, seamless scalability, and remote management for optimized operational efficiency. With low nominal power consumption of 4.8 kWh/Nm3 at beginning of life, the EL4.1 ensures energy-efficient electrolysis for sustainable hydrogen production in renewable energy systems.More
Specifications
H? Production rate:
500 NL/h(1.0785 kg/24 h)
Output pressure:
Up to 35 barg (Up to 507.63 psig)
Nominal power consumption per Nm3 of H? produced:
4.8 kWh/Nm3, beginning of life
  • AEM Electrolyser EL4.1 500 NL/h Hydrogen Production 35 Barg Output Pressure for Industrial Hydrogen Generation
Specification parameter
H? Production rate
500 NL/h(1.0785 kg/24 h)
Output pressure
Up to 35 barg (Up to 507.63 psig)
Nominal power consumption per Nm3 of H? produced
4.8 kWh/Nm3, beginning of life
Operative power consumption
2.4 kW, beginning of life
Power supply
208 – 240 V (AC), 50/60 Hz, both split phase and 3-phase
Water input pressure range
1 – 4 barg (14.5 – 58 psig)
